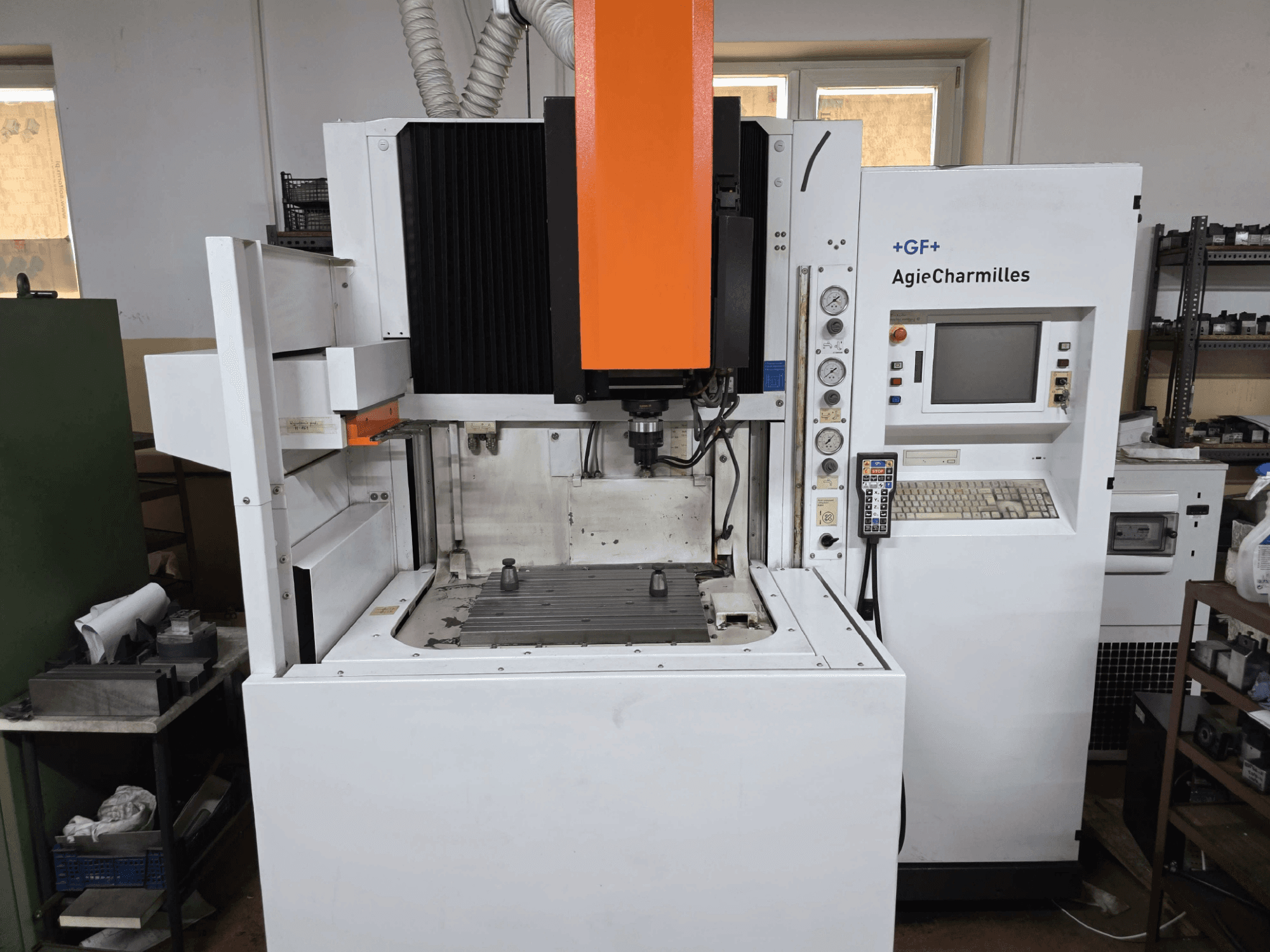

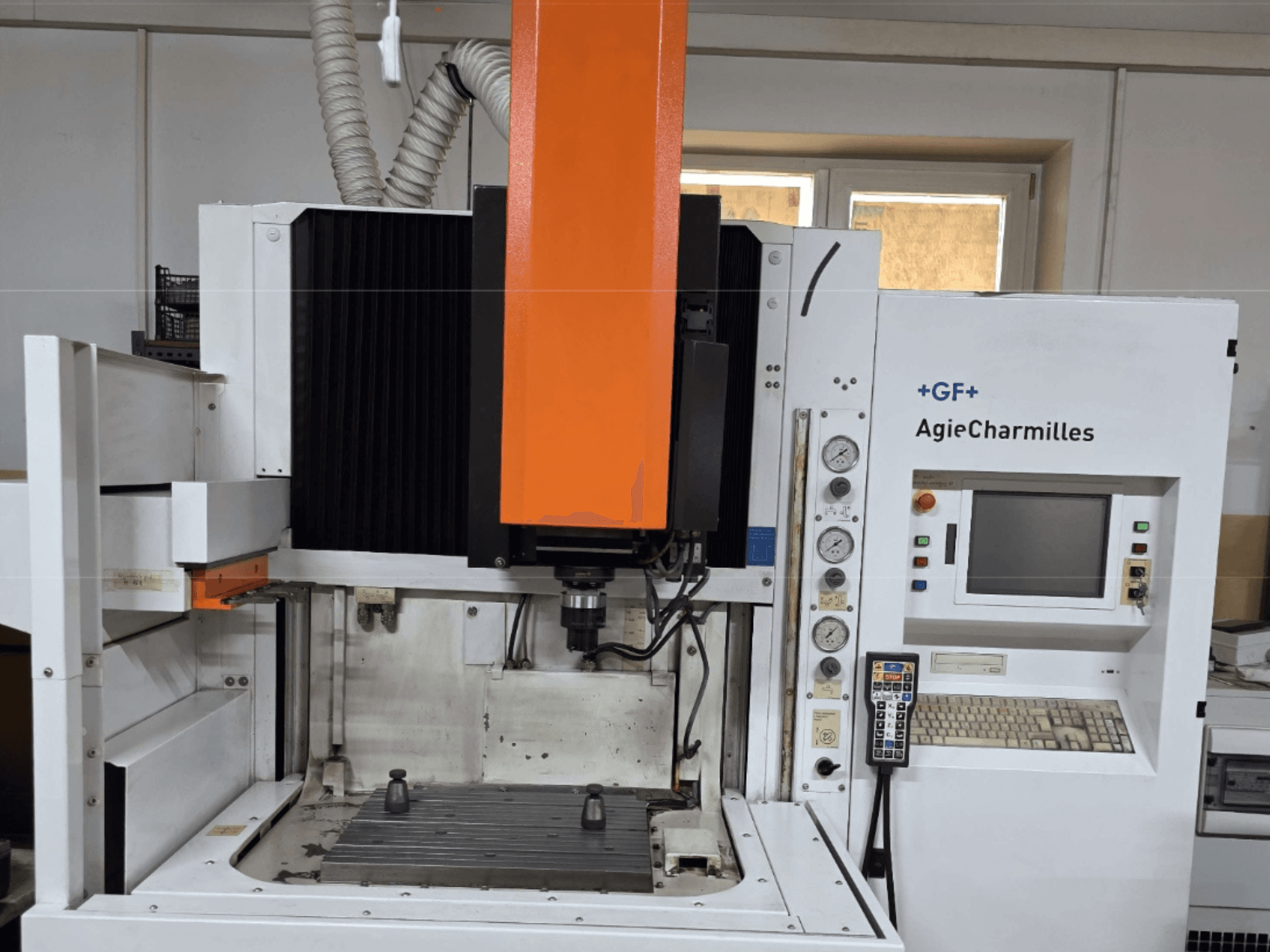

This 4-axis +GF+ AgieCharmilles FO 350SP die-sinking EDM machine was manufactured in 2013. It features a stable EDM generator, a fully operational 360° C-axis with a rotational speed of 100 rpm, and a substantial work area of 800 × 550 × 370 mm. Well-maintained and operational until its last day, consider the opportunity to buy this +GF+ AgieCharmilles FO 350SP die-sinking EDM machine. Contact us for more information about this machine.
Overview
- brand: +GF+
- year: 2013
- MODEL: AgieCharmilles FO 350SP
- application type: EDM
- Location: Poland
- machine type: Die-Sinking EDM Machine
Technical Information - +GF+ AgieCharmilles FO 350SP
Dimensions
- Machine Weight: 2270 kg
Movement
- Number of Axes: 4
- X-axis Travel: 350 mm
- Y-axis Travel: 250 mm
- Z-axis Travel: 300 mm
Additional Information
Power supply: 3-phase, 380 V / 400 V
Power consumption: 6 kVA
Mains frequency: 50 / 60 Hz
Axes and travels:
C-axis travel: 360°
C-axis rotational speed: 100 rpm
Work area:
Overall work area: 800 × 550 × 370 mm
Working area size: 500 × 400 mm
Technical condition:
Fully operational; ran until last day of operation
Stable EDM generator with clean, repeatable pulses
Working area in good condition; guides without play
Operator panel, keyboard, and hand pendant function properly
Well maintained; not used in heavy production
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
