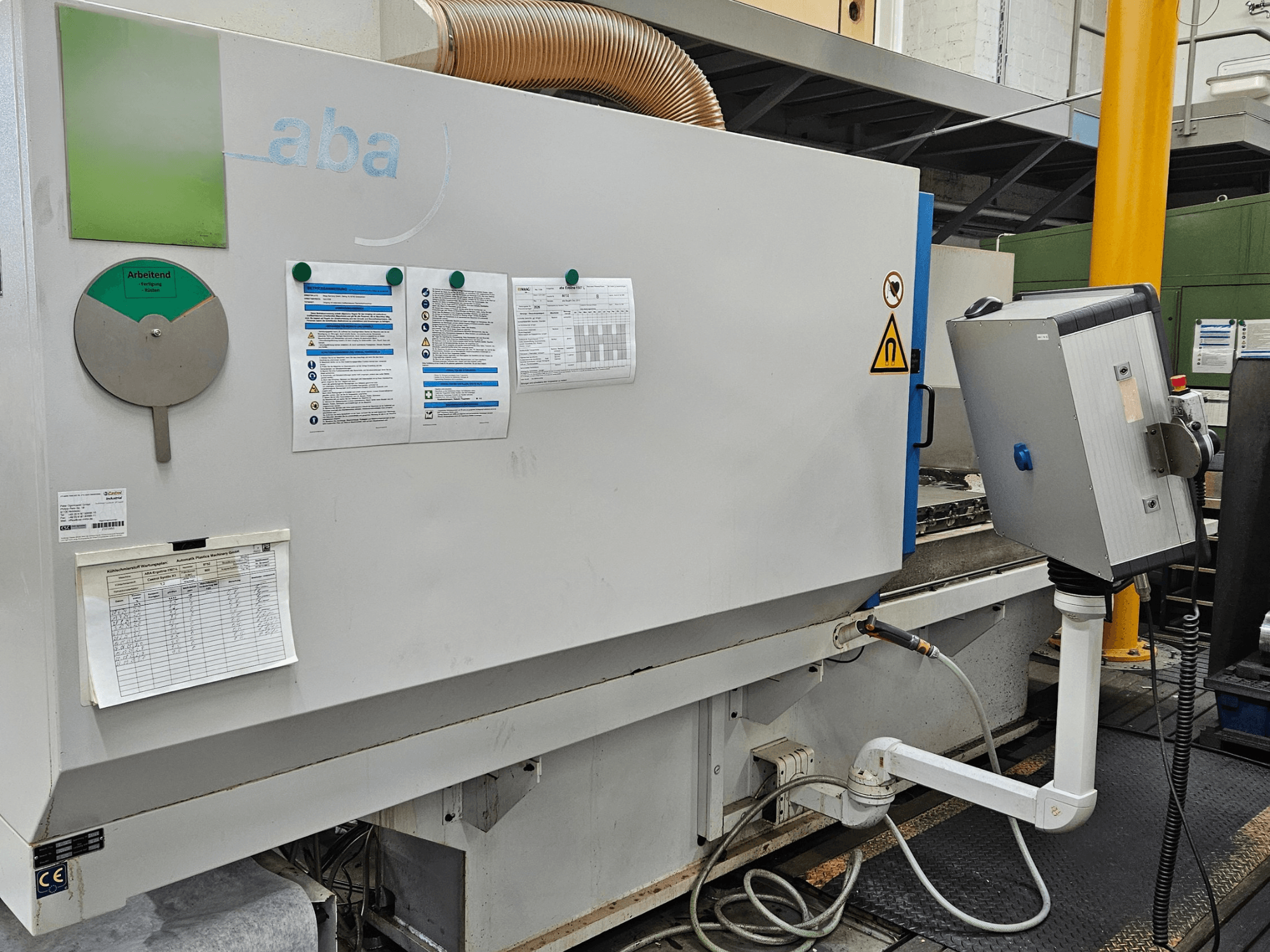

This 3-axis ABA ECOLINE 1507 surface grinding machine was manufactured in 2010. It features a maximum grinding length of 1500 mm and a grinding width of 800 mm, with a robust table load capacity of 1500 kg. The machine is equipped with a Siemens SINUMERIK control unit and offers impressive feed speeds of up to 60,000 mm/min for the worktable. If you are looking to get high-quality grinding capabilities, consider the ABA ECOLINE 1507 machine we have for sale. Contact us for further details.
Overview
- brand: ABA
- year: 2010
- MODEL: ECOLINE 1507
- application type: Grinding
- Location: Germany
- machine type: Surface Grinding Machine
- control unit brand: SIEMENS
Technical Information - ABA ECOLINE 1507
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK
Dimensions
- Machine Weight: 7700 kg
- Table Load: 1500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1500 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 700 mm
Technical Specification
- Spindle Speed: 2600 RPM
Additional Information
Max. grinding length: 1500 mm
Max. grinding width: 800 mm
Distance table–spindle center: 700 mm
Tool holder: 1x grinding wheel holder
Max. feed speed grinding spindle: 2600 mm/min
Max. feed speed worktable: 60,000 mm/min
Voltage: 3 x 400 V
Total power: 90 kVA
Additional equipment
Magnetic table (included)
Paper band filter BF200 (not included)
Mechanical extraction LTA (not included)
Note: As stated, no accessories are included except for the magnetic table.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
