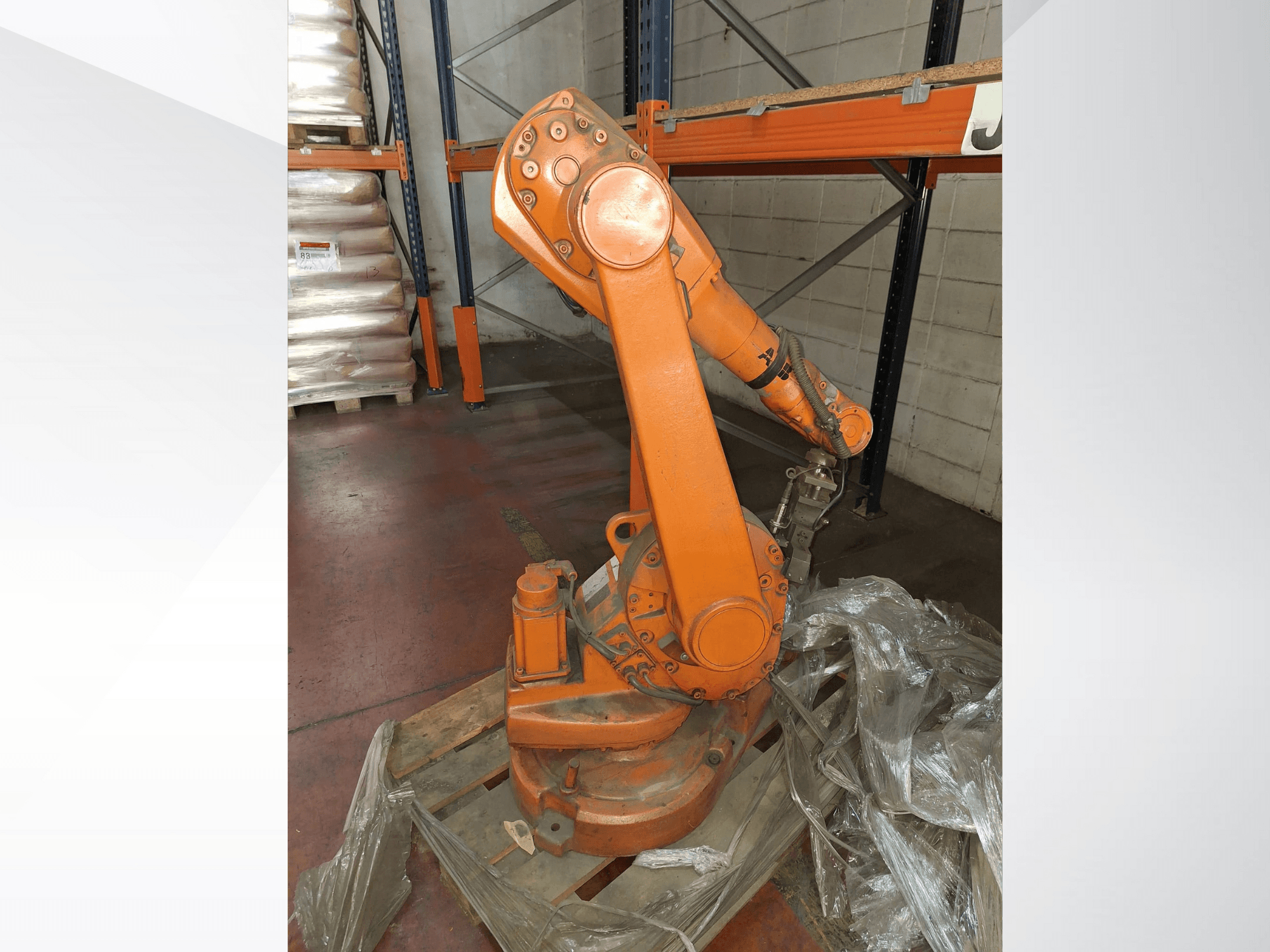

Industrial robotic arm in orange, front view on wooden pallet, with attached cable and protective plastic wrap around base.
Industrial robotic arm in orange, front view on wooden pallet, with attached cable and protective plastic wrap around base.

ABB - IRB 1600ES-ROB-ABB-2010-00001

15,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 6-axis ABB IRB 1600 robot arm was manufactured in 2010. It features versatile mounting options including floor, wall, and inverted setups, and is compatible with IRC5 and OmniCore controllers. With a maximum arm load of 30.5 kg and a reach of up to 1.45 m, it's ideal for a variety of applications. Consider the opportunity to buy this ABB IRB 1600 robot arm. Contact us for more information about this machine.

Overview

  • brand: ABB
  • year: 2010
  • MODEL: IRB 1600
  • application type: Robotics
  • Location: Spain
  • machine type: Robot Arm

Technical Information - ABB IRB 1600

Dimensions

  • Machine Height: 1294 mm
  • Machine Weight: 250 kg

Movement

  • Number of Axes: 6

Additional Information

  • Type: 6-axis industrial robot (supports up to 3 external axes via MultiMove; max 36 axes)

  • Maximum payload: 30.5 kg (with 1.2 m reach) / 20.5 kg (with 1.45 m reach)

  • Protection class: IP54 standard; IP67 optional (Foundry Plus)

  • Mounting options: floor, wall, shelf, tilted, inverted

  • Controller compatibility: IRC5 (Single, Dual, Compact), OmniCore (C30, C90XT, V250XT, V400XT)

  • Axis ranges:

    • Axis 1: ±180°

    • Axis 2: +136° / –63° (1.2 m) or +150° / –90° (1.45 m)

    • Axis 3: +55° / –235° (1.2 m) or +65° / –245° (1.45 m)

    • Axis 4: ±200° (default), max ±190° revolution

    • Axis 5: ±115°

    • Axis 6: ±400° (default), max ±288° revolution

  • Repeatability:

    • Position repeatability (RP): 0.02 mm (6 kg) / 0.02–0.05 mm (10 kg)

    • Path repeatability (RT): 0.06–0.19 mm

  • Maximum joint speeds:

    • Axis 1: 150–180°/s

    • Axis 2: 160–180°/s

    • Axis 3: 170–185°/s

    • Axis 4: 320–385°/s

    • Axis 5: 400°/s

    • Axis 6: 460°/s

  • Wrist torque: Axis 4 & 5 ≈ 8.58 Nm; Axis 6 ≈ 4.91 Nm

  • Electrical: 200–600 V, 50/60 Hz; max power consumption 0.58 kW

  • Dimensions: Base 484 × 648 mm

  • Height: 1069 mm (1.2 m reach version) / 1294 mm (1.45 m reach version)

  • Operating temperature: +5 °C to +45 °C

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
