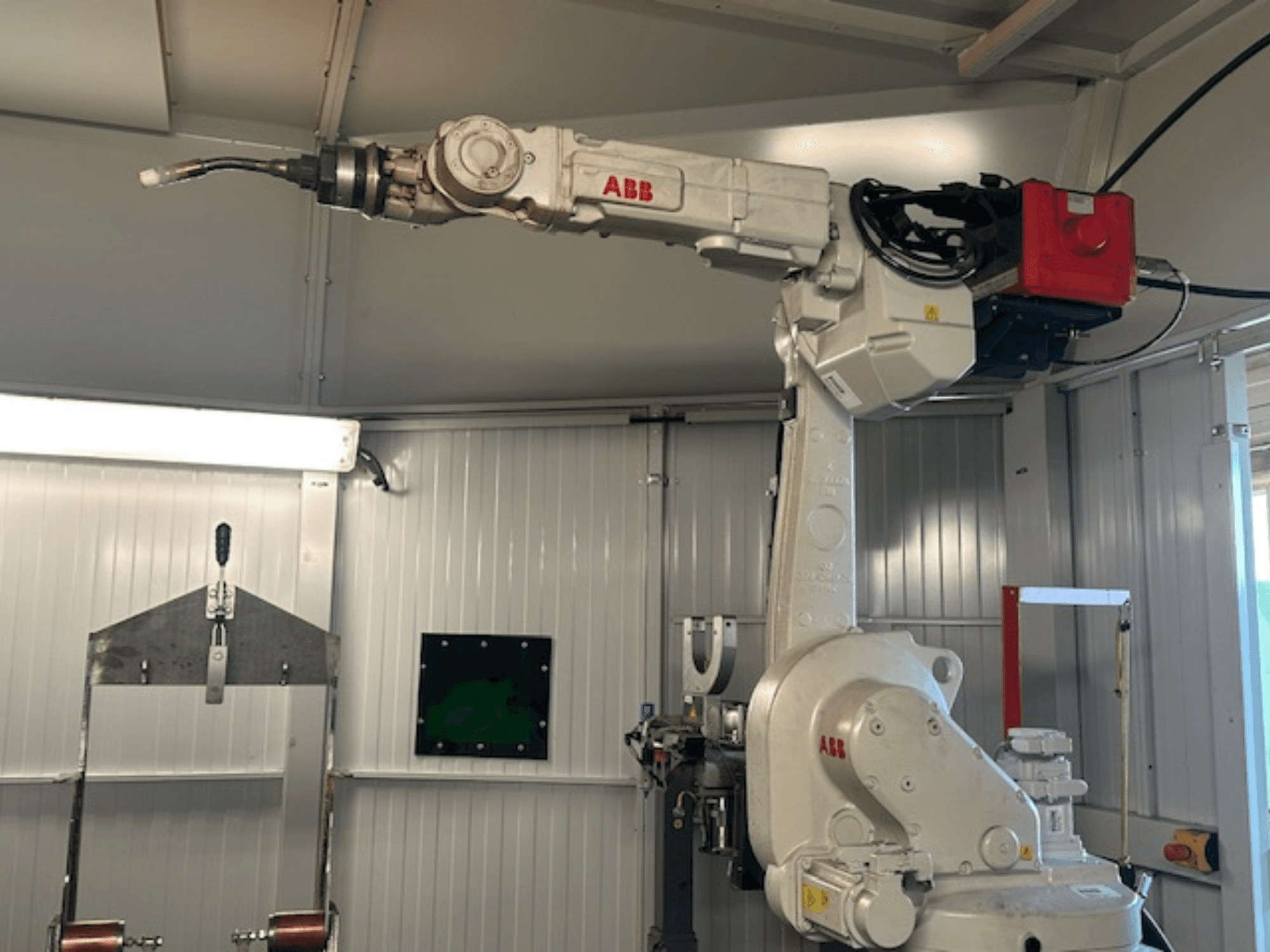

ABB Schweißroboter Flex Arc – side view of robotic arm with welding tool, showcasing details like control panel and cables.
ABB Schweißroboter Flex Arc – side view of robotic arm with welding tool, showcasing details like control panel and cables.

ABB - Schweißroboter Flex ArcDE-ROB-ABB-2019-00001

74,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 6-axis ABB Schweißroboter Flex Arc was manufactured in 2019. It features a robust IRB 1660ID-6/1.55 robot type and a positioner with a payload capacity of 250 kg. The machine operates at a power consumption of 22 kVA and includes advanced safety features such as a vertical light curtain and integrated safety PLC. If you are looking to get high-quality welding capabilities, consider the ABB Schweißroboter Flex Arc robot arm we have for sale. Contact us for further details.

Overview

  • brand: ABB
  • year: 2019
  • MODEL: Schweißroboter Flex Arc
  • application type: Robotics
  • Location: Germany
  • machine type: Robot Arm

Technical Information - ABB Schweißroboter Flex Arc

Dimensions

  • Machine Weight: 5000 kg

Movement

  • Number of Axes: 6

Additional Information

  • Supply voltage: 400 V

  • Phases: 3 Ph

  • Frequency: 50 Hz

  • Power consumption: 22 kVA

  • Duty cycle: 100%

  • Pre-fuse max: 3x63 A

  • Control voltage: 24 V

  • Air pressure: 6 bar

Additional equipment

  • Robot: IRB 1660ID-6/1.55 (quantity: 1)

    • Robot pedestal: 1,000 mm

    • Robot additional options: PC Interface

  • Controller: IRC5 Single

    • Controller voltage: 3x400 V

    • Controller frequency: 50–60 Hz

    • Controller rated current: 7 A

    • Controller short-circuit rating: 10 kA

    • Controller net weight: 150 kg

  • Positioner: B-500

    • Payload: 250 kg (according to IRBP product specification)

    • Diameter: 1,000 mm (note: conflicting source text “1.000mg 500kg”)

  • PLC: Without PLC (integrated safety via safety PLC Pilz)

  • Loading area safety: Vertical light curtain

  • Safety PLC: Pilz

  • Operator detection: Pre-Reset

  • Service door lock: Euchner HASP

  • Service window: 1x with Euchner handle

  • Power source: Fronius TPS 4001, water cooled for ID

    • Communication: DeviceNet

  • Torch package: Fronius MTB 500i, water cooled for ID

  • Wire feed accessories: Lid attachment, Esab liner 4.5 m

  • Torch service center: ABB TSC

  • Wire cutter: Yes

  • SmarTac: Wire

  • Regula EWR: Mechanical

  • Pneumatical board: SMC 500 VP544 GCE Flow

  • Hoses to fixtures: 1x air

  • Fencing: C, R, B-250

  • Fumehood: B250, 8500, B750 Welding

  • UV window: 1x

  • Lighting: Welding area switch

  • Software: Jahreslizenz RobotStudio CAD Konverter STEP

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
