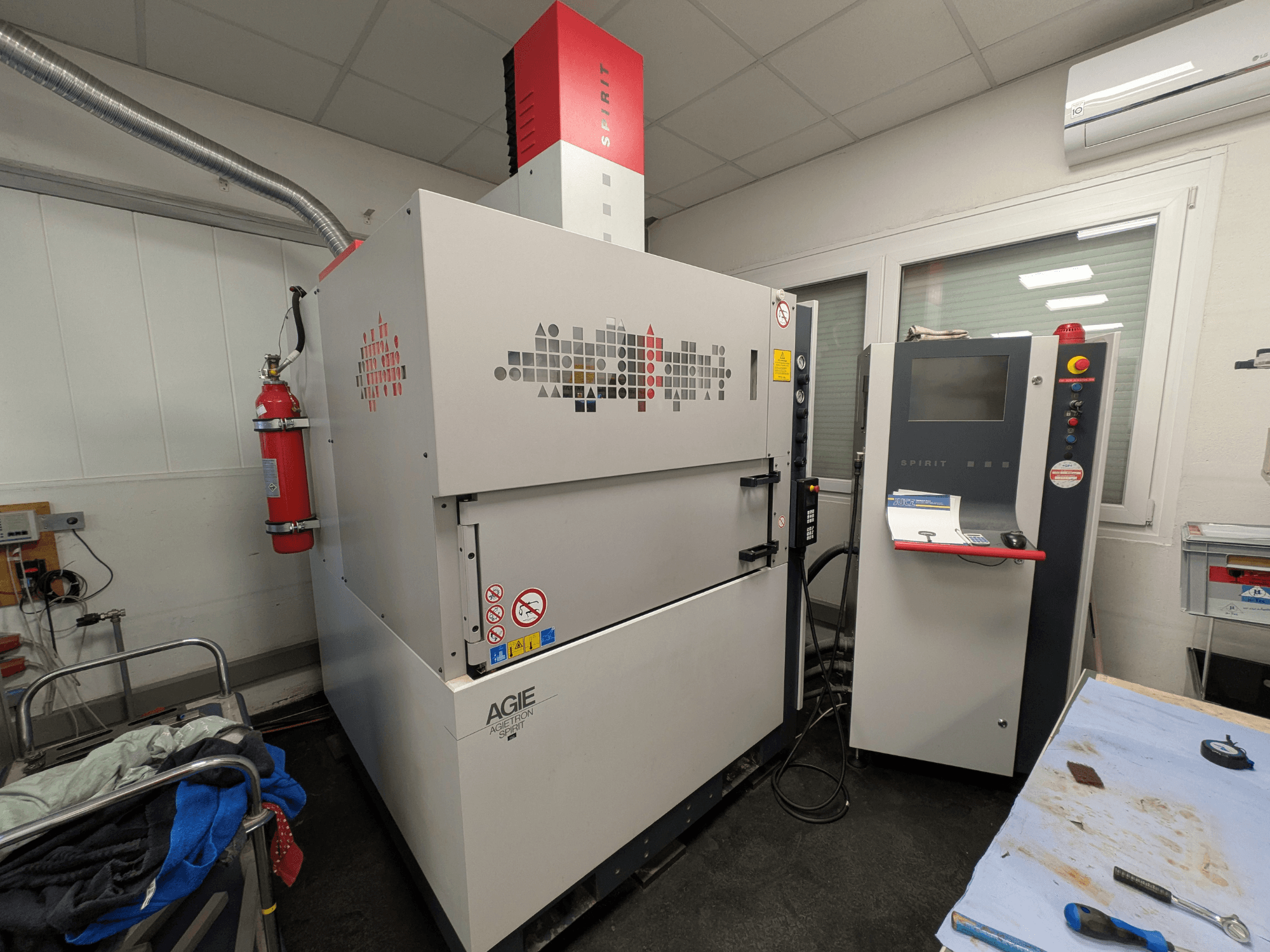

This 4-axis AGIE AGIETRON SPIRIT 3 die-sinking EDM machine was manufactured in 2007. It features an X travel of 550 mm, Y travel of 400 mm, and Z travel of 350 mm, with a maximum workpiece weight of 1,000 kg. The machine includes a high-performance 72 Amp generator and a tool changer capacity of 10 electrodes. If you are looking to get high-quality die-sinking capabilities, consider the AGIE AGIETRON SPIRIT 3 machine we have for sale. Contact us for further details.
Overview
- brand: AGIE
- year: 2007
- MODEL: AGIETRON SPIRIT 3
- production hours: 2129
- application type: EDM
- Location: Austria
- machine type: Die-Sinking EDM Machine
Technical Information - AGIE AGIETRON SPIRIT 3
Dimensions
- Machine Weight: 3900 kg
Movement
- Number of Axes: 4
- X-axis Travel: 550 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 350 mm
Additional Information
15” TFT color screen
Windows-based controller
Automatic erosion programming (AEP)
3D path control
Integrated flame detection system
C-axis: Standard integrated
Maximum Electrode Weight: 50 kg
Maximum Workpiece Weight: 1000 kg
Maximum Workpiece Dimensions: 960 × 650 × 255 mm
Table Grid: 50 × 50 mm
Tool Changer Capacity: 10 electrodes
Best Surface Finish: Ra 0.2 µm
Generator: AGIE APG Spirit with 72 Amp high-performance generator
Supply Voltage: 3 × 400 V
Frequency: 50 Hz
Power Consumption: 4.7 kVA
Rated Current: 6.8 A
Short-circuit Current: 10 kA
Compressed Air Requirement: 6–8 bar
LAN Connection: 10/100 Mbit, TCP/IP
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
