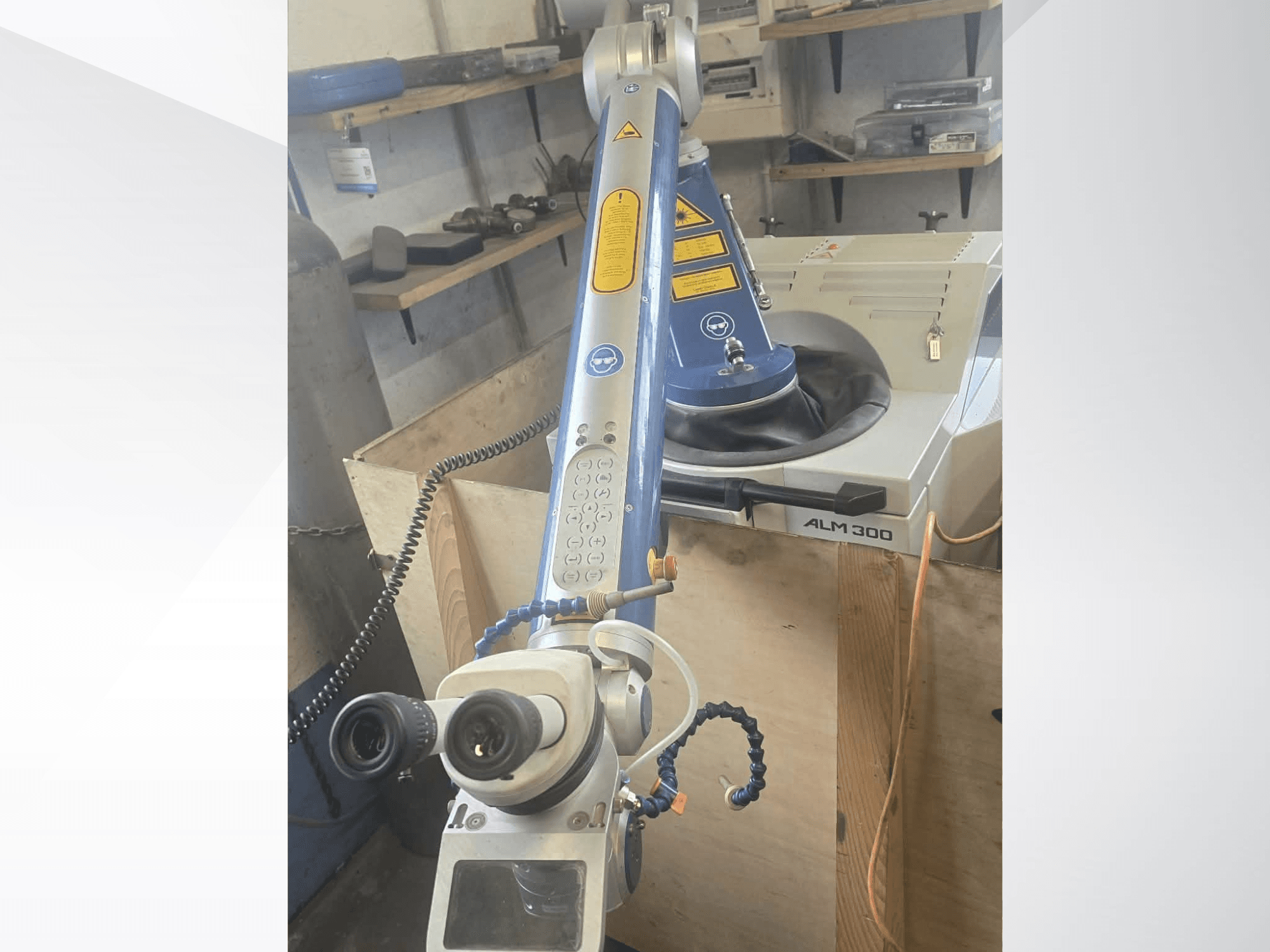

This 3-axis ALPHA LASER ALM 300 was manufactured in 2019. It features a powerful Nd:YAG laser with an average power of 300 W and a peak pulse power of 9 kW. The movement range is 120 × 110 × 800 mm, allowing for versatile applications. If you are looking to get high-quality laser welding capabilities, consider the ALPHA LASER ALM 300 machine we have for sale. Contact us for further details.
Overview
- brand: ALPHA LASER
- year: 2019
- MODEL: ALM 300
- application type: Welding
- Location: Poland
- machine type: Laser Welding Machine
Technical Information - ALPHA LASER ALM 300
Dimensions
- Machine Height: 1585 mm
- Machine Weight: 300 kg
- Machine Width: 730 mm
Technical Specification
- Laser Power: 0.3 kW
Additional Information
Laser type / wavelength: Nd:YAG, 1,064 nm
Operating mode: Pulsed
Average power: 300 W
Peak pulse power: 9 kW
Pulse energy: 90 J
Pulse duration: 0.5–20 ms
Pulse frequency: Single pulse up to 100 Hz
Welding spot diameter: 0.2–2.0 mm
Focusing objective: 150 mm (further lenses per lens data sheet)
Work area / axes:
Movement speed (X/Y/Z): 0–25 mm/s
Movement range (X/Y/Z): 120 × 110 × 800 mm
Lowest working point: 530 mm
Highest working point: 1590 mm
Arm deflection: 1300 mm
Observation lens / ergonomics: Microscope attachment with eyepieces for glasses wearers 10×
Electrical connection: 3 × 400 V / 50–60 Hz / 3 × 16 A
Condition: Demo/showroom use only; excellent technical and visual condition
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
