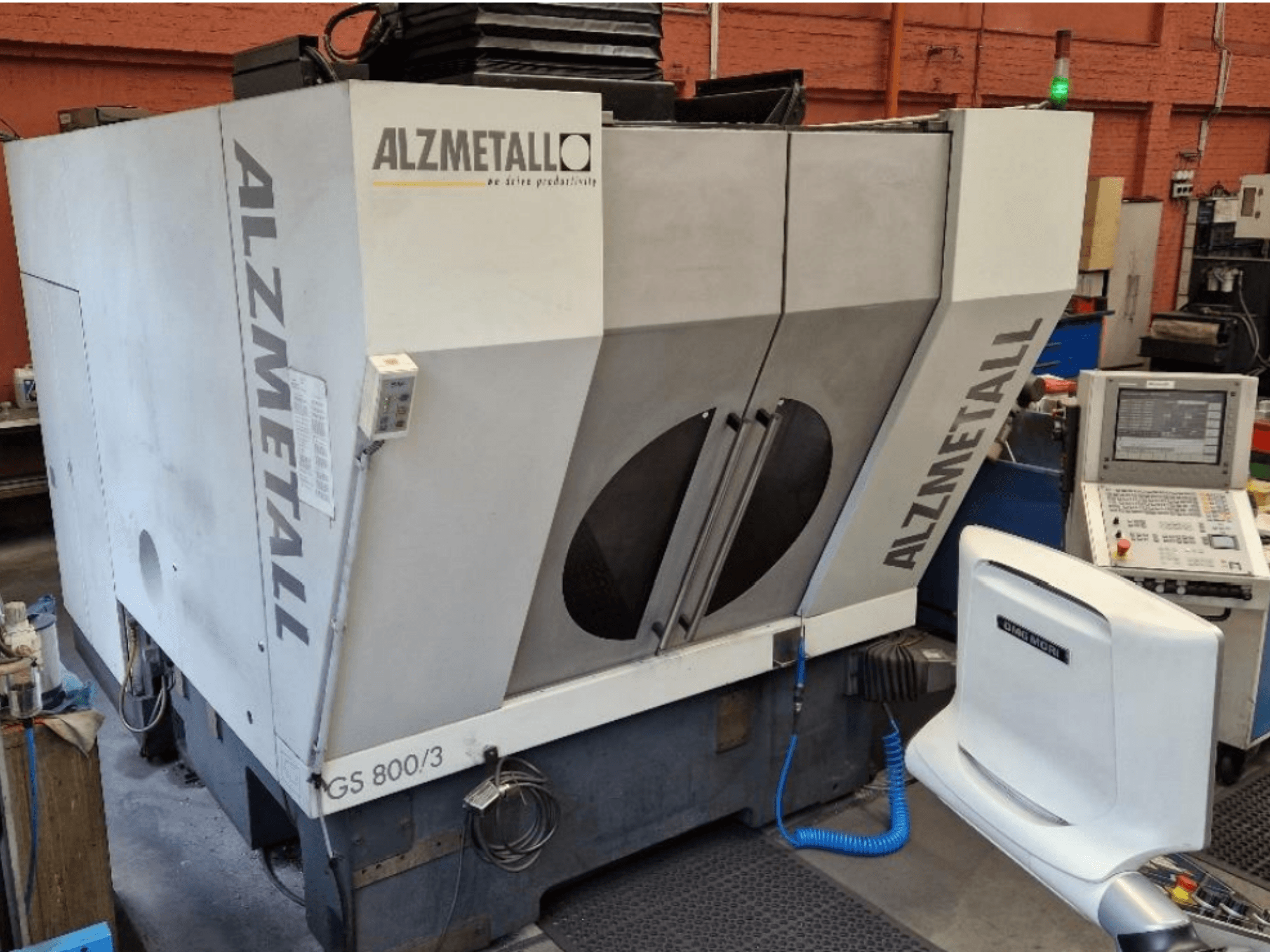

Alzmetall - GS 800/3DE-MIL-ALZ-2008-00002

- Distance Spindle to Rigid Table: 150 – 650 mm

- Table T-Slots: 9 T-slots according to DIN 650 in X-direction, 14 H12 width, 100 mm pitch, 14 H7 center alignment slot, table lowered by 80 mm

- Spindle Type: Water-cooled high-frequency motor spindle with hybrid spindle bearings and oil-air lubrication

- Spindle Taper: HSK-A63 according to DIN 69893 -

- Max. Torque: 139 Nm at 25% duty cycle - Spindle Features: New spindle in 2025, thermal expansion compensation, sealing air seal, air blow through spindle center

- Rapid Traverse (X/Y/Z): 45 m/min

- Max. Acceleration (X/Y/Z): 10 m/s²

- Max. Feed Force (X/Y/Z): 10 kN at 40% duty cycle

- Measuring Systems: Dual direct linear measuring systems for X/Y, direct linear measuring system for Z

- Positioning Accuracy (Tp): 0.007 mm according to DIN ISO 230-2

- Tool Magazine: Chain magazine with 33 tool positions

- Tool Change System: Pick-up system

- Max. Tool Diameter: 90 mm (full configuration) / 130 mm (with free adjacent positions)

- Max. Tool Length: 300 mm

- Max. Tool Weight: 10 kg

- Max. Total Tool Weight: 160 kg

- Tool Change Time: Approx. 2 seconds

- Chip-to-Chip Time: Approx. 6 seconds

- Operating Voltage: 3x 400 V

- Mains Frequency: 50 Hz

- Total Rated Current: 55 A

- Mains Supply Fuses: 63 A gG - Required Supply Pressure: Min. 6 bar

- Required Network System: TN network

- Transport Dimensions: Approx. 2,250 mm (W) x 4,760 mm (D) x 2,800 mm (H)

- Additional Equipment & Features:

- HEIDENHAIN TS 640 3D touch probe with infrared transmission

- HEIDENHAIN TT 140 automatic tool measurement

- HR 410 electronic handwheel

- Automatic roller shutter roof cover

- Scraping-belt chip conveyor (for short metal chips up to 80 mm length)

- All-round sheet steel enclosure

- Stainless steel interior lining of the machining area

- Work area lighting - Electrically secured horizontal sliding door with mechanical locking

- Control cabinet cooling

- Missing/Excluded Components: Coolant tank is NOT included (no coolant tank, no pumps, no chip flushing hose)
