AMADA ARIES 245
AMADA - ARIES 245
1991
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- AMADA ARIES 245 Punching machine

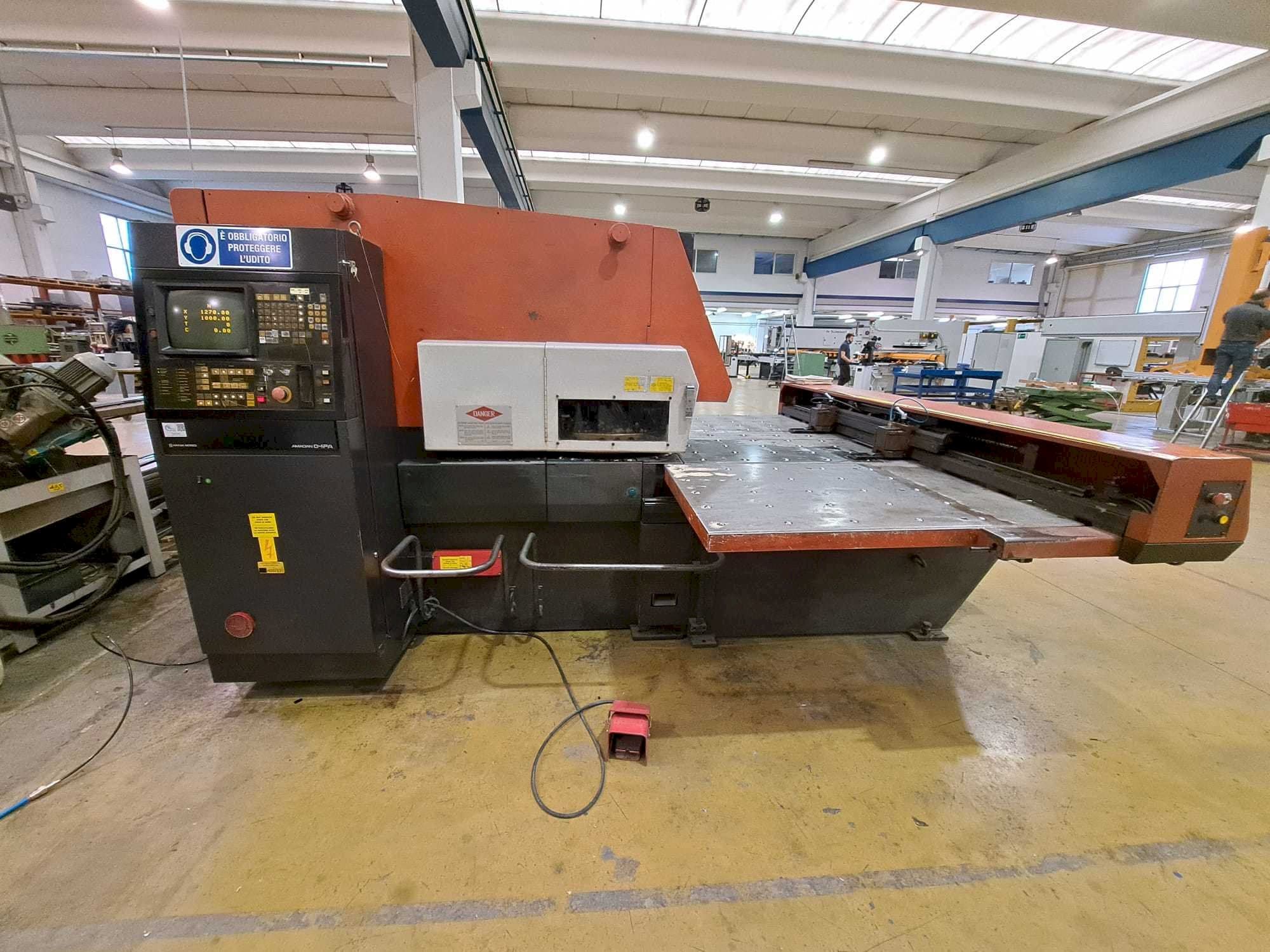

This AMADA ARIES 245 Punching machine was manufactured in the year 1991. The machine has a punching force of 200 kN, it is in excellent condition and very well maintained.
Overview
- brand: AMADA
- year: 1991
- MODEL: ARIES 245
- application type: Punching
- Location: Italy
- machine type: Punching Machine
- availability: Sold
- GINDUMAC ID: IT-PUN-AMA-1991-00001
Technical Information
General Data
- Machine weight: 7000 kg
Main drive
- Punching force: 200 kn
Tools
- Number of index: 3
- Number of stations: 19
Additional Information
- Technical Machine Benefits:
- - Working size: 1000 x 1250mm
- - Max punching frequency: 300/min
- - Positioning accuracy: +/- 0. 15mm
- - Clamps: 2
- - Turret configuration:
- - Number of a stations (maximum diameter up to 12. 7 mm): 9
- - Number of b stations (maximum diameter up to 31. 7 mm): 5
- - Number of b index stations: 2
- - Number of c stations (max. Diameter up to 50. 8 mm)
- - Number of c index stations: 1, number of d index stations (max. Diameter up to 88. 9 mm): 2
- Qualitative Machine Benefits:
- - Complete technical documentation in italian
- - The machine is in excellent condition, very well maintained
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
