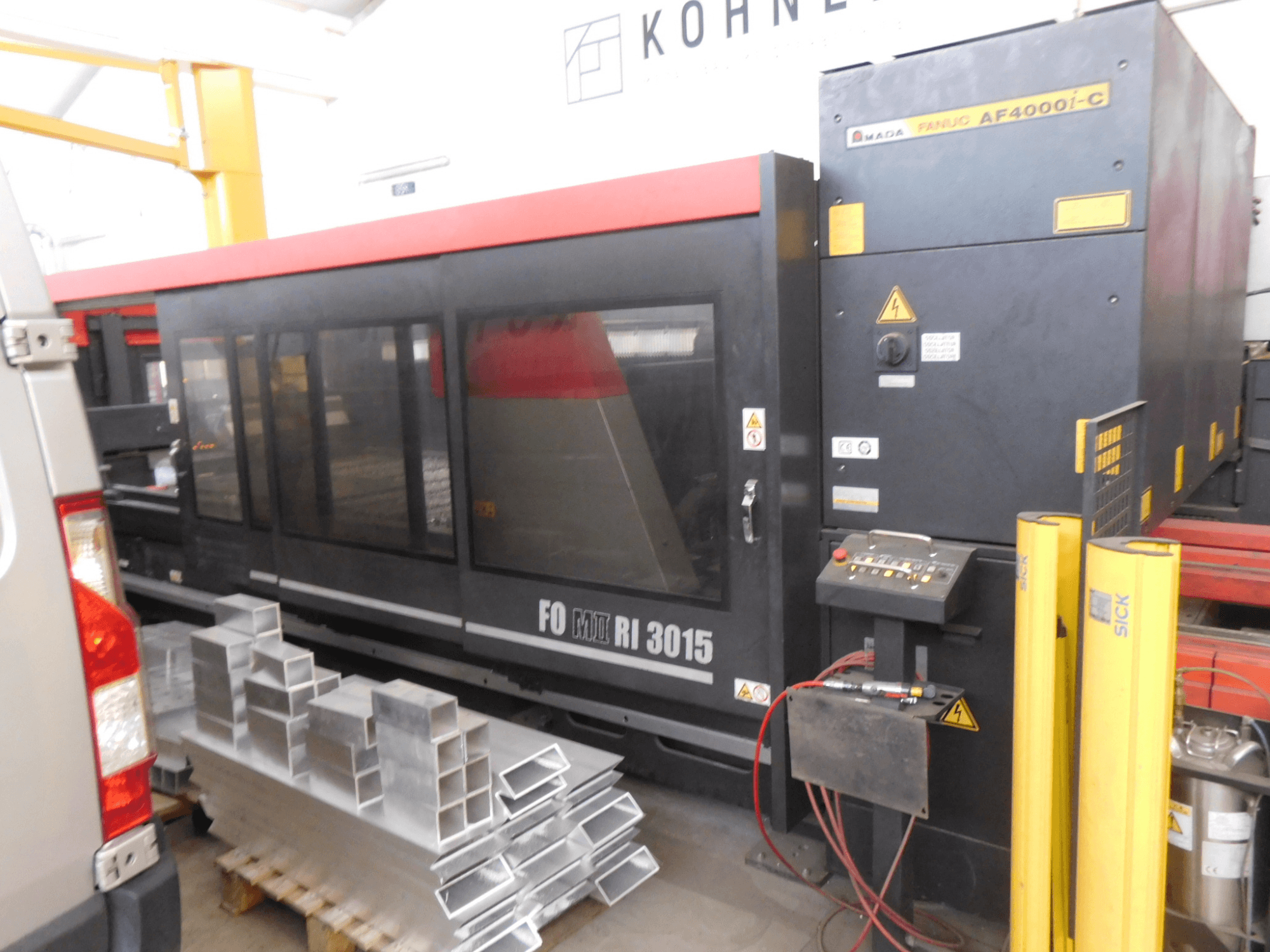

AMADA - FO-3015 II RIDE-CUT-AMA-2012-00003

• Laser Type: CO2 Laser, AC-HF excited, fast axial flow

• Laser Output: 4000 Watts (Continuous), 5000 Watts (Peak)

• Optical system: Flying optics

• Travel Range (X x Y x Z): 3070 x 1550 x 200 mm

• Max. Table Load: 920 kg

• Max. Material Thickness (Mild Steel): 20 mm

• Positioning Speed: 80 m/min (X/Y), 60 m/min (Z), 113 m/min (simultaneous)

• Positioning Accuracy: ± 0.01 mm / 500 mm

• Positioning Repeatability: ± 0.005 mm

• Control unit: AMNC 3i (21.5-inch screen)

• Laser source type: AO4B-0815-B342 (YOM 2013, S/N L13X40476)

• Laser stability: ± 2%

• Laser gas consumption: approx. 10 l/h

• Laser gas mixture:

  • CO₂: 5 ± 0.25%

  • He: 60 ± 3%

  • N₂: 35 ± 1.75%

• Beam mode: approximately TEM₀₀

• Beam divergence: less than 2 mrad

• Pulse frequency: 1 – 2000 Hz

• Environmental conditions: 5 – 35°C at max. 75% humidity

• Temperature range (operating temp.): 25°C (± 1°C)

• Laser Wavelength: 10.6 µm

• Laser Gas Consumption: approx. 10 l/h

• Power Consumption: 12-59 kW (average for entire system)

• Rotary Index (RI): Integrated capability for tube/profile processing; RI unit present per documentation

• Power requirement (main unit nameplate): 200V, 50/60 Hz

• Machine Weight: 13,550 kg

• Oscillator nameplate: Model AF4000i-C, weight 1200 kg

• Main unit nameplate: Model FO3015IIRI

• Last service by Fanuc: January 5, 2023

• O-rings on the laser tube replaced

• Internal mirrors replaced

• Turbo-blower replaced

Additional equipment

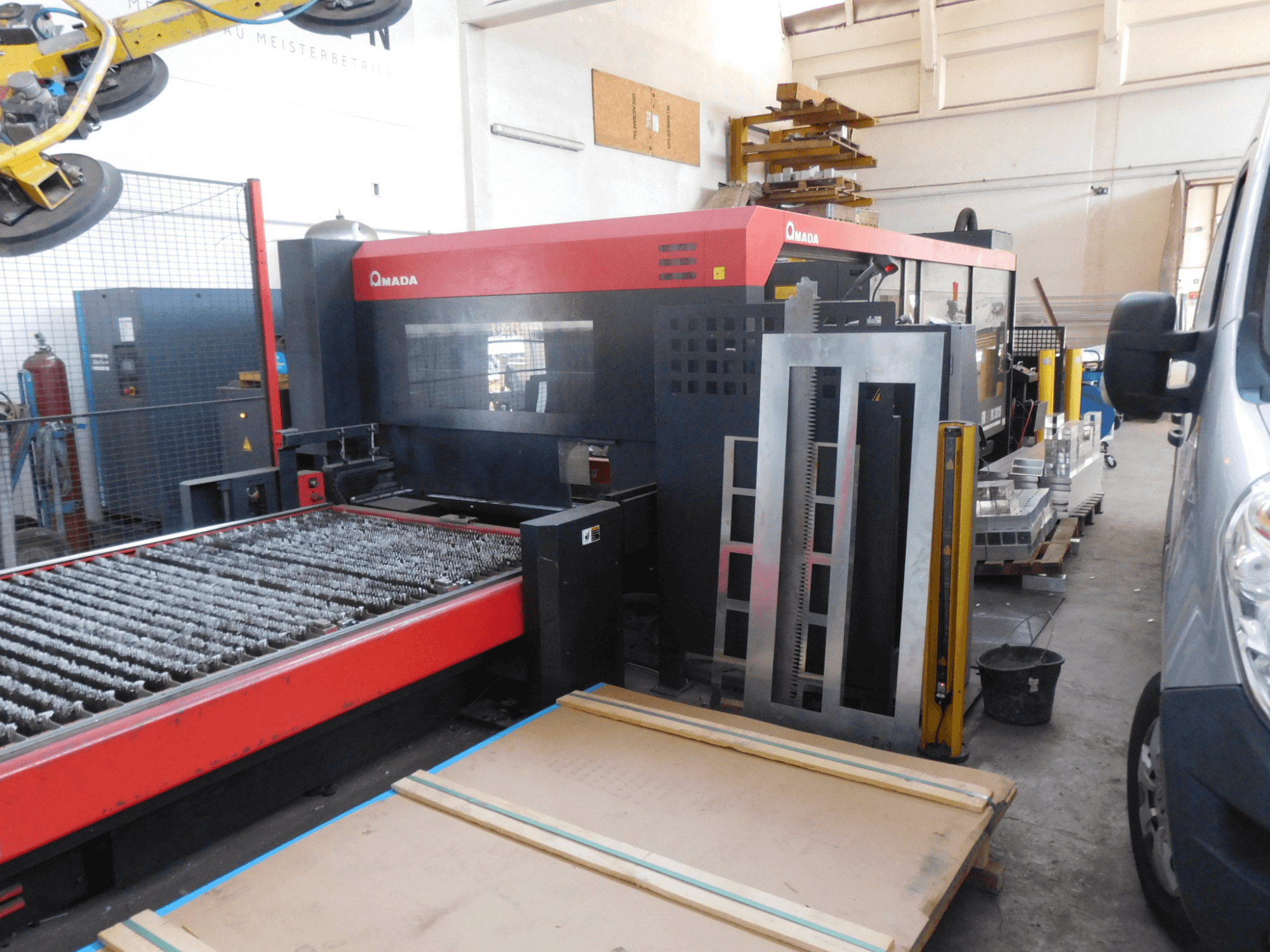

• Pallet changer: LST3015 RI (YOM 2017, S/N 30153398)

• Power supply/Transformer: TG513 (S/N 987/13)

• Cooling/Extraction unit: PC5011FOm24kw (S/N 7196850001)

• VPSS 3i Tube Full Solution Pack software

• Steel-Prisma table support

• Rotary Index pipe cutting unit
