ANAYAK HVM 6000

Photo Gallery

ANAYAK - HVM 6000DE-MIL-ANA-2004-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used ANAYAK HVM 6000 For Sale | gindumac.com

Show in original language

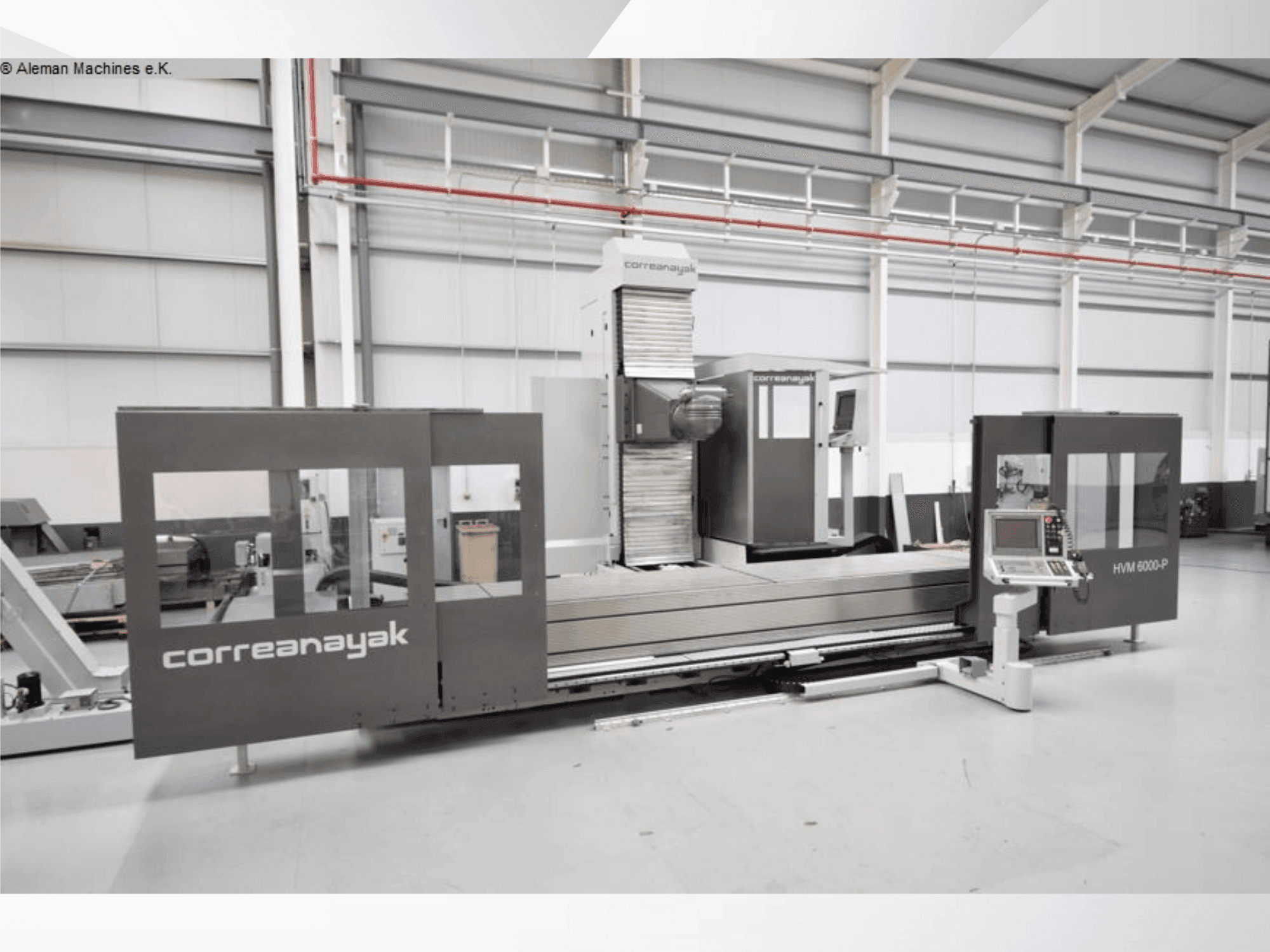

This 5-axis ANAYAK HVM 6000 universal machining center was manufactured in 2004. It features a HEIDENHAIN TNC 530 control, extensive travel capabilities with x-travel at 5,300 mm, y-travel at 1,500 mm, and z-travel at 2,000 mm. The machine has undergone a thorough overhaul, ensuring all components meet original specifications. If you are looking to get high-quality milling capabilities, consider the ANAYAK HVM 6000 machine we have for sale. Contact us for more information.

Overview

brand: ANAYAK
year: 2004
MODEL: HVM 6000
production hours: 30238
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - ANAYAK HVM 6000

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 530

Movement

A-axis Max: 45°
A-axis Min: -225°
B-axis Max: 165°
B-axis Min: -18°

Technical Specification

Spindle Power: 28 kW
Spindle Speed: 5000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Complete cleaning of the machine
Disassembly of the machine
Hydraulic components checked
Lubrication systems checked
Control cabinet checked
Control panel replaced
Polycarbonate doors replaced
Testing of all functions
General check of all components

Technical Machine Benefits

Mechanical checks of the x, y, and z axes (spindle repair, bearing replacement, belt replacement)
Milling head checked (repaired by supplier)
Telescopic cover of the x-axis checked and repaired
Adjustments performed with laser renishaw and balbar renishaw
Painting in the original color
Spindle hours: 8,087 h / spindle outer diameter (front bearing): 140 mm / spindle passage: 90 mm
Clamping surface: 6,000 x 1,200 mm
Table height: 925 mm / working feed: 10 - 6,000 mm/min
Rapid traverse (x and y axis): 15,000 mm/min / rapid traverse (z axis): 10,000 mm/min
Drive motor torque: 1,880 (s1) / 1,385 (s2) nm / gear stages: 2

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
