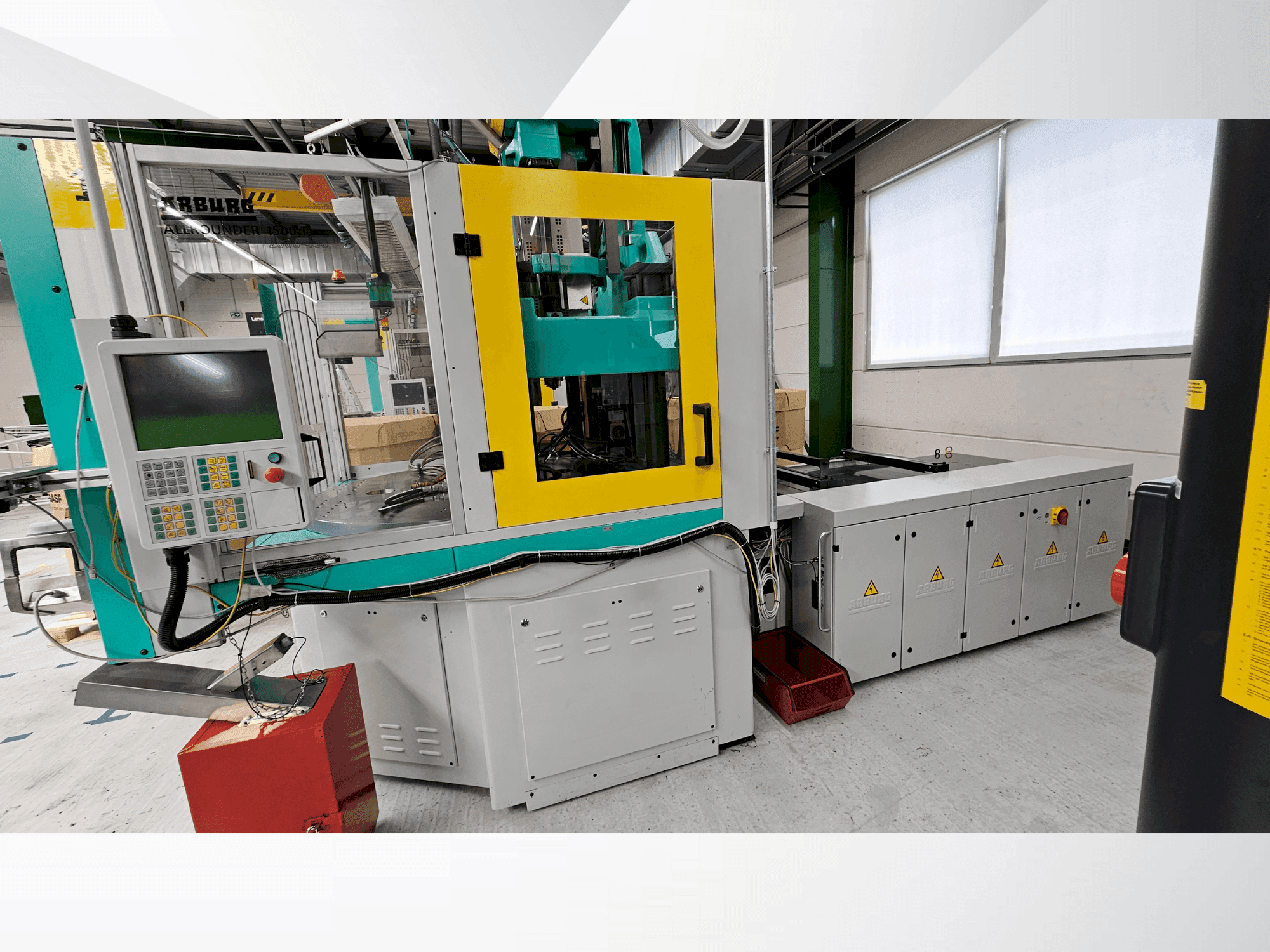

This Arburg Allrounder 1500 T 2000-400 vertical injection moulding machine was manufactured in 2013. It features a clamping unit with a closing force of 2000 kN and a table diameter of 1500mm. The injection unit boasts a screw diameter of 40mm and a shot weight of 184 g PS. Ideal for precision moulding, the Arburg Allrounder 1500 T 2000-400 machine we have for sale is a robust choice for your production needs. Contact us for more information.
Overview
- brand: Arburg
- year: 2013
- MODEL: Allrounder 1500 T 2000-400
- application type: Injection Moulding
- Location: Czech Republic
- machine type: Vertical Injection Moulding Machine
- availability: Immediately
Technical Information - Arburg Allrounder 1500 T 2000-400
Injection Unit
- Screw diameter: 40 mm
Clamping unit
- Clamping force: 2000 kN
Additional Equipment
- - Rotary Table: Yes (180° rotation angle left/right)
Additional Information
- Technical Machine Benefits:
- - Comprehensive injection unit with high injection pressure and material throughput
- - Rotary table with 180° rotation angle for efficient moulding
- - Clamping Unit Clamping Force: 2000 kN Opening Force Max.: 115 | 300 kN|mm Mould Installation Height Fixed Min.: 400 mm Pallet Distance Fixed: 700 mm Table Diameter: 1500 mm Rotation Angle Left/Right: 180° Weight of Moving Mould Half: 500 kg Ejector Force|-Travel: 25|175 kN|mm // Injection Unit Screw Diameter: 40 mm Effective Screw Length: 20 L/D Screw Stroke: 160 mm max. Calculated Stroke Volume: 201 max. cm³ Shot Weight: 184 g PS Material Throughput: 29 kg/h PS Injection Pressure Max.: 2000 bar Holding Pressure Max.: 2000 bar Injection Flow² Max.: 168 cm³/s (2 pumps) Screw Circumferential Speed² Max.: 53 m/min (2 pumps) Screw Torque Max.: 550 Nm Nozzle Contact Force|-Lifting Movement Max.: 60 | 400 kN|mm Granulate Container: 50 litres
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
