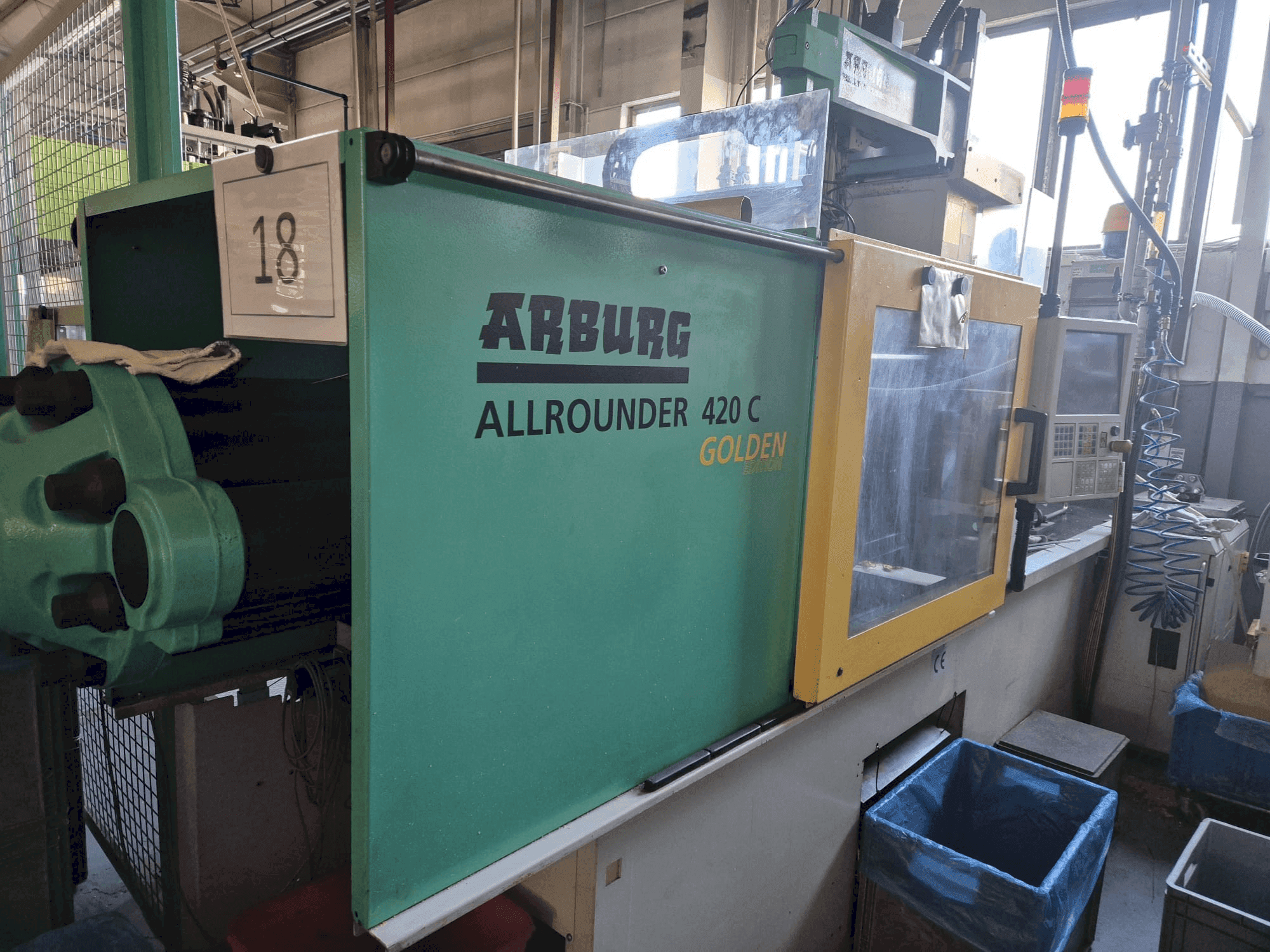

Arburg - Allrounder 420 C 1000-290 Golden EditionDE-INJ-ARB-2012-00002

Additional Equipment

• - ⌀ Cylinder: 35
• - Injection Weight Max. PS: 122 g
• - Nozzle Radius: R40
• - Clamping System: Bakra
• - Centring Ring: 125 mm

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Voltage: 400 v, 50 hz / clamping force: 1000 kn / screw diameter: 290 mm
  • - Nozzle control: programmable hydraulic system with t2 control block.
  • - Pump/motor: main pump: not explicitly listed, but typical for this series: rxp-type with servo-hydraulic regulation. Motor power: 7. 5–8. 6 kw
  • - Cooling: oil temperature control: programmable system / coolant channels: regulated water/oil circuits for molds and hydraulics.
  • - Cpu: intel celeron with ethernet/usb (d-arb 830).
  • - I/o modules: digital i/o (l-arb 790). Analog control (l-arb 798).
  • - 12-channel temperature control (l-arb 777).
  • - Software: golden edition firmware with real-time ethernet /supports euromap 67 for robotic integration.
  • - Transport weight: 5600 kg
  • - Tool mounting: standard d125 mm mounting plate.

Extra information

• - Machine still under power

Payment Terms

• Payment in advance

• Asset Financing
