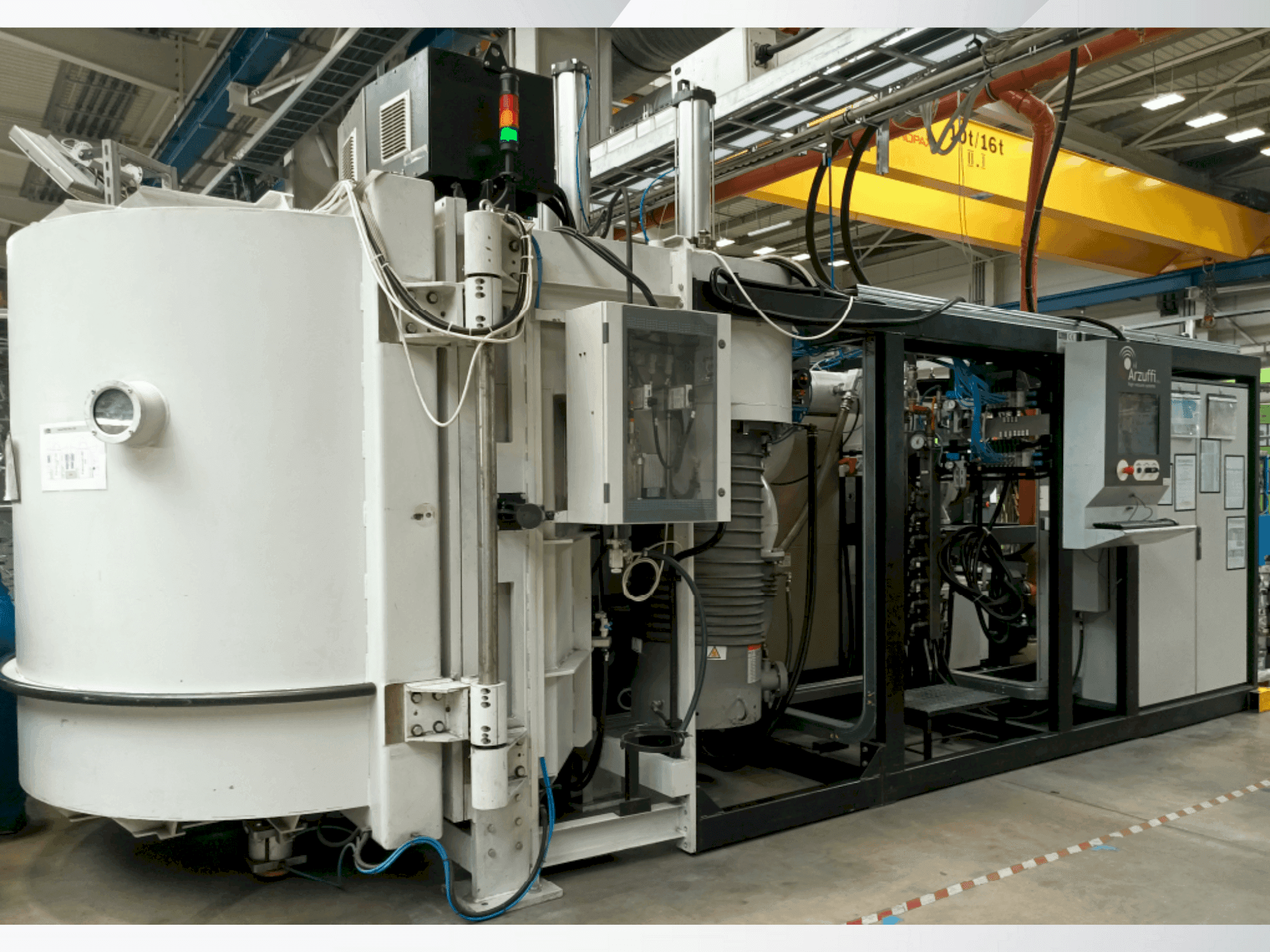

ARZUFFI AM/KW 1DA2 1900/1800 IC MF

Machine Benefits

• Technical Machine Benefits:
  • - High vacuum coating system
  • - Chamber dimension: diameter 1. 900 mm, height 1. 800mm, chamber volume 5,1 m3
  • - Electrical drawing: tension 440, volt frequency 50 hz, power 106 kw, max current consumption 108 amp.
  • - Power distribution: diffusion pump no. 2 12 kw each // rotary pump no. 1 15 kw // roots pump no. 1 11 kw // polycold 1102 pfc no. 1 15,3 kw // motoreducer no. 2 0,75 kw // evaporation transformer no. 1 25 kw // power supply mf no. 1 10 kw // hmdso heating no. 1 0,3 kw each
  • - Cooling system pressure 2 / 3 bar
  • - Cooling system capacity 90 - 100 lt/min
  • - Pneumatic system pressure 6 - 7 bar
  • - Diameter of fixture 6 - 560 mm / 8 - 460 mm
  • - Total height of fixture 1600 mm
  • - Useful height of fixture 1500 mm

Extra information

• - Loading system: Inside each door is installed a planetary that allows to charge n. 7 fixtures
