Avia FNE 40NC

Photo Gallery

Avia - FNE 40NCDE-MIL-AVI-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

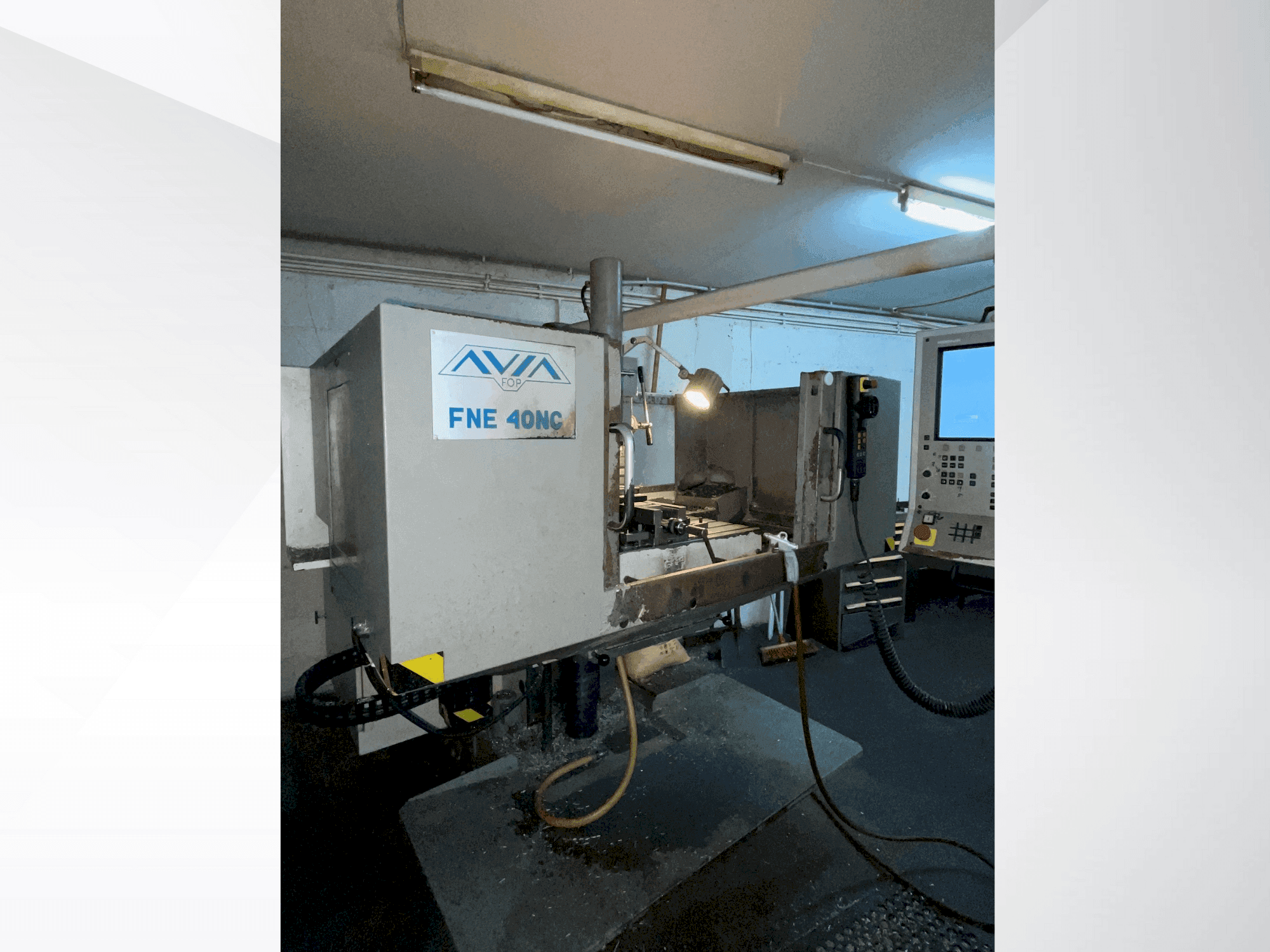

AVIA FNE 40NC Vertical Machining centre

Show in original language

This AVIA FNE 40NC Vertical Machining centre was manufactured in the year 2007 in Poland. It is equipped with a HEIDENHAIN control unit. Contact us anytime for further questions.

Overview

brand: Avia
year: 2007
MODEL: FNE 40NC
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Avia FNE 40NC

Control Unit

Control Brand: HEIDENHAIN

Dimensions

Machine Weight: 2100 kg

Movement

Number of Axes: 3
X-axis Travel: 620 mm
Y-axis Travel: 420 mm
Z-axis Travel: 400 mm

Technical Specification

Spindle Speed: 4000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Attachable fixed angle table: clamping surface 400x800mm, t-slots 5 pieces/14x80mm, weight 130kg, permissible load 400kg
Vertical console table: clamping surface 300x450mm, t-slots 3 pieces/14x80mm
Drive motors: spindle 6. 0 kw, x and y axis 7. 0 nm, z axis 10 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
