- ➤ Used AXA MILLTURN VHC 2-1760 XTS 50/D | Universal Center

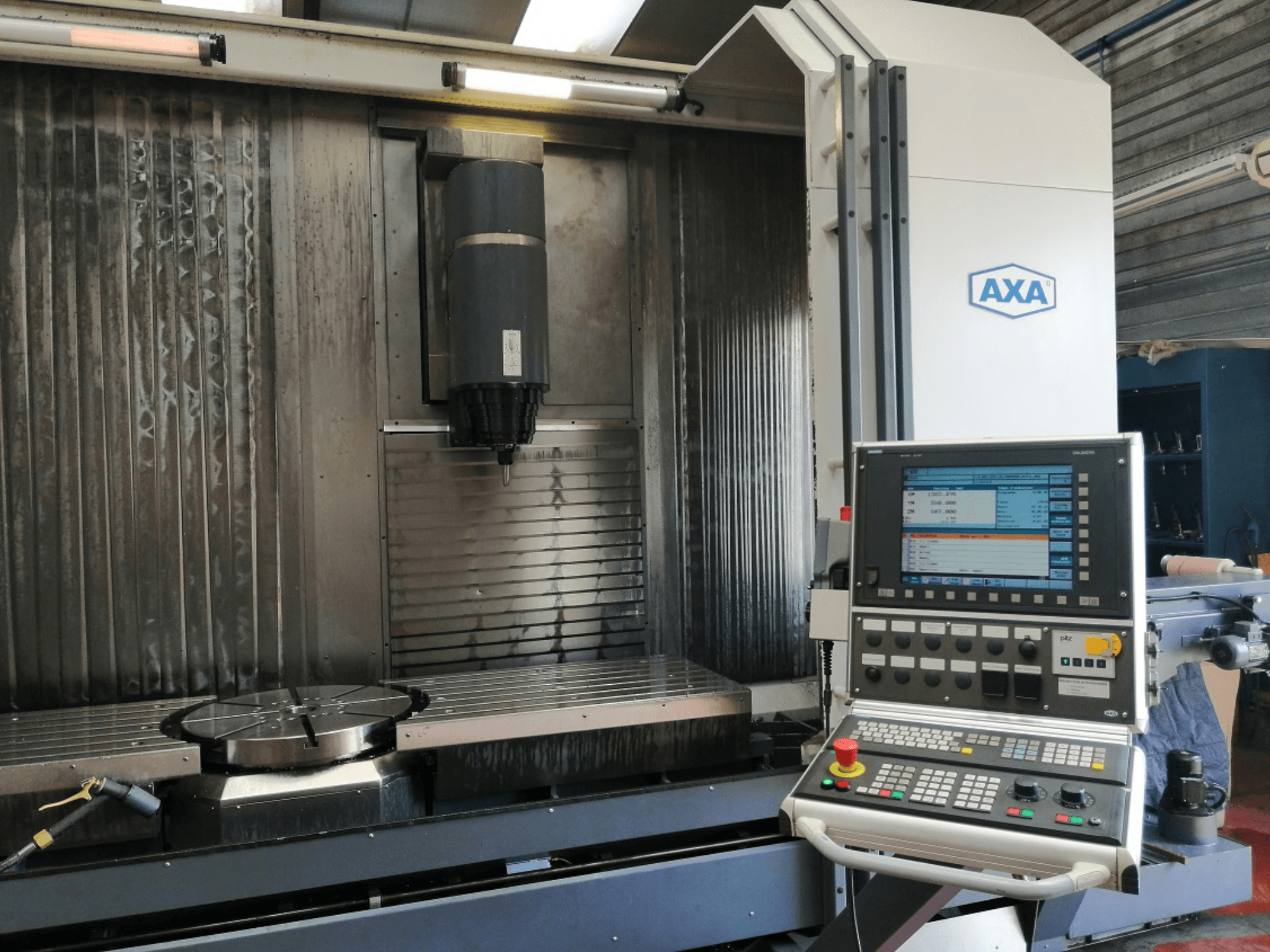

This 5-axis AXA MILLTURN VHC 2-1760 XTS 50/D was manufactured in 2013. It features a Siemens 840D CNC, with travels of 1760 x 600 x 850 mm and a CNC table diameter of 600 mm. The machine supports a maximum load of 500 kg and includes a center coolant system, workpiece and tool probes, spindle cooling, and tool holders. If you are looking to get high-quality milling and turning capabilities, consider the AXA MILLTURN VHC 2-1760 XTS 50/D machine we have for sale. Contact us for more information.
Overview
- brand: AXA
- year: 2013
- MODEL: MILLTURN VHC 2-1760 XTS 50/D
- application type: Milling
- Location: France
- machine type: Universal Machining Centre
- control unit brand: SIEMENS
Technical Information - AXA MILLTURN VHC 2-1760 XTS 50/D
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Dimensions
- Machine Height: 3150 mm
- Machine Length: 6200 mm
- Machine Weight: 18000 kg
- Table Load: 500 kg
Movement
- Number of Axes: 5
- X-axis Travel: 1700 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 850 mm
Technical Specification
- Spindle Power: 56 kW
- Spindle Speed: 9000 RPM
Additional Information
Table diameter (C-axis): 600 mm
5-axis automatic head: +/- 100°
Milling spindle:
Taper: SA50
Torque: 700 Nm
Turning function (table):
Speed: 350 rpm
Tool changers:
Milling tool changer: SK50, 26 positions
Turning tool changer: Capto C6, 10 positions
Condition: Perfect condition, recently serviced
Price: On request (ex-works)
Availability: Machine available unless sold in the meantime
Additional equipment
Center coolant system (through-spindle coolant)
Workpiece probe
Tool probe
Spindle cooling
Tool holders included (milling and turning)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
