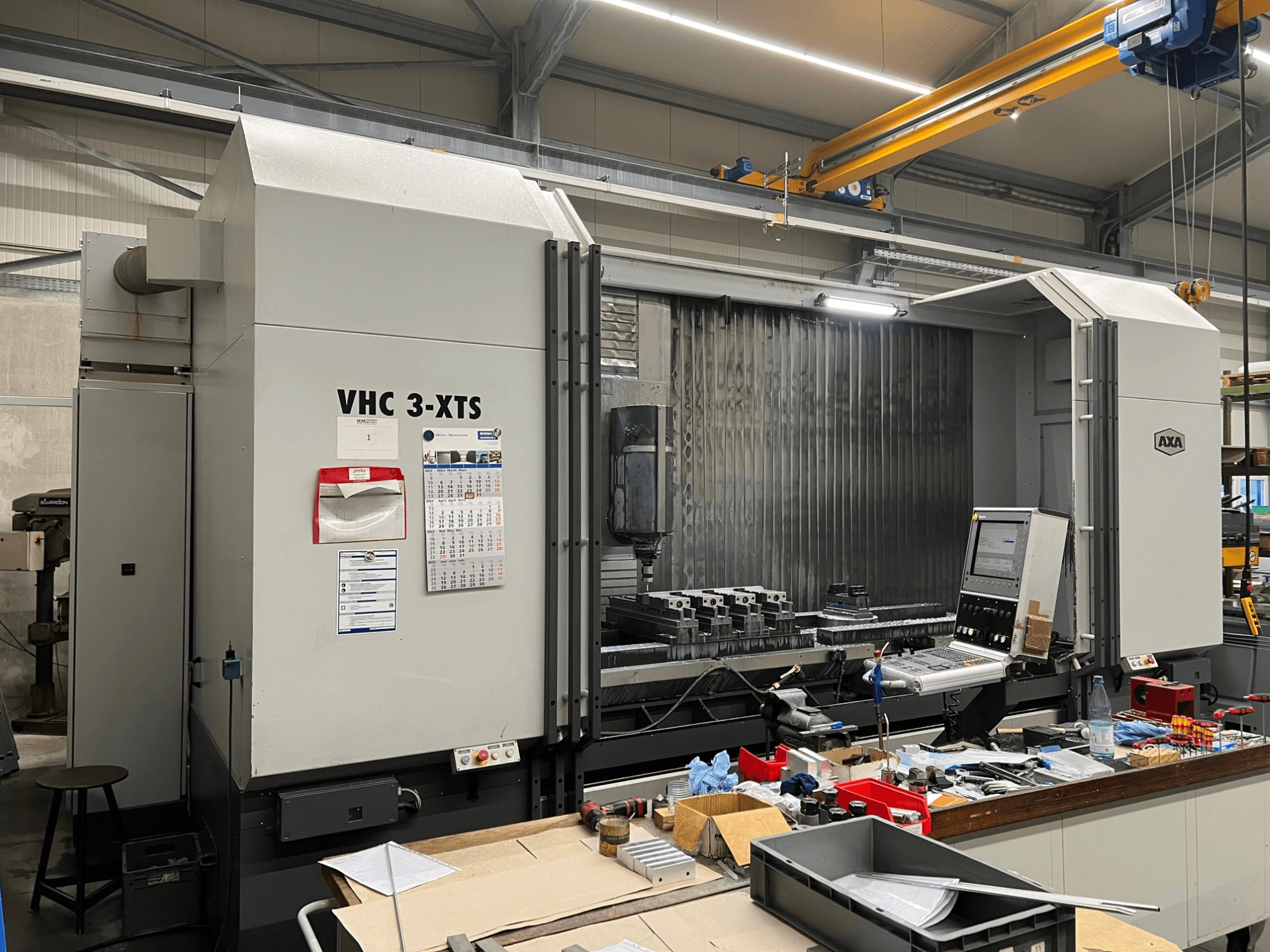

This 3-axis AXA VHC 3-XTS was manufactured in 2009 and features a robust 5-axis simultaneous machining capability. It boasts a large X-axis travel of 3000 mm, Y-axis travel of 900 mm, and Z-axis travel of 850 mm. The machine includes a high-capacity tool magazine with 82 positions and a maximum spindle speed of 9000 rpm. Additionally, it supports internal coolant up to 40 bar and has a new spindle installed last year. Contact us for more information about this machine.
Overview
- brand: AXA
- year: 2009
- MODEL: VHC 3-XTS
- production hours: 34858
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - AXA VHC 3-XTS
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Movement
- Number of Axes: 5
- X-axis Travel: 3000 mm
- Y-axis Travel: 900 mm
- Z-axis Travel: 850 mm
Technical Specification
- Spindle Speed: 9000 RPM
- Taper Size: SK 40
Additional Information
Tool positions: 82
Max. spindle speed: 9000 rpm
Internal coolant: 40 bar
Max. tool length: 400 mm
Max. tool width: 135 mm
5-axis simultaneous machining capability
Pallet change capability (pendulum machining possible)
New spindle installed about a year ago
chip conveyer included
Internal coolant 40 bar -> inner cooling through spindle 40 bar
Machine got a new spindle a year ago -> 18 months ago
Additional equipment
Renishaw sample
Partition for two-sided operation (enables pallet change); partition is available
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
