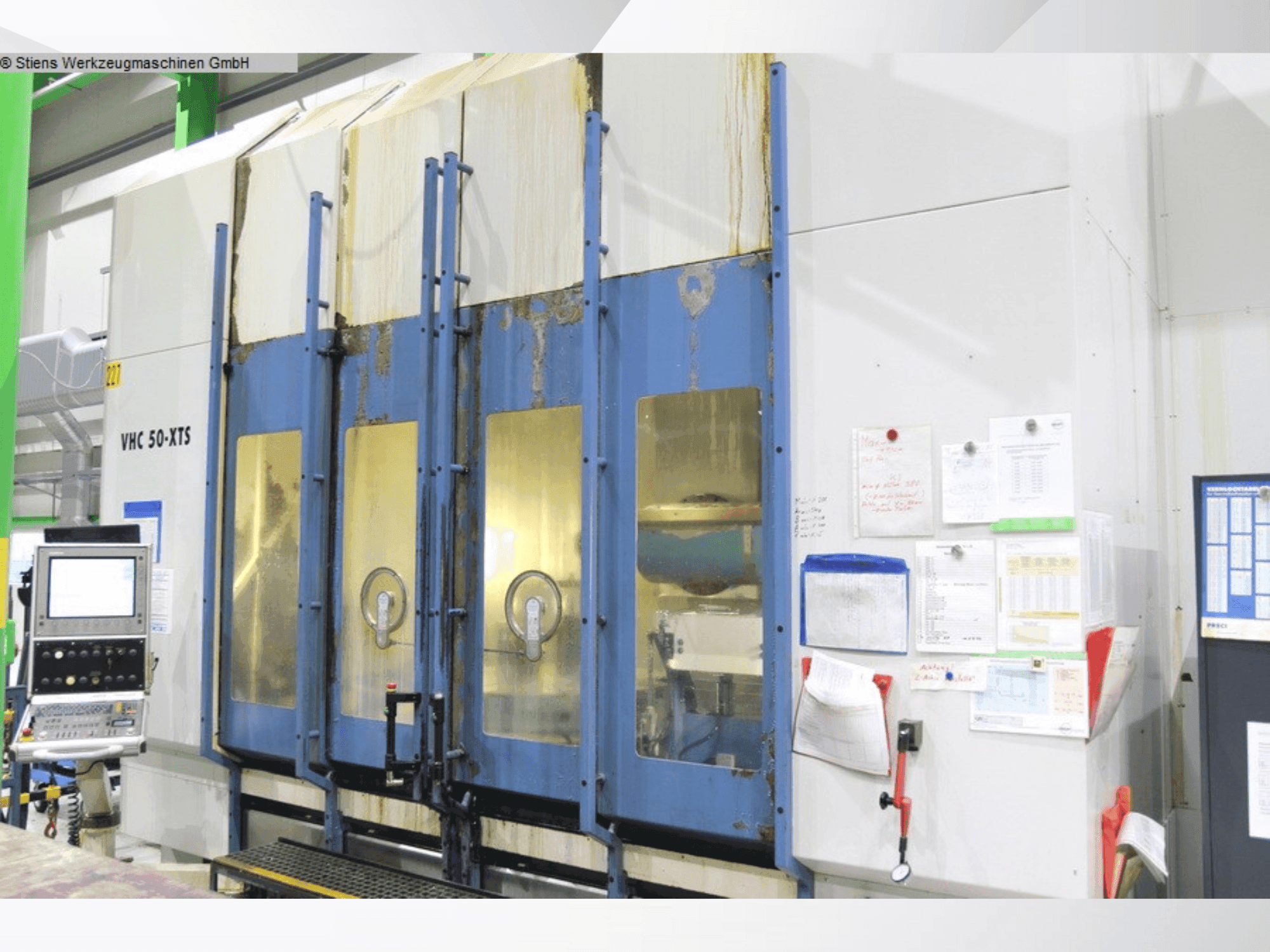

Front view of AXA VHC 50 - XTS 2000  machine

AXA - VHC 50 - XTS 2000DE-MIL-AXA-2008-00001

120,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis AXA VHC 50 - XTS 2000 universal machining centre was manufactured in 2008. It features a Heidenhain iTNC 530C control, a swivelling milling head with infinite positioning, and a NC rotary table. The machine offers a spindle speed up to 7,500 min/-1, a tool changer with 60 positions, and a high-pressure coolant system. Ideal for complex machining tasks, the AXA VHC 50 - XTS 2000 machine we have for sale. Contact us for further details regarding this universal machining centre.

Overview

  • brand: AXA
  • year: 2008
  • MODEL: VHC 50 - XTS 2000
  • production hours: 42554
  • application type: Milling
  • Location: Germany
  • machine type: Universal Machining Centre
  • availability: Immediately
  • control unit brand: Heidenhain

Technical Information - AXA VHC 50 - XTS 2000

General Data

  • Measurements width: 7000 mm
  • Measurements depth: 10000 mm
  • Measurements height: 4000 mm
  • Machine weight: 33000 kg

Control Unit

  • Brand: Heidenhain
  • Model: iTNC 530C

Main drive

  • Spindle speed range: 30 - 7.500 min-1 1/MIN
  • Spindle motor power: 25 kW
  • Tool taper: SK 50 DIN 69871A

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - X-Axis: 2000 mm (vertical), 1400/2 mm (horizontal) / Y-Axis: 900 mm (vertical/horizontal) / Z-Axis: 1200 mm (vertical), 940 mm (horizontal) / B-Axis: Swivelling milling head, +/- 115°
    • - Pick-up station
    • - Coolant system
    • - High-pressure cooling
    • - High-pressure cooling
    • - Paper belt filter
    • - Hydraulic unit
    • - Various tool holders approx. 10 pcs
    • - Measuring probe
    • - Electr. handwheel, Operating mode 4

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Infinitely variable positioning of the swivelling milling head
        • - Rapid traverse (x/y/z): 30 / 30 / 25 m/min
        • - Resolution: 0. 001°
        • - Max. Tool diameter:with all spaces occupied: 110 mm
        • - With free neighbouring box: 180 mm
        • - Max. Tool length: 400 mm / max. Tool weight: 15. 0 kg
        • - Changing time: approx. 8. 0 sec

      Extra information

      • - Total power requirement: 75 kVA / Sold without tools and accessories / Distance between spindle nose and table:Vertical: 0 - 740 mm / Horizontal: 250 - 1.050 mm / Machine was newly painted inside and outside

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
