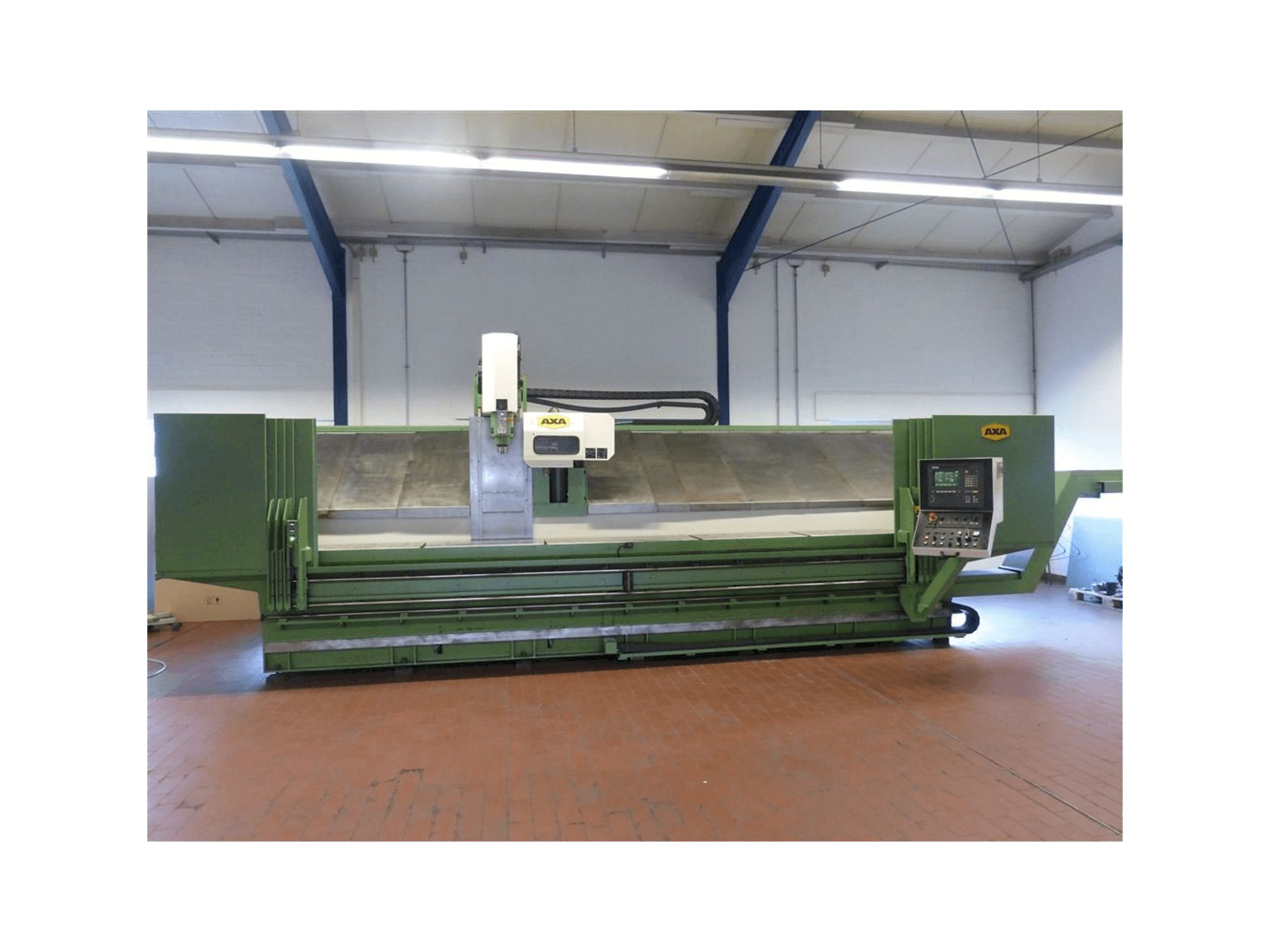

This AXA VSC 1-5000M/E Vertical Machining Center was manufactured in 1998 and overhauled in 2020. It is equipped with a SIEMENS 810 M/GA3 control unit. This 3 axis machine has a spindle speed range 40 - 6000 rpm and a table dimension of 5470 mm x 500 mm. It got a renewal of the emulsion hoses for external cooling and a replacement of the workspace discs and the rubber surrounds between other benefits in its last inspection.
Overview
- brand: AXA
- year: 1998
- MODEL: VSC 1-5000M/E
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: SIEMENS
- GINDUMAC ID: DE-MIL-AXA-1998-00001
Technical Information
Control Unit
- Brand: SIEMENS
- Model: 810 M/GA3
Main drive
- Spindle speed range: 40 - 6000 1/MIN
- Tool taper: SK 40
- Number of axis: 3
Movement
- X-AXIS Movement: 5000 mm
- Y-AXIS Movement: 420 mm
- Z-AXIS Movement: 480 mm
Table
- Outer length: 5470 mm
- Outer width: 500 mm
- Min distance between vertical spindle and table: 170 mm
- Max distance between vertical spindle and table: 650 mm
Tools
- Number of stations: 30
- Type of tool holder: SK 40 DIN69871A / 69872A
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - New bearing of the main spindle
- - Pendulum stroke: 2 x 2300 mm
- - In pendulum operation with pendulum stroke in the x-axis, protection is provided by a safety circuit for side detection
- - Siemens three-phase motor with spindle blow-out device during tool change
- - Chain magazine moving in the x-axis
- - Measuring system in x/y/z: direct linear; heidenhain glass scales in x, y, z axes protected in aluminium housing
- - X / y basic slide, z column and slide as well as the are made of high-quality machine cast iron
- - Hinged belt chip conveyor - discharge right - 300mm feed width, discharge height approx. 1250 mm
- - Checking of the emergency stop and safety door safety functions (if necessary, the delivery state is (if necessary, the delivery condition is restored)
- - Replacement of defective switches
- Qualitative Machine Benefits:
- - Cleaning of the machine
- - Partial painting of the machine parts
- - Renewal of the emulsion hoses for external cooling
- - Replacement of the workspace discs and the rubber surrounds
- - Surface grinding of the machine tables and readjustment according to the alignment groove
- - General overhaul of the slide linings of the cross slide of the x-axis
- - New bearing of the main spindle in the axa factory
- - Replacement of other defective mechanical parts with original or identical parts
- - Checking of the electrical cables for damage and cable breakage and
- - New measuring system cables in the x-axis and to the main spindle
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
