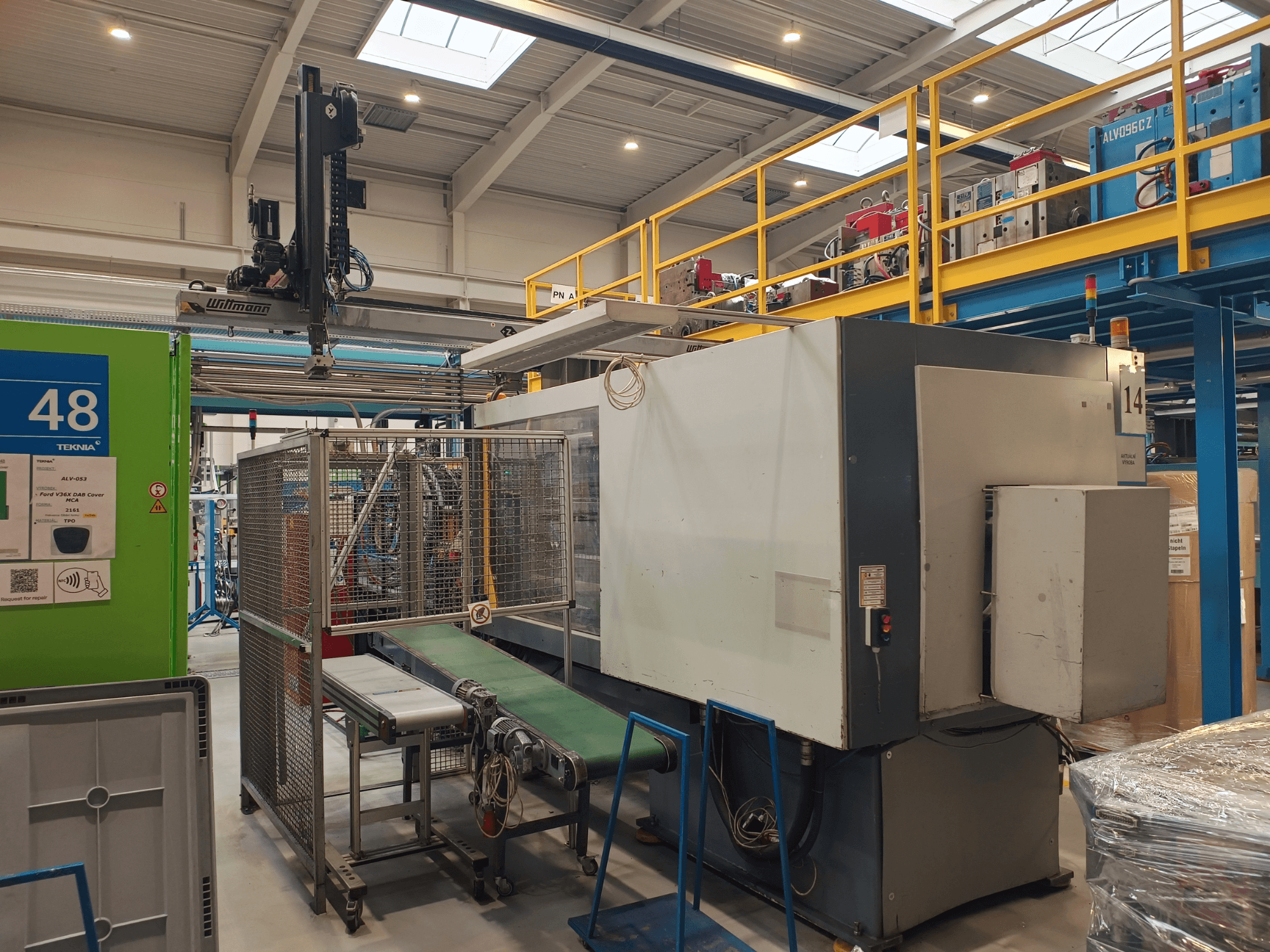

This Battenfelds BAT BA 4500/1900 BK hydraulic injection moulding machine was manufactured in 1999. It features a press power of 400 tons and a maximum distance between plates of 1530 mm. With a screw diameter of 65 mm and a maximum volume of 772 cm3, this machine is equipped with 2 hydraulic core pullers and includes a Wittmann robot. Consider the opportunity to buy this Battenfelds BAT BA 4500/1900 BK hydraulic injection moulding machine. Contact us for further details.
Overview
- brand: Battenfeld
- year: 1999
- MODEL: BAT BA 4500/1900 BK
- application type: Injection Moulding
- Location: Czech Republic
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Battenfeld BAT BA 4500/1900 BK
Technical Specification
- Screw Diameter: 65 mm
Additional Information
Press power: 400 tons
Between columns (W x H): 800 x 800 mm
Min. mold height: 300 mm
Max. mold height: 815 mm
Max. distance between plates: 1530
Diameter of center ring / height: 200 / 15
Diameter of thread on ejector coupling: M24
Max. volume: 772 cm³
Hydraulic core pullers: 2
Additional equipment
Wittmann robot
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
