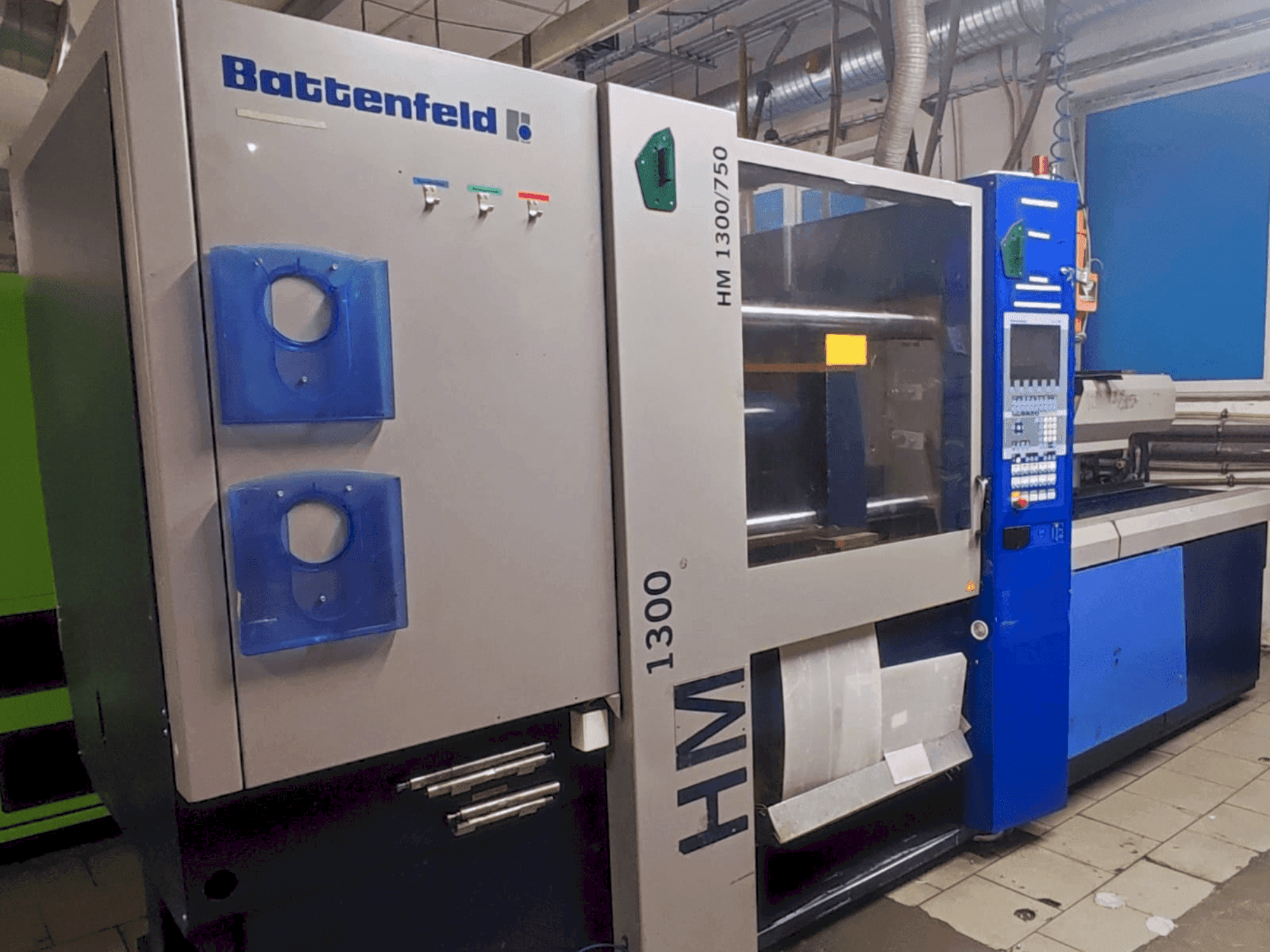

This Battenfeld HM 1300/750 was manufactured in 2004. It features a clamping force of 1,300 kN, injection pressure of 2,116 bar, and a screw diameter of 45 mm. Equipped with a Unilog CC300 B4 control system, it supports a mold height range of 275 to 500 mm. Consider the opportunity to buy this Battenfeld HM 1300/750 hydraulic injection moulding machine. Contact us for more information.
Overview
- brand: Battenfeld
- year: 2004
- MODEL: HM 1300/750
- application type: Injection Moulding
- Location: Czech Republic
- machine type: Hydraulic Injection Moulding Machine
- availability: Immediately
Technical Information - Battenfeld HM 1300/750
Injection Unit
- Screw diameter: 45 mm
- Injection pressure: 2116 bar
Clamping unit
- Clamping force: 1300 kN
- Mould height min: 275 mm
- Mould height max: 500 mm
Additional Information
- Technical Machine Benefits:
- - Cylinder volume: 325 cm³
- - Horizontal clamping plates: 755 mm
- - Vertical clamping plates: 674 mm
- - Passage between columns horizontal: 520 mm // passage between columns vertical: 470 mm
- - Machine opening maximum: 850 mm
- - Control: unilog cc300 b4
- - Hot runner heating: 6
- - Centering ring diameter: 125 mm
- - Core puller: 1
- - Air valve: 1
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
