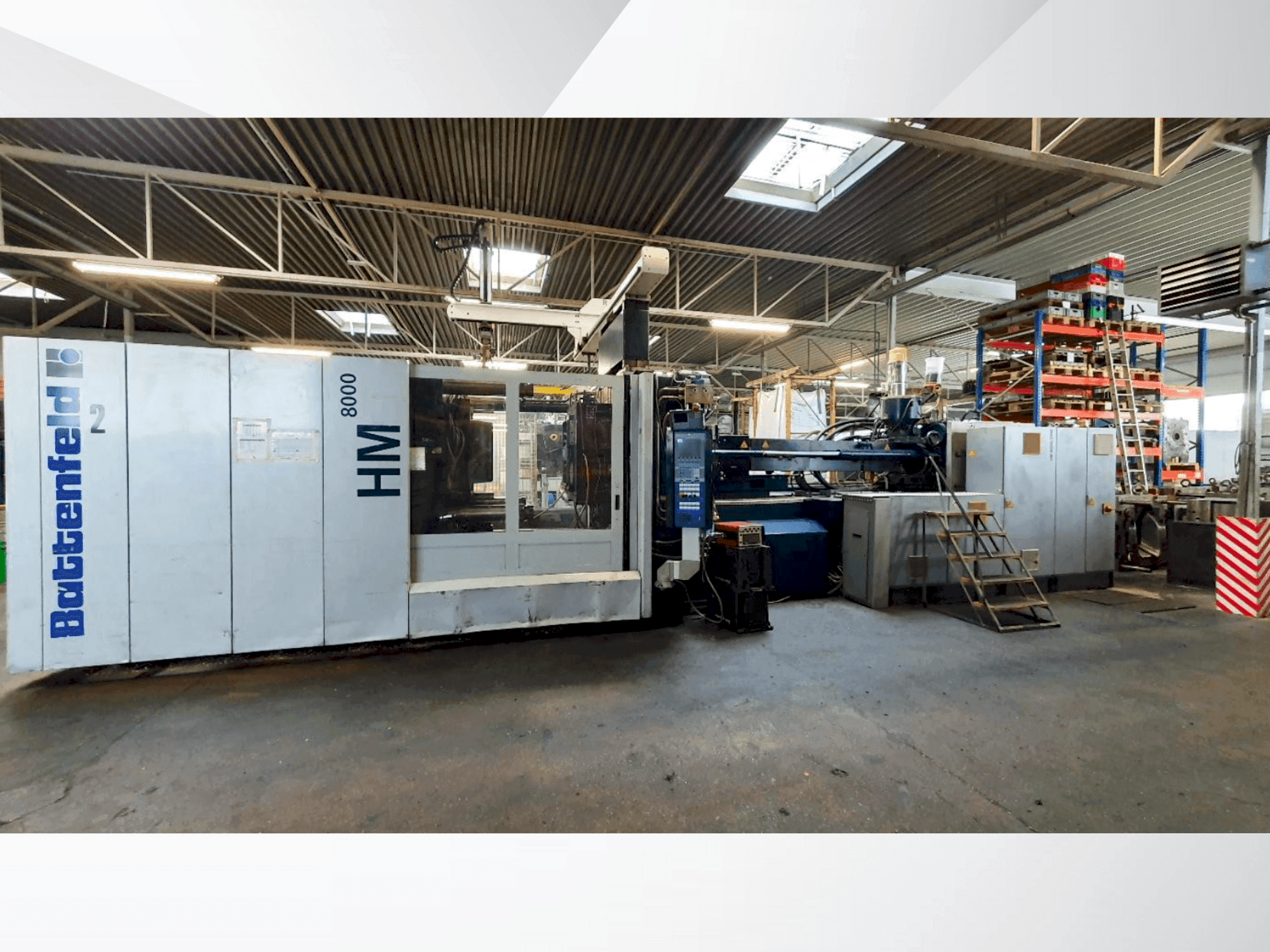

Front view of Battenfeld HM 2P 800-7700  machine

Battenfeld HM 2P 800-7700

Battenfeld - HM 2P 800-7700


49,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp
Show in original language

This Battenfeld HM 2P 800-7700 Injection moulding machine was manufactured in 2003. This machine has an injection unit with a screw diameter of 120mm, specific injection pressure of 1361 bar, and a calculated stroke volume of 5655 cm³, enabling a maximum injection weight of 5146 g. With a clamping force of 8000 kN, clear tie bar spacing of 1120x1020 mm, and platen size of 1620x1530 mm. The mould height is adjustable from 450 to 1100 mm, with an opening force of 480 kN. It operates with a drive power of 110 kW. Contact us anytime for further information.


  • brand: Battenfeld
  • year: 2003
  • MODEL: HM 2P 800-7700
  • production hours: 85000
  • application type: Injection Moulding
  • Location: Austria
  • machine type: Injection Moulding Machines
  • availability: Immediately
  • GINDUMAC ID: AT-INJ-BAT-2003-00001

Technical Information

General Data

  • Machine weight: 14500 KG

Injection Unit

  • Screw diameter: 120
  • Stroke volume: 5655 CM³
  • Injection pressure: 1361 BAR

Clamping unit

  • Clamping force: 8000 KN
  • Opening stroke: 480
  • Distance between bars: 1120 x 1020
  • Mould height min: 450
  • Mould height max: 1100
  • Size of mold platens: 1620 x 1530

    Additional Equipment

    • - Levelling elements
    • - 2x core pull for NW10 nozzle plate
    • - 2x core pull for NW10 clamping plate
    • - 1x pneumatic core pull for clamping plate
    • - 16x digital inputs and 16x digital outputs (freely programmable)
    • - 4x pressure relief valve for NW10 core pull
    • - pneumatic block for controlling 1 shut-off nozzle
    • - 1x pneumatic core pull for nozzle plate
    • - Regulated ejector
    • - T-slots in mould mounting platens

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Drive power 110 kw

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
