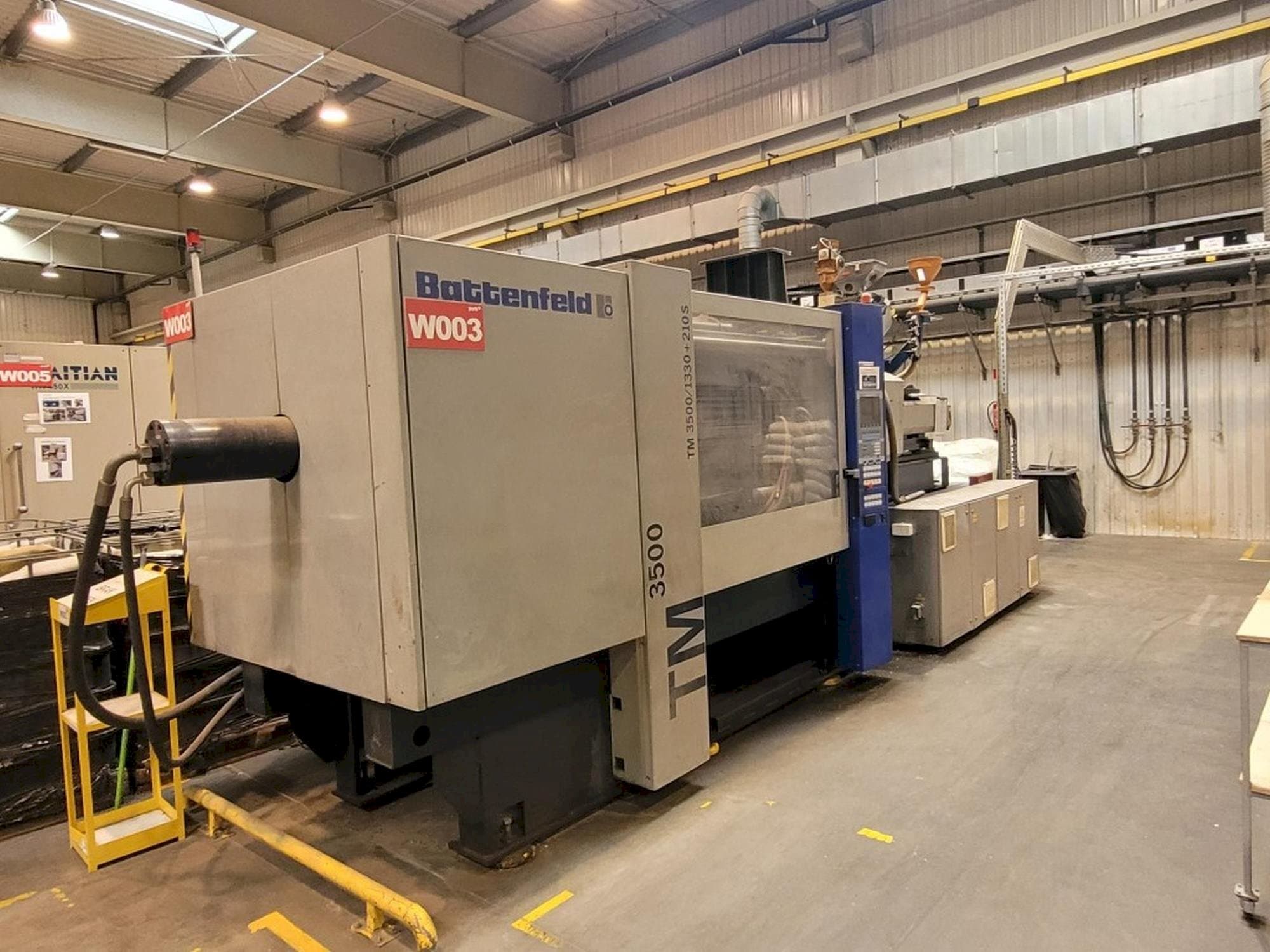

Battenfeld TM 3500/1330+210S Injection moulding machine.

Show in original language

This Battenfeld TM 3500/1330+210S Injection moulding machine was manufactured in the year 2004 and has 73924 working hours. It is equipped with a Battenfeld UNILOG B4 control unit. The machine has a clamping force of 3500 kN and it is equipped with 2 core hydraulics.

Overview

brand: Battenfeld
year: 2004
MODEL: TM 3500/1330+210S
production hours: 73924
application type: Injection Moulding
Location: Poland
machine type: Injection Moulding Machines
availability: Sold
control unit brand: Battenfeld
GINDUMAC ID: PL-INJ-BAT-2004-00003

Technical Information

General Data

Machine weight: 16400 KG

Control Unit

Brand: Battenfeld
Model: UNILOG B4

Clamping unit

Clamping force: 3500 kN

Media

Power consumption: 100 kW

Additional Equipment

- it is equipped with 2 core hydraulics

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Clearance between columns - horizontal 710 mm , clearance between columns - vertical 710 mm
- - Width of table 1010 mm
- - Table height 1080 mm
- - Diameter of centering ring - closing 160 mm. Diameter of centering ring - nozzle a 160 mm. Diameter of centering ring - nozzle b 140 mm
- - Mould height - min 300 mm. Mould height - max 710 mm
- - Max. Opening distance 670 mm, max. Distance between plates 1380 mm
- - Ejector stroke 200
- - Auger diameter a 55 mm, auger diameter b 25 mm
- - Injection pressure 2041 bar
Qualitative Machine Benefits:
- - Ps injection weight - unit a 480 g
- - Injection size ps - unit b 67 g, injection size pp - unit a 393. 6 g. Injection size pp - unit b 55 g
- - Oil tank capacity 800 l
- - Oil type mobil dte excel 46
- - Central lubrication orlen velol rc 220
- - Oil of the aggregate access system none
- - Pump motor power 75 kw
- - Cylinder heating power 25 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
