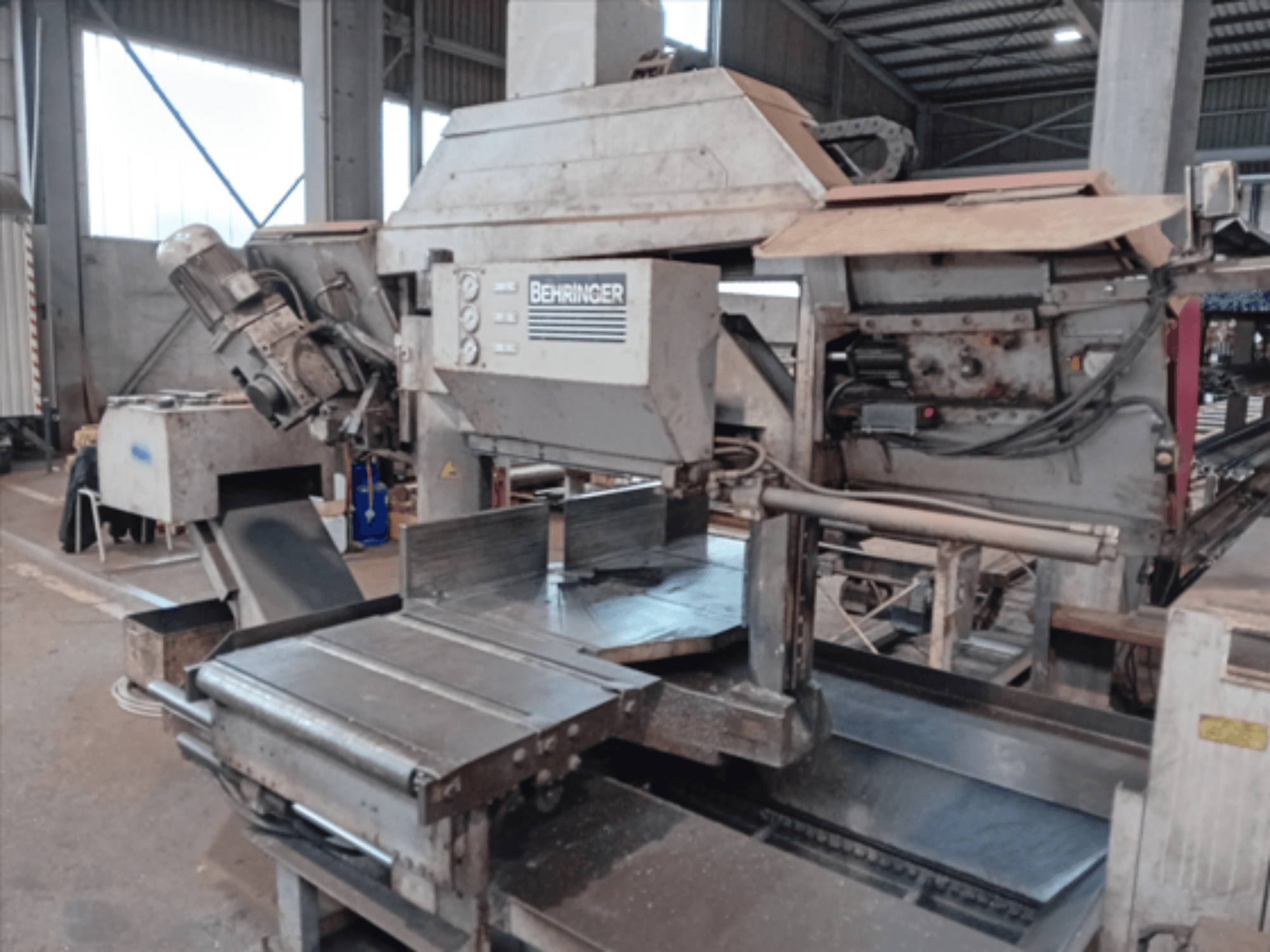

Behringer - HBP 420-723 GDE-SAW-BEH-2004-00001

• Working area – Ø / flat at 90°: 420 mm / 720 mm x 420 mm

• Working area – Ø / flat at 75° left: 420 mm / 710 mm x 420 mm

• Working area – Ø / flat at 60° left: 420 mm / 550 mm x 420 mm

• Working area – Ø / flat at 45° left: 420 mm / 450 mm x 420 mm

• Working area – Ø / flat at 30° left: 420 mm / 250 mm x 420 mm

• Working area – Ø / flat at 75° right: 420 mm / 710 mm x 420 mm

• Working area – Ø / flat at 60° right: 420 mm / 550 mm x 420 mm

• Working area – Ø / flat at 45° right: 420 mm / 450 mm x 420 mm

• Working area – Ø / flat at 30° right: 420 mm / 250 mm x 420 mm

• Smallest material dimensions – Ø / flat: 10 mm / 10 mm x 10 mm

• Smallest cutting length (90°): approx. 90 mm

• Remaining cutting length (manual, 90°): approx. 90 mm

• Cutting speed: 10–120 m/min

• System/belt tensioning pressure: 95 bar

• Connected load: approx. 9 kW

• Voltage: 400 V, 50 Hz

• Control/hydraulic valve voltage: 24 V DC

• Current consumption: approx. 18 A

• Fuse protection: 35 A

• Cable cross-section: min. 4 x 6 mm²

• Material support height: 800 mm

Additional equipment

• Silberland B 660 powered roller conveyor, 15 m (year of manufacture: 2010)

• Chip conveyor (0.15 kW motor)
