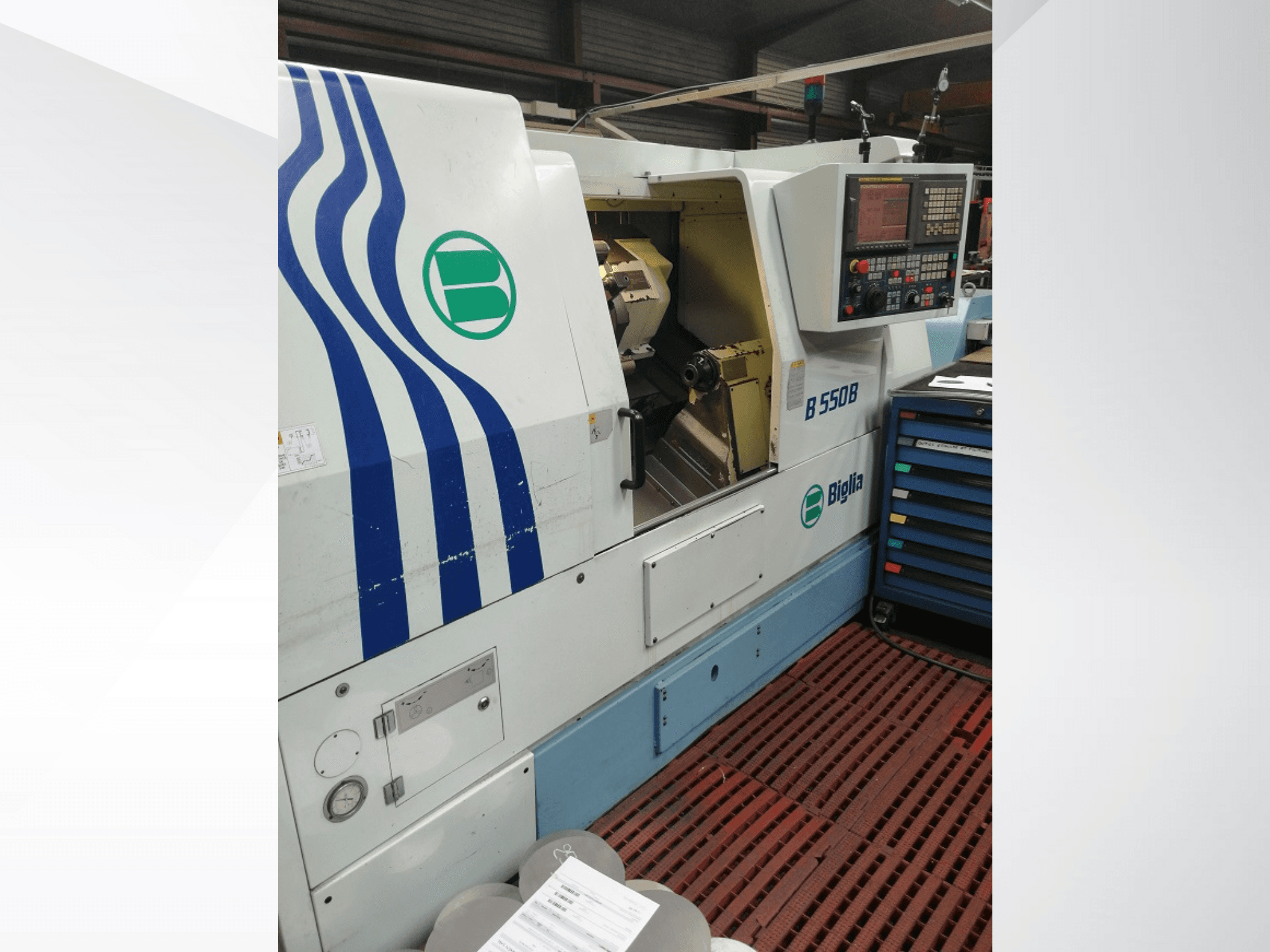

This Biglia B550B was manufactured in 2005. A robust horizontal turning machine featuring a 2-Axis CNC Lathe, it handles a bar diameter of 65 mm and a maximum machining diameter of 296 mm. It includes a 12-position automatic turret and a CNC automatic tailstock, enhancing its operational efficiency. Ideal for precision machining with a spindle speed of up to 4000 rpm. Contact us for more information about this machine.
Overview
- brand: Biglia
- year: 2005
- MODEL: B550B
- application type: Turning
- Location: France
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Biglia B550B
Control Unit
- Control Brand: FANUC
- Control Model: 21i-TB
Dimensions
- Machine Depth: 1980 mm
- Machine Height: 1900 mm
- Machine Length: 4230 mm
- Machine Weight: 4600 kg
Additional Information
Spindle Speed: 40-4000 rpm
Rapid Feed Rate: 20 m/min
Bar Diameter: 65 mm
Maximum Machining Diameter: 296 mm
Maximum Swing Diameter: 580 mm
Maximum Machining Length: 550 mm
12-Position Automatic Turret
Chip Conveyor
Documentation
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
