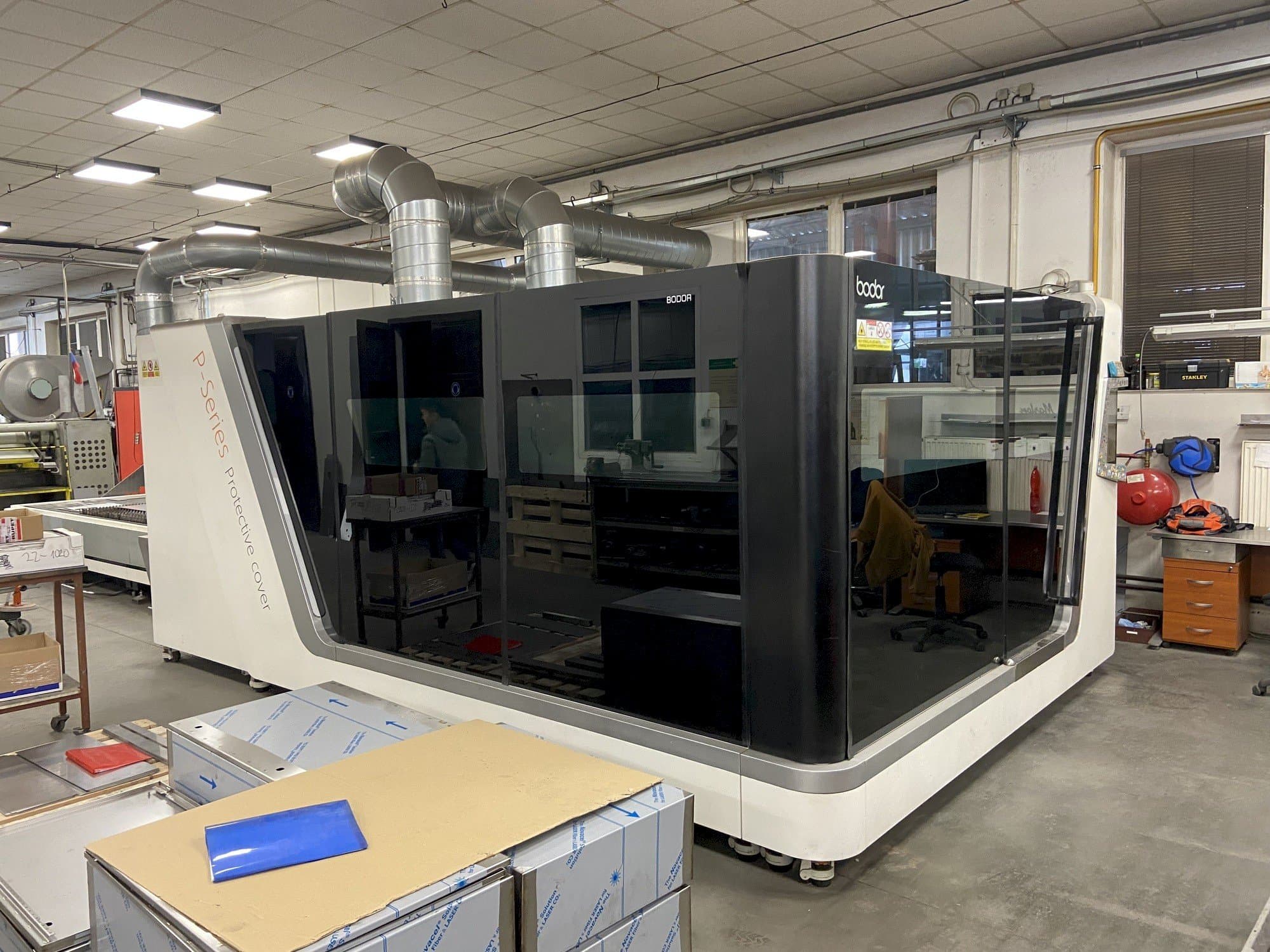

This Bodor P3 Fiber Laser cutting machine was manufactured in the year 2018 in China. It is equipped with a Bodor control unit. The machine has a laser power of 1 kW.
Overview
- brand: Bodor
- year: 2018
- MODEL: P3
- application type: Laser Cutting
- Location: Czech Republic
- machine type: Fiber laser cutting machines
- availability: Sold
- control unit brand: Bodor
Technical Information - Bodor P3
General Data
- Measurements width: 9950 mm
- Measurements depth: 3050 mm
- Measurements height: 2300 mm
- Machine weight: 6400 kg
Control Unit
- Brand: Bodor
Main drive
- Laserpower: 1 kW
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 1500 mm
- Z-AXIS Movement: 315 mm
Workpiece
- Workpiece weight: 1400 kg
Max Material thickness
- Steel: 6 mm
- Stainless steel: 3 mm
- Aluminum: 2 mm
Additional Information
- Technical Machine Benefits:
- - Laser source ipg
- - Ray tool head + 1 supplementary head
- - Max. Speed 90 m/min
- - Interchangeable tables
- - Yaskawa servomotors and drives
- Qualitative Machine Benefits:
- - Very good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
