➤ Used BOEHRINGER DUC 560/2000 For Sale | gindumac.com

Show in original language

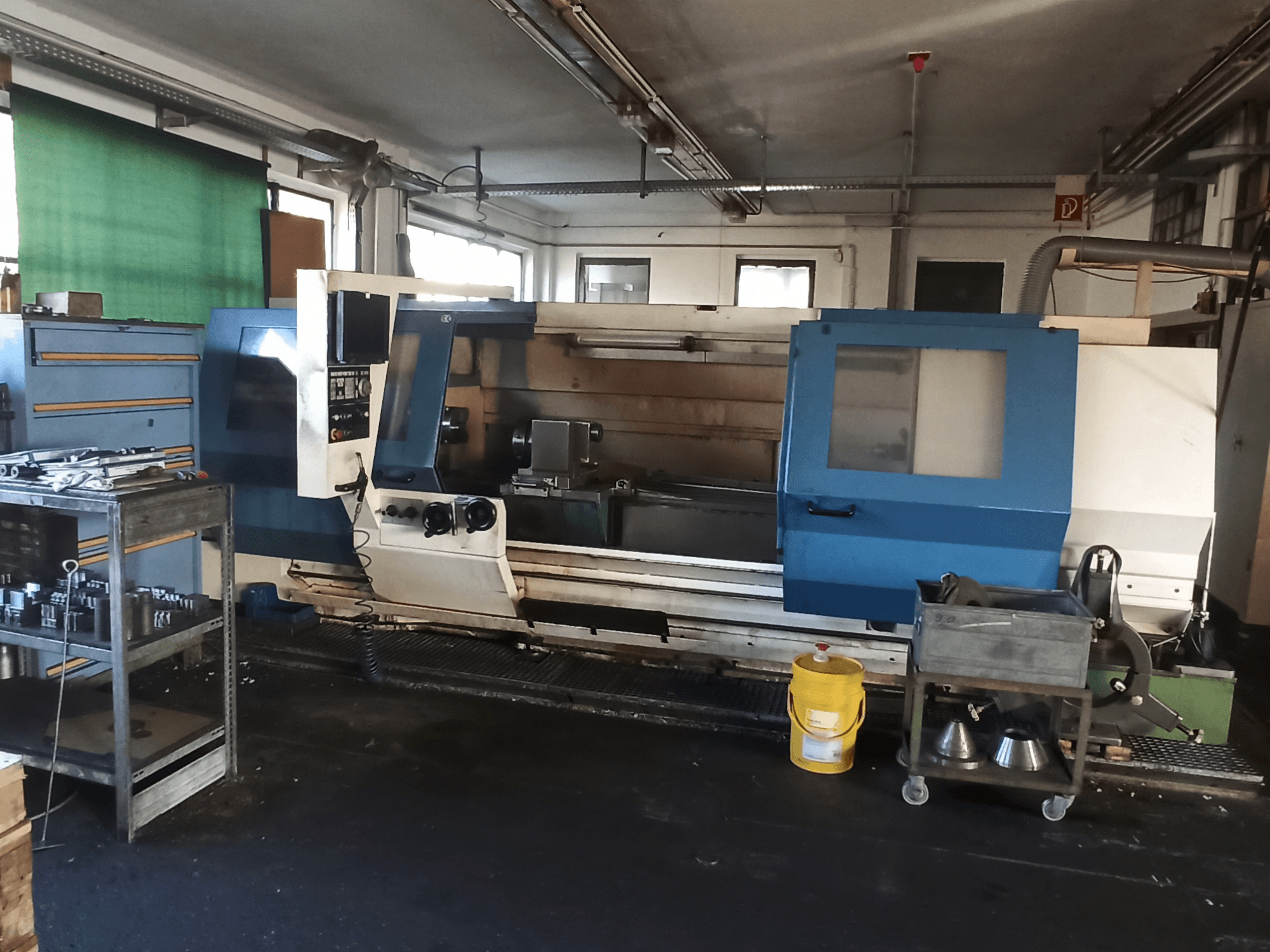

Horizontal turning machine manufactured in 1997. This BOEHRINGER DUC 560/2000 features a maximum turning diameter of 570 mm and a turning length of 2000 mm. It includes an 8-position disc turret and a three-jaw chuck with a diameter of 200 mm. If you are looking to get high-quality turning capabilities, consider the BOEHRINGER DUC 560/2000 machine we have for sale. Contact us for further details.

Overview

brand: BOEHRINGER
year: 1997
MODEL: DUC 560/2000
production hours: 34000
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - BOEHRINGER DUC 560/2000

Movement

Number of Axes: 2
X-axis Travel: 570 mm
Z-axis Travel: 2000 mm

Technical Specification

Counter Spindle: No
Driven Tools: No

Additional Information

- Main Drive: 19 kW

- Machine Control: NUM / Keller/Plus (IBM Monitor setup)

- Maximum Torque Duty Cycle: 60% / 100%

- Torque: 1800 / 1400 Nm

- Max Rapid Traverse (Longitudinal/Cross): 10 / 5 m/min

- Tool Turret: 8-position disc turret, Sauter VDI 30

- Chuck: Forkardt three-jaw chuck installed, diameter 200 mm

- Included Accessories: Steady rest

- Operational Status: Out of service since mid-2023 due to operator retirement

- Operating Hours: Approx. 34,000 hours (single-shift operation/power-on time)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
