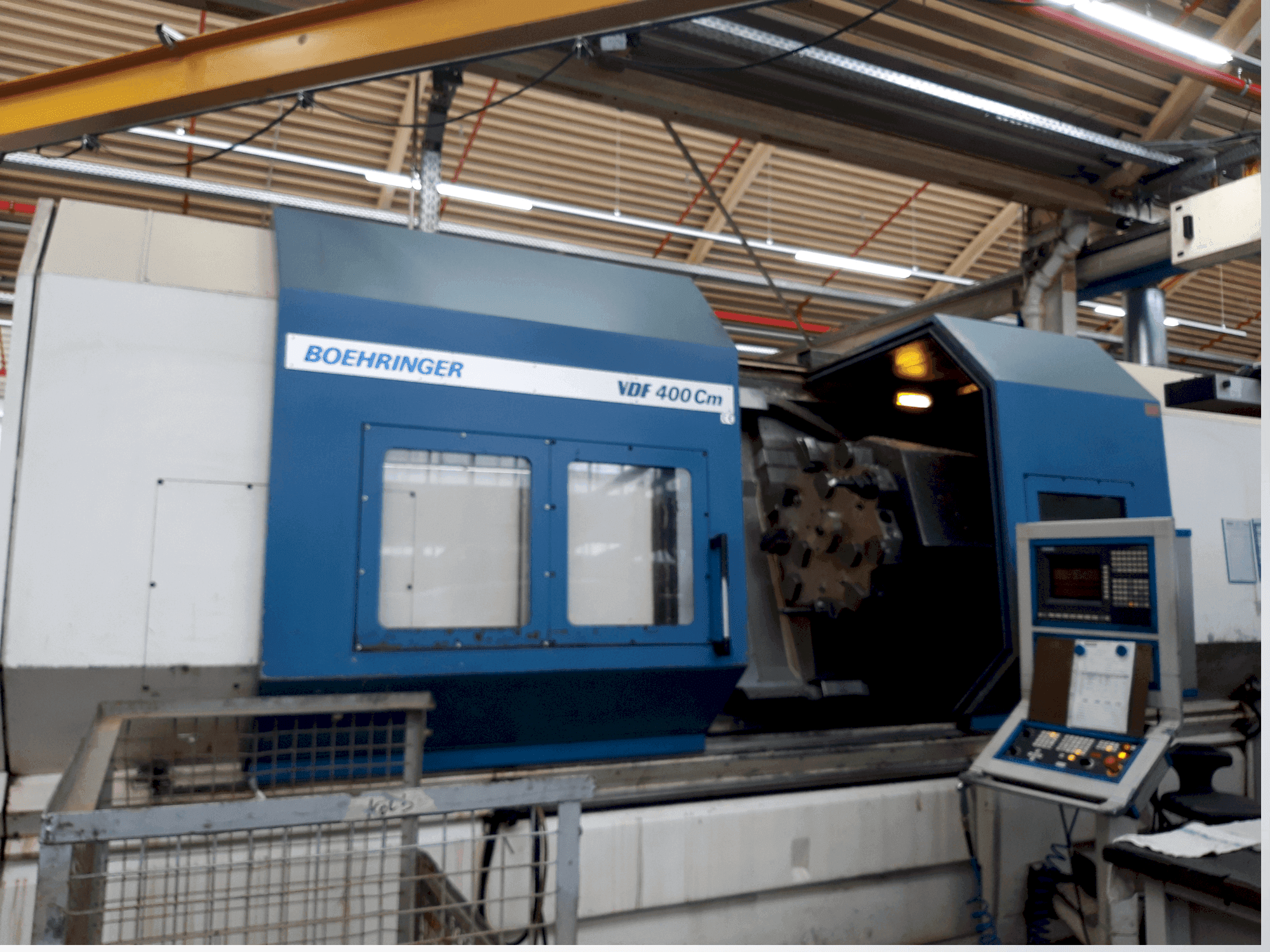

BOEHRINGER VDF 400 CM

Photo Gallery

BOEHRINGER - VDF 400 CMDE-TUR-BOE-1998-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used BOEHRINGER VDF 400 CM Lathe For sale | gindumac.com

Show in original language

This Lathes was manufactured in 1998. The BOEHRINGER VDF 400 CM features a Siemens Sinumerik 840 C control, a spindle bore of 132 mm, and a maximum turning diameter of 700 mm. It includes a high-capacity coolant system and an integrated chip conveyor for efficient operation. Ideal for those looking to buy this BOEHRINGER VDF 400 CM Lathes. Contact us for more information.

Overview

brand: BOEHRINGER
year: 1998
MODEL: VDF 400 CM
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - BOEHRINGER VDF 400 CM

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840 C

Dimensions

Machine Depth: 5365 mm
Machine Height: 2855 mm
Machine Weight: 23000 kg

Technical Specification

Spindle Power: 65 kW
Spindle Speed: 2000 RPM

Additional Information

Additional equipment

Chip conveyor: integrated longitudinally with a discharge height of 1250 mm
Coolant device: large capacity tank (min. 340 l), high delivery rate (40 l/min at 1 bar)
the chuck is included in the accessories, it is a Röhm KFD-AF 500/3 chuck.
C axle available

Machine Benefits

Qualitative Machine Benefits

Simple maintenance and installation of chip conveyor
High coolant delivery rate supports modern cutting and drilling tools
The machine has a functioning and stable steady rest

Technical Machine Benefits

High feed force
Dynamic ac servo motor per axis
Collision protection for drive elements
Programmable coolant supply for each tool
Turning length in mm 2000.
Swing diameter above the bed in mm 750.
Traverse path of the bed slide 2224.
Turning length of 2000 mm.

Extra Information

Steady rest: Originally installed but removed due to defectiveness. Tailstock: Included with a quill outer diameter of 130 mm and stroke of 120 mm. Hydraulic unit: Central unit for various machine functions with variable clamping pressure adjustment. Feed drive: Features high dynamics and protection class IP 64. Main spindle head: DIN 55026-A15.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
