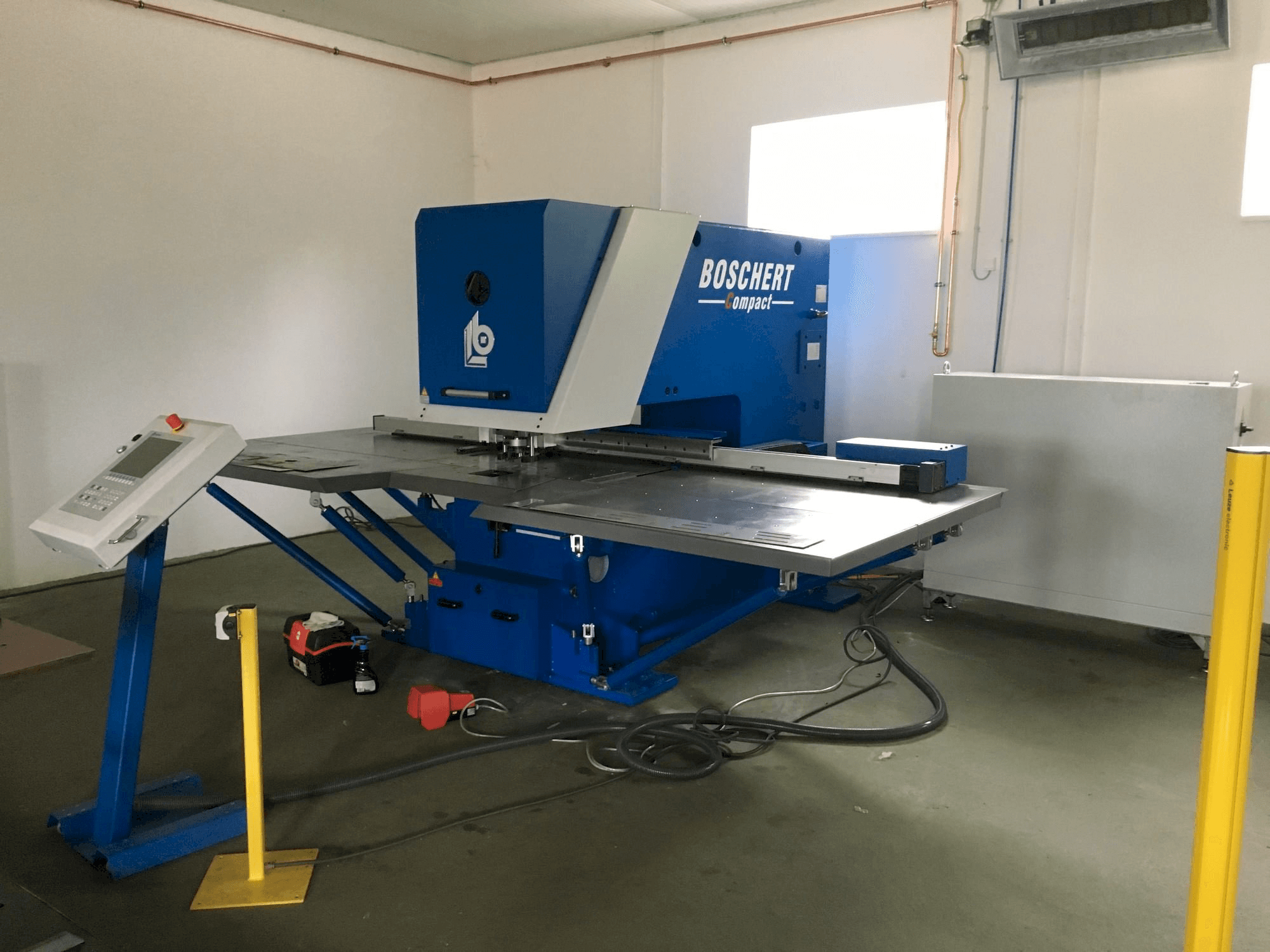

Front view of BOSCHERT Compact 750  machine

BOSCHERT - Compact 750HU-PUN-BOS-2018-00001

45,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This BOSCHERT Compact 750 Punching machine was manufactured in 2018. It has a table size of 750 mm (X-axis) and 2000 mm (Y-axis) and a punching depth of 750 mm with a maximum punching diameter of 105 mm. This punching machine is equipped with a punching force of up to 40 tons. Maximum cutting thickness for normal steel is at 6mm. It is build in a C-frame construction with appropriate oversizing. The cantilever structure allows for machining of parts larger than the machining space.

Overview

  • brand: BOSCHERT
  • year: 2018
  • MODEL: Compact 750
  • production hours: 40
  • application type: Bending & Punching
  • Location: Hungary
  • machine type: Turret Punch Press
  • availability: Immediately

Technical Information - BOSCHERT Compact 750

General Data

  • Measurements width: 4000 mm
  • Measurements depth: 3165 mm
  • Measurements height: 2100 mm
  • Machine weight: 14500 kg

Main drive

  • Punching force: up to 40 tons KN
  • Main motor power: 18 kW

Movement

  • X-AXIS Movement: 750 mm
  • Y-AXIS Movement: 2000 mm

Media

  • Oil tank: 115 l

    Additional Equipment

    • - Stripper holder with slots for pins
    • - Punch adjustment ring for punches up to diam. 30mm
    • - Punch adjustment ring for punches over diam. 30mm
    • - Punch holder for needles up to 6mm
    • - Punch holder for needles up to 10.5mm
    • - Punch adjustment unit for rectangle. oblong and square tools

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Punching force up to 40 tons
        • - Punching depth: 750 mm
        • - Maximum punching diameter: 105 mm
        • - Maximum stroke length: 90 mm
        • - Maximum cutting material thickness for normal steel: 6 mm
        • - Nibbling sequence: 3 mm
        • - Table height: 905 mm
        • - Positioning accuracy: 0. 1 mm // x-axis movement speed: 1,000 mm/s // y-axis movement speed: 1,000 mm/s // stroke rate at 20mm stroke: 155 strokes/minute
        • - Displacement x: 0-810 mm, y: 0-2080 mm
        • - Maximum positioning speed on the x-axis: 60 meters/minute // maximum positioning speed on the y-axis: 30 meters/minute // positioning accuracy for sheet movement: 0. 1 mm
      • Qualitative Machine Benefits:
        • - Steel machine table with a gritted surface
        • - C-frame construction with appropriate oversizing. The cantilever structure allows for machining of parts larger than the machining space
        • - Hydraulic operation for adequate force even with large sheet thicknesses
        • - Programmable stroke length adjustment // photocell workspace protection
        • - Sheet lifter device with 2 pneumatic cylinders for movement
        • - Multi-tool memory expansion with usb and lan connections for labod control
        • - Automatic repositioning up to a maximum of x-9000mm
        • - Two guide rails on the left and right sides for precise suspension of the axes // adjustable positioning speed allows manual movement of the axes in any direction
        • - Screwing and drilling attachment // fast hydraulic / 800 strokes at marking
        • - Automatic clamp positioning // marking device

      Extra information

      • - Two-axis graphical CNC control system LABOD PC // Waste removal suction // Spray lubrication // Revotool without rotation for standard head // Revotool index only for rotation // Balls brushes in the table // Cnc / had software to import dxf files // CE compliance

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
