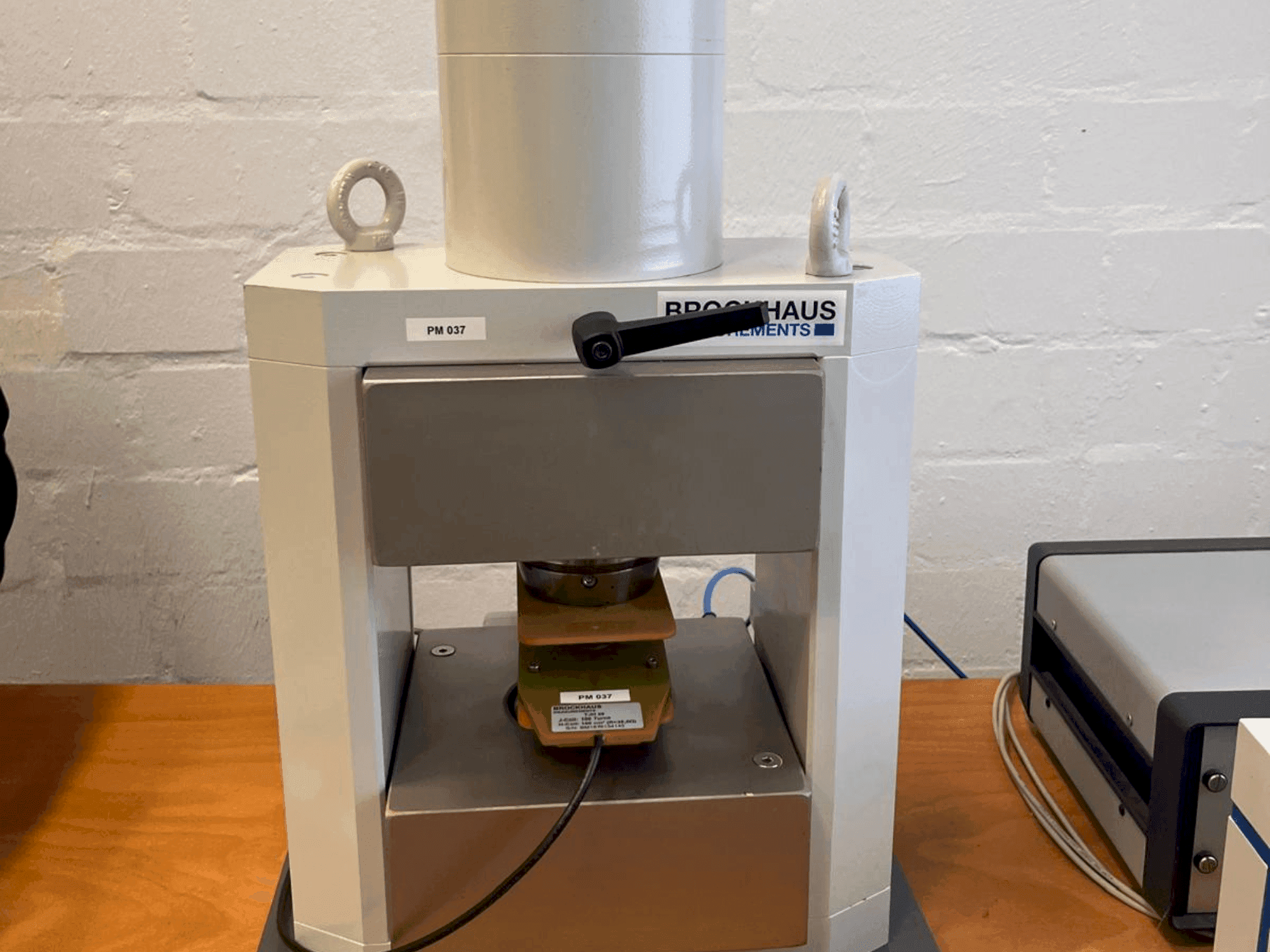

BROCKHAUS - HG200 DDE-MEA-BRO-2018-00001

Additional Equipment

• - Includes coil TJH 26
• - Includes Fluxmeter F10-3D

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Measuring ranges: 1, 10, 100 mvs and ± 1vs
  • - Drift: < ±1µvs/min
  • - Measuring coils: surrounding coils, pole coils, field coils
  • - Power supply: 0 to ±125v, 0 to ± 25a (50a optional)
  • - Electromagnet with interchangeable poles and coil fixture
  • - Maximum field strength: 1200 – 1800 ka/m; 2400 ka/m; 3200 ka/m (dependent on air gap)
  • - Air gap: 0 – 80mm
  • - Measuring poles: interchangeable
  • - Cabinet measuring table with container
  • - Mains supply: 3 x 200 – 3 x 400v ac, 16a 50/60hz

Extra information

• - Control Unit Fully computer-controlled measuring system Computer: PC, monitor, printer Software: MAG Expert under Windows Machine-Specific Data Measurement capabilities: All hard magnetic materials (AlNiCo, ferrite, SmCo, NdFeB, plastic composite) Measurement with constant flux alteration d/dt J-compensated surrounding coils, pole or field coils Measurement at temperatures up to 200°C Real-time display of hysteresis during measurement BROCKHAUS® MAG Expert software for measurement, presentation, and integration into QM systems Electromagnet with heating poles J-compensated coil; Potential coil Other measuring systems: AC/DC Hystograph, XYZ Field Scanner, Fluxmeter, Gaussmeter Measuring technology for soft magnetic materials Magnetizing technology Hystograph HG 200 Segment pole caps, Field coil, Measuring fixture with 2 drift-free Fluxmeters
