- Brother TC-22A vertical machine center

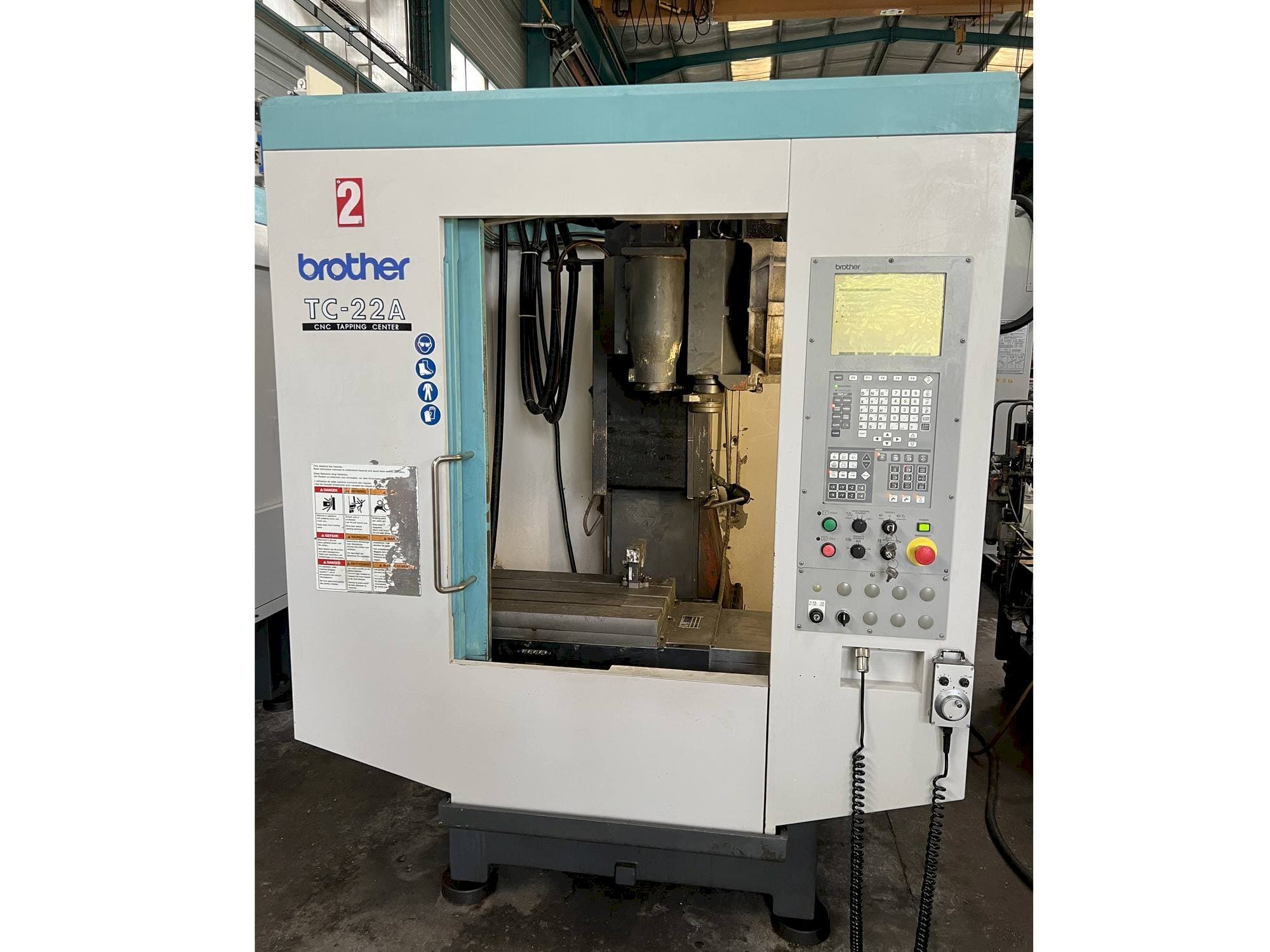

This Brother TC-22A vertical machine center was built in the year 1999 in Japan. It is equipped with a BROTHER A00 control unit. The machine has a spindle speed of 100 - 12000 rpm.
Overview
- brand: Brother
- year: 1999
- MODEL: TC-22A
- application type: Milling
- Location: France
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: BROTHER
Technical Information - Brother TC-22A
General Data
- Measurements width: 1640 mm
- Measurements depth: 2100 mm
- Measurements height: 2274 mm
- Machine weight: 2250 kg
Control Unit
- Model: A00
- Brand: BROTHER
Main drive
- Spindle speed range: 100 - 12.000 1/MIN
- Tool taper: BT30
Movement
- X-AXIS Movement: 500 mm
- Y-AXIS Movement: 410 mm
- Z-AXIS Movement: 610 mm
Table
- Outer length: 650 mm
- Outer width: 400 mm
- Table load: 200 kg
Media
- Main electronic connection: 400 V
- Power consumption: 11 kW
Additional Information
- Technical Machine Benefits:
- - Magazine tool capacity: 26 tools
- - Tool selection: random
- - Tool exchange time: 0,7 sec
- - Interface: ethernet
- - Watering system
- - Set of toll holders & chucks
- Qualitative Machine Benefits:
- - Complete documentation
- - The machines have been fully revised and prepared
- - 100% ready for production
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
