- Brother TC-32 BN QT Vertical Machine Center

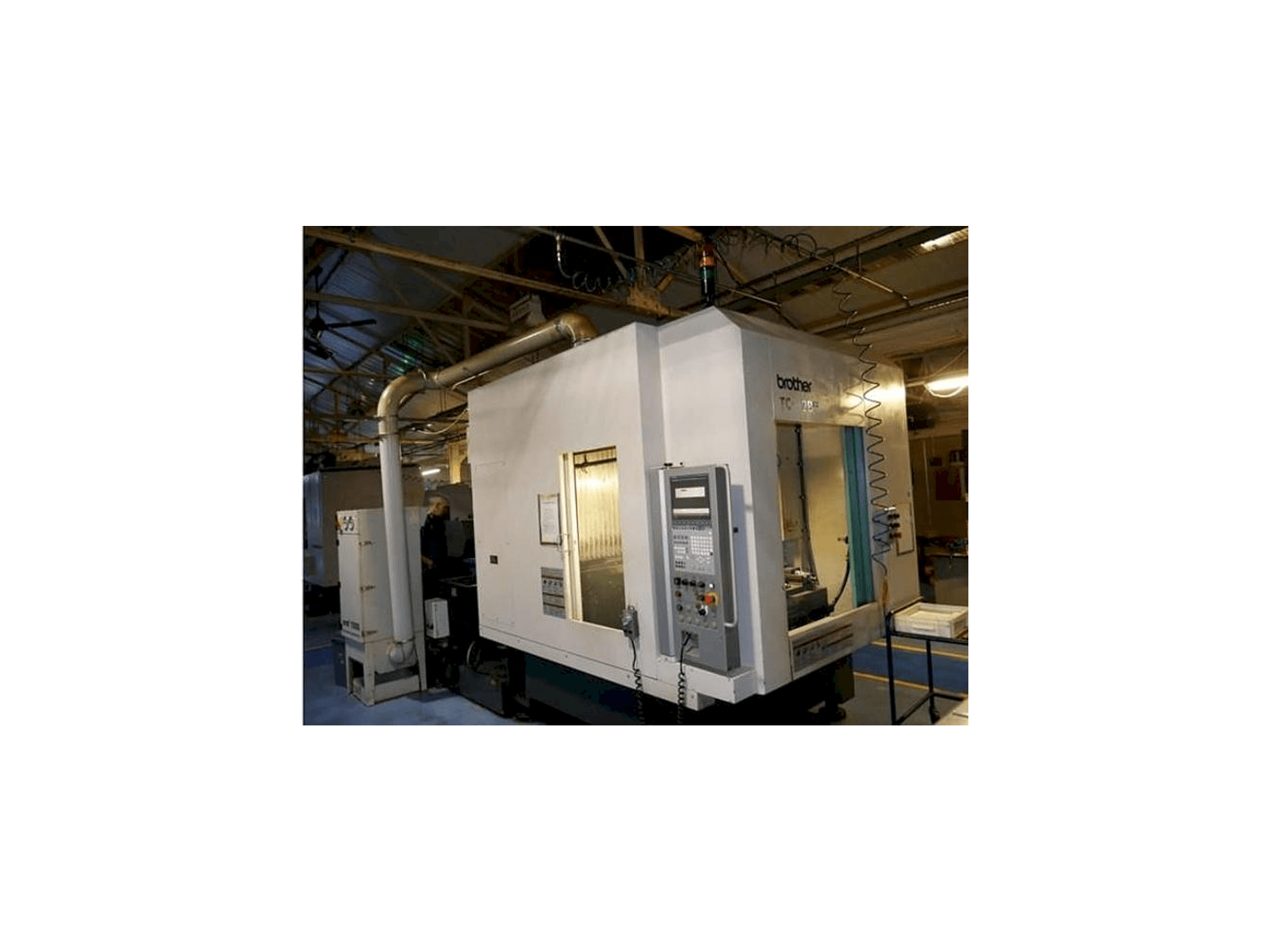

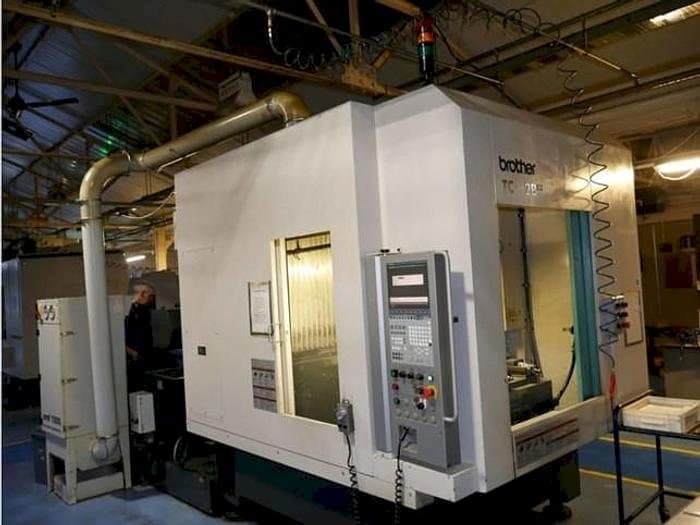

This Brother TC-32 BN QT Vertical Machine Center was manufactured in 2006. It is equipped with a Brother control unit. The machine has a spindle speed of 16 - 16000 rpm.
Overview
- brand: Brother
- year: 2006
- MODEL: TC-32 BN QT
- application type: Milling
- Location: Italy
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Brother
Technical Information - Brother TC-32 BN QT
Control Unit
- Brand: Brother
Main drive
- Spindle speed range: 16 - 16000 1/MIN
- Spindle motor power: 10 kw
- Number of axis: 3
Movement
- X-AXIS Movement: 550 mm
- X-AXIS Rapid traverse: 70 m/min
- Y-AXIS Movement: 400 mm
- Y-AXIS Rapid traverse: 70 m/min
- Z-AXIS Movement: 415 mm
- Z-AXIS Rapid traverse: 70 m/min
Table
- Outer length: 600 mm
- Outer width: 425 mm
- Table load: 200 kg
Additional Equipment
- - Chip conveyor, Through spindle coolant
Additional Information
- Technical Machine Benefits:
- - Distance between table-spindle nose: 645 mm
- - Spindle taper: nikken nc5
- - Tool turret atc: 26+1 positions
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
