Bumotec S-192FT
Bumotec - S-192FT
2006
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Bumotec S-192FT lathe machine

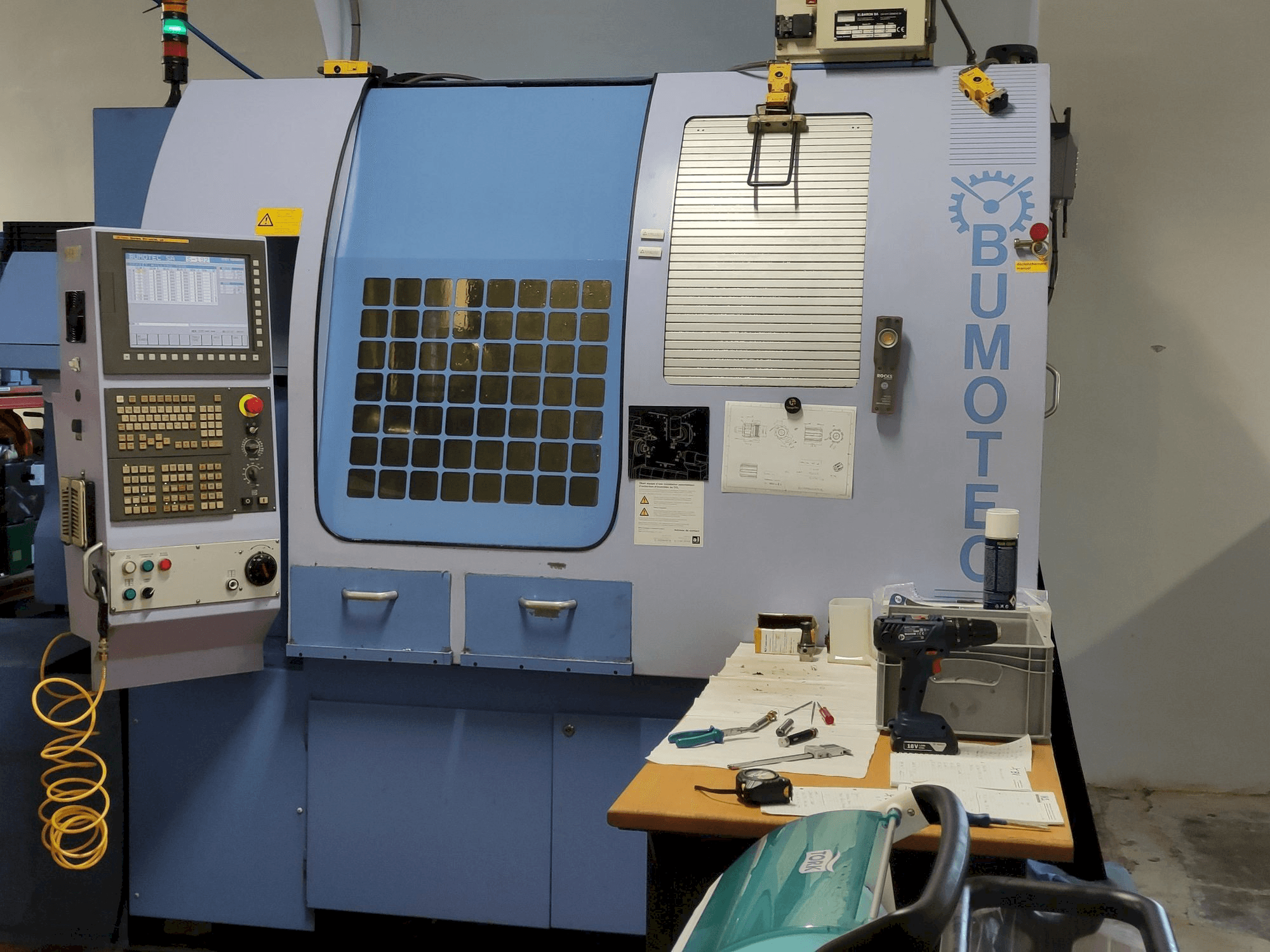

This Bumotec S-192FT lathe machine was manufactured in 2006 in Switzerland. The 7-axis machine is operated through a Fanuc Series 31 control unit and has 7174 working hours. This machine has 2 spindles, the main one can work with a spindle speed up to 6000 rpm, and the sub-spindle can work with a spindle speed up to 5000 rpm. The machine is in perfect condition.
Overview
- brand: Bumotec
- year: 2006
- MODEL: S-192FT
- production hours: 7174
- application type: Turning
- Location: Czech Republic
- machine type: Lathe
- availability: Sold
- control unit brand: Fanuc
- GINDUMAC ID: CZ-TUR-BUM-2006-00001
Technical Information
General Data
- Measurements width: 2548 mm
- Measurements depth: 1922 mm
- Measurements height: 2686 mm
- Machine weight: 6500 kg
Control Unit
- Brand: Fanuc
- Model: Series 31
Main drive
- Number of spindles: 2
- Spindle speed range: 6000 1/MIN
- Spindle motor power: 14 kW
- Number of axis: 7
Movement
- X-AXIS Movement: 200 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 650 mm
Tools
- Slots in storage: 30
- Type of tool holder: HSK 40
Additional Information
- Technical Machine Benefits:
- - B-axis milling head speed 30. 000 rpm, power 10 kw
- - B-axis tiltable + 25° / - 115°, torque 84 / 150 nm
- - Main spindle bar passage 42 mm
- - Sub-spindle speed 5000 rpm, power 9. 7 kw
- Qualitative Machine Benefits:
- - Good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
