Bystronic BySprint 3015
Bystronic - BySprint 3015
2006
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Bystronic BySprint 3015 Laser Cutting Machine

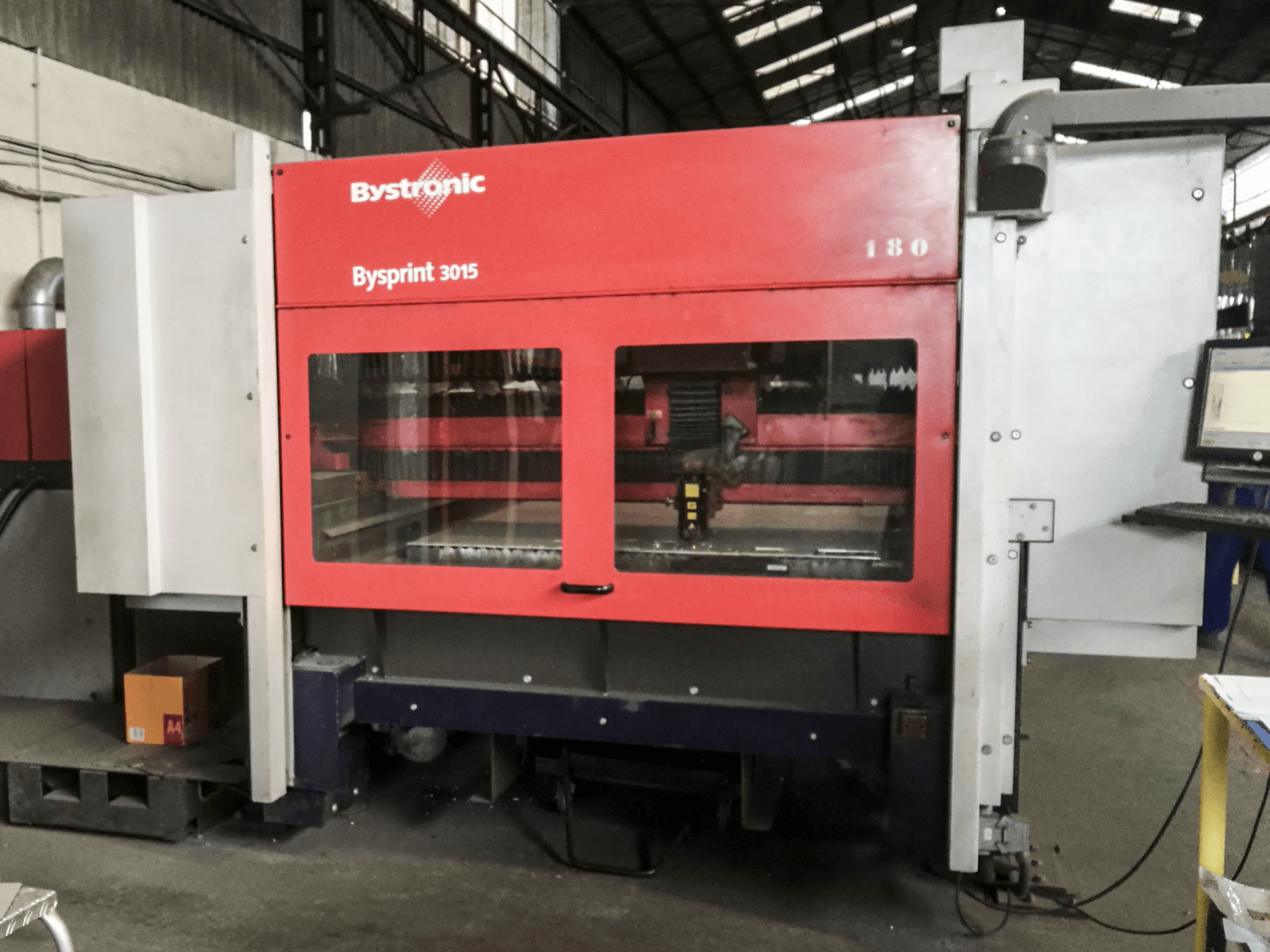

This Bystronic BySprint 3015 Laser Cutting Machine was manufactured in 2006 in Switzerland and has a working record of 30496 production hours of which the laser was switched on for 20211 hours. Operated through a ByVision P8008B Control unit, this 3 kW laser cutter comes in good conditions due to regular Bystronic maintenance.
Overview
- brand: Bystronic
- year: 2006
- MODEL: BySprint 3015
- production hours: 30496
- application type: Laser Cutting
- Location: Spain
- machine type: Laser Cutting Machines (CO2)
- availability: Sold
- control unit brand: Bystronic
- GINDUMAC ID: ES-LAS-BYS-2006-00002
Technical Information
General Data
- Measurements width: 12900 mm
- Measurements depth: 7000 mm
- Measurements height: 2920 mm
- Machine weight: 12000 kg
Control Unit
- Brand: ByVision
- Model: P8008B
Main drive
- Laserpower: 3 kW
- Laser type: CO2
Movement
- X-AXIS Movement: 3000 mm
- X-AXIS Working Feed: 50 m/min
- Y-AXIS Movement: 1500 mm
- Y-AXIS Working Feed: 50 m/min
- Z-AXIS Movement: 70 mm
Workpiece
- Workpiece x: 3000 mm
- Workpiece y: 1500 mm
- Workpiece z: 70 mm
- Workpiece weight: 750 kg
Max Material thickness
- Steel: 20 mm
- Stainless steel: 12 mm
- Aluminum: 8 mm
Machine specific data
- Number of cutting heads: 2
- Size of cutting head 1: 5"
- Size of cutting head 2: 7.5"
Media
- Main electronic connection: 400 V / 50 Hz
- Power consumption: 45 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
