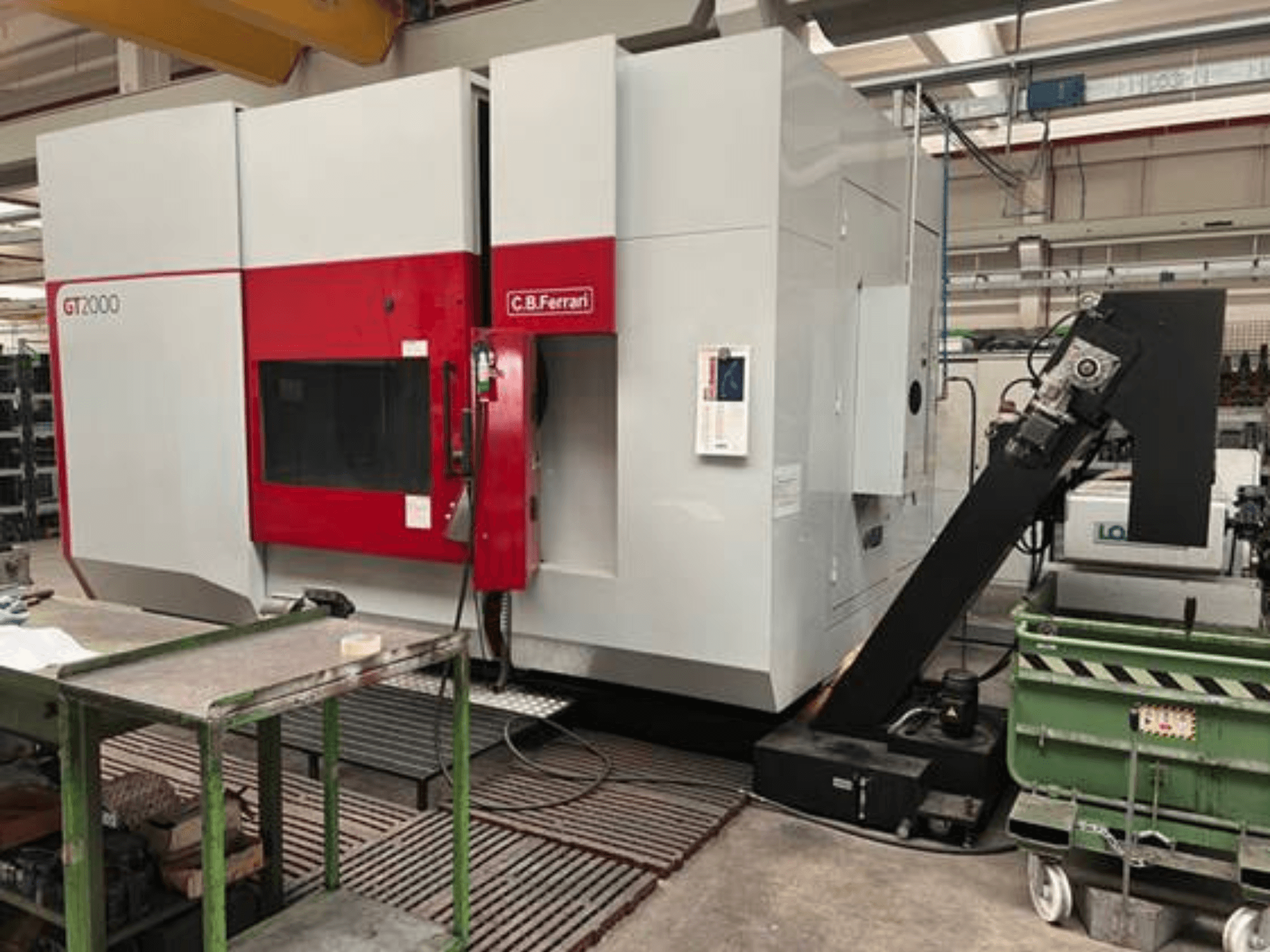

This 5s C.B. Ferrari GT2000 vertical machining centre was manufactured in 2019. It features a 5-axis CNC control with a Heidenhain TNC 640, offering extensive travel capabilities of 2,000 mm on the X-axis and 850 mm on the Z-axis. The machine includes a 30-position rotary tool magazine and an electrospindle with a speed of 16,000 rpm. Consider the opportunity to buy this C.B. Ferrari GT2000 vertical machining centre. Contact us for further details.
Overview
- brand: C.B. Ferrari
- year: 2019
- MODEL: GT2000
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - C.B. Ferrari GT2000
Movement
- Number of Axes: 5
- X-axis Travel: 2000 mm
- Y-axis Travel: 850 mm
- Z-axis Travel: 850 mm
Technical Specification
- Spindle Power: 64 kW
- Spindle Speed: 16000 RPM
Additional Information
Continuous head support
Spindle:
Type: Electrospindle
Tool interface: HSK-A63
Torque: 170 / 236 Nm
Tool system:
Tool magazine: 30 positions, rotary type
Table:
1-axis rotary table
Table size: 1,840 mm
Cooling & lubrication:
Spindle cooling with emulsion
High-pressure coolant system: 75 bar
Coolant tank capacity: 460 liters
Air cooling system
Ball screw lubrication for high production
Additional equipment
Chip conveyor
Heidenhain remote handwheel
Wash-down gun with pump
Mechanical probing device
3D probe pre-installation
Electrical pre-installation for 3D probe
Industry 4.0 preparation package
Air-cooled spindle refrigeration unit
Frequency inverter for spindle – option 42
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
