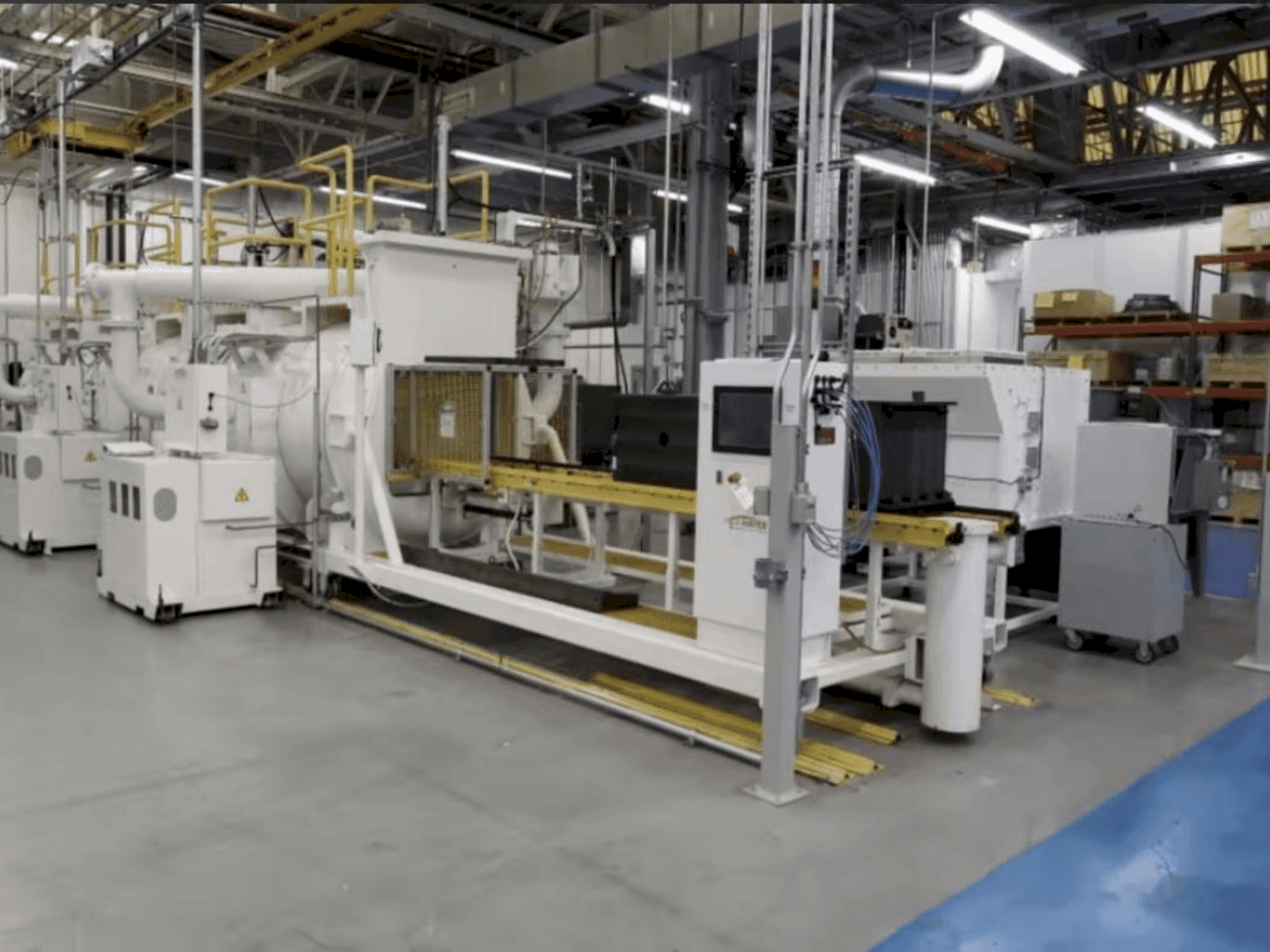

Front view of C.I. HAYES CV-202436-PH machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

C.I. HAYES CV-202436-PH

Photo Gallery

C.I. HAYES - CV-202436-PHMD-OTH-CIH-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used C.I. HAYES CV-202436-PH For Sale | gindumac.com

Show in original language

This machine tool was manufactured in 2015. The C.I. Hayes CV-202436-PH features a semi-continuous vacuum/inert furnace with operating temperatures up to 1450-C. It includes a preheat chamber, process chamber, and a quench chamber with sub-atmospheric convective cooling. Additional features are a Tuthill KT300 vacuum pump, graphite-lined modules, and an HMI operator interface with AB PLC for enhanced control. For more information about this machine tool, please reach out to us.

Overview

brand: C.I. HAYES
year: 2015
MODEL: CV-202436-PH
application type: Other Machine Tools
Location: Moldova
machine type: Machine Tool

Additional Information

Additional equipment

2016 Tuthill KT300 Vacuum Pump Combo: Yes
PH module: Graphite lined, rated to 1120°C
HH module: Graphite lined, rated to 1450°C
5 work carrier grids: Yes
Uniformity: +/- 25F in red heat (1400F to 2650F range)
Automatic vacuum control: 0.5 torr to 3 torr range
Kinney vacuum pump combination: Yes
Heat exchanger with pumping system for furnace water loop side: Yes, fully wired and piped

Machine Benefits

Qualitative Machine Benefits

Advanced programmable control via ab plc and hmi operator interface

Technical Machine Benefits

High operating temperatures for preheat and process chambers
Precise temperature uniformity and vacuum control
Combined vacuum pump and cooling systems for efficient operation
Preheat chamber temperature: 1100°c
Process chamber temperature: 1450°c
Quench chamber: nitrogen, just below atmosphere (~900 mbar)
Cooling module: vacuum and sub-atmospheric convective cooling

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
