CHARMILLES - ROBOFORM 50PL-EDM-CHA-1998-00001

15,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

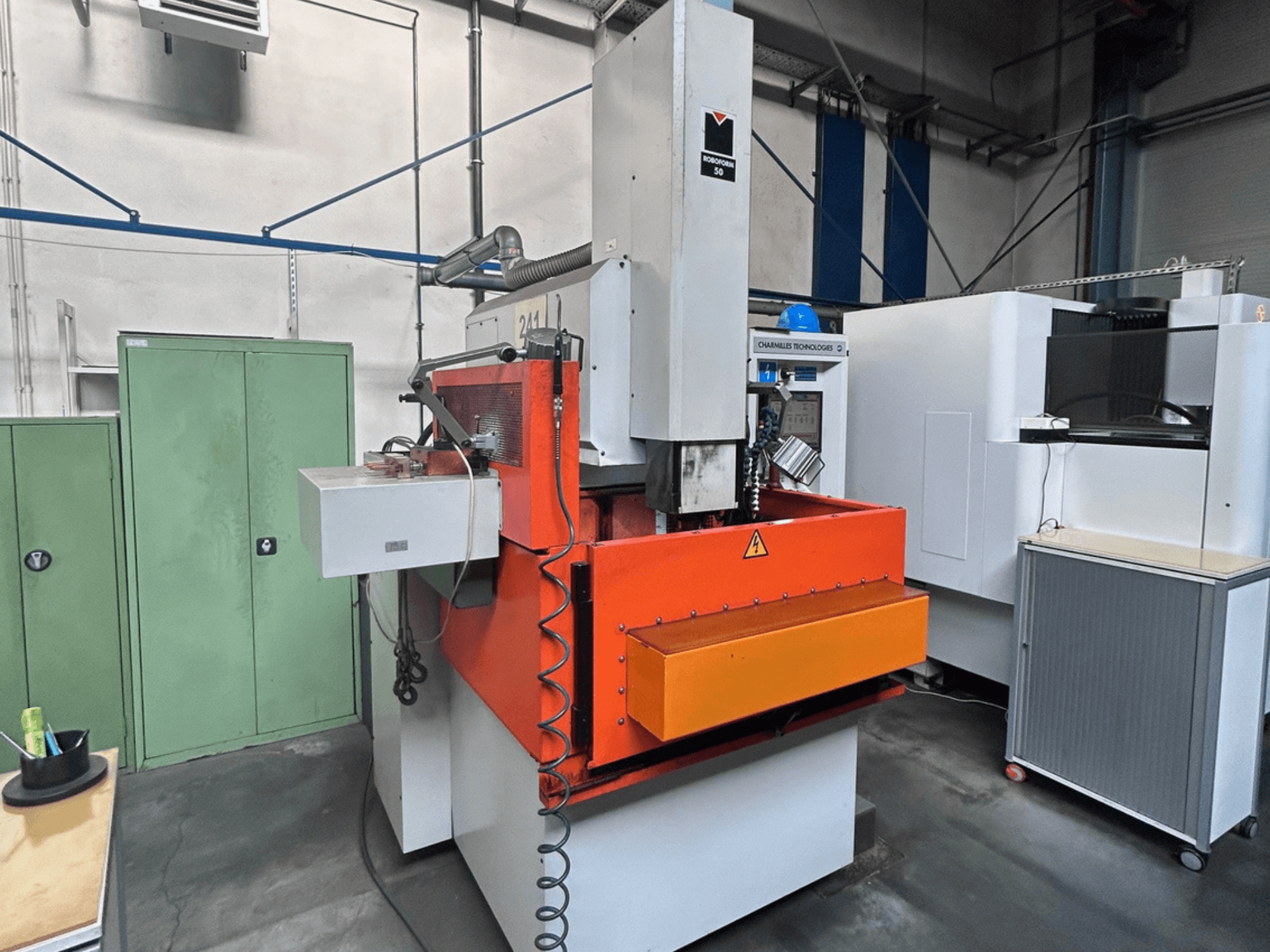

This 4-axis CHARMILLES ROBOFORM 50 die-sinking EDM machine was manufactured in 1998. It features a maximum part weight capacity of 1000 kg and a table size of 750 x 500 mm. The machine offers travel limits of 600 mm in the X-axis, 400 mm in the Y-axis, and 450 mm in the Z-axis. If you are looking to get high-quality die-sinking capabilities, consider the CHARMILLES ROBOFORM 50 machine we have for sale. Contact us for further details.

Overview

  • brand: CHARMILLES
  • year: 1998
  • MODEL: ROBOFORM 50
  • production hours: 53574
  • application type: EDM
  • Location: Poland
  • machine type: Die-Sinking EDM Machine
  • control unit brand: CHARMILLES

Technical Information - CHARMILLES ROBOFORM 50

Control Unit

  • Control Brand: CHARMILLES

Dimensions

  • Machine Height: 2850 mm
  • Machine Length: 2300 mm
  • Machine Weight: 3430 kg
  • Machine Width: 1560 mm
  • Table Length: 750 mm
  • Table Width: 500 mm

Movement

  • Number of Axes: 4
  • X-axis Travel: 600 mm
  • Y-axis Travel: 400 mm
  • Z-axis Travel: 450 mm

Additional Information

  • Frame type: L

  • Condition: Very good, ready for tests

  • Maximum distance between table surface and spindle tip:

    • With insulated board: 650 mm

  • Maximum electrode weight (without changer): 100 kg

  • Table:

    • Maximum part weight: 1000 kg

    • Maximum part dimensions (H × L × W): 370 × 1000 × 700 mm

    • T-slots: 4

    • T-slot width: 12 mm

    • T-slot spacing: 125 mm

  • Movements:

    • Travel X/Y/Z: 600 / 400 / 450 mm

    • C-axis travel: 360°

    • Measurement resolution: 0.5 µm

    • Positioning resolution: 1 µm

    • Maximum speed (manual mode): 15 mm/s

    • Maximum rotation speed (C): 100 rpm

    • Electrode inertia with C-axis: 2000 kg·cm²

  • Dielectric / Work tank:

    • Effective tank dimensions (H × L × W, without changer): 465 × 1220 × 795 mm

    • Capacity: 415 l

    • Min / max level: 135 / 425 mm

    • Front opening (without changer): 1140 mm

    • Lateral opening (without changer): 740 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
