Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Chevalier - 1418 VMC-40CZ-MIL-CHE-2009-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Chevalier 1418 VMC-40 Vertical Machining Center

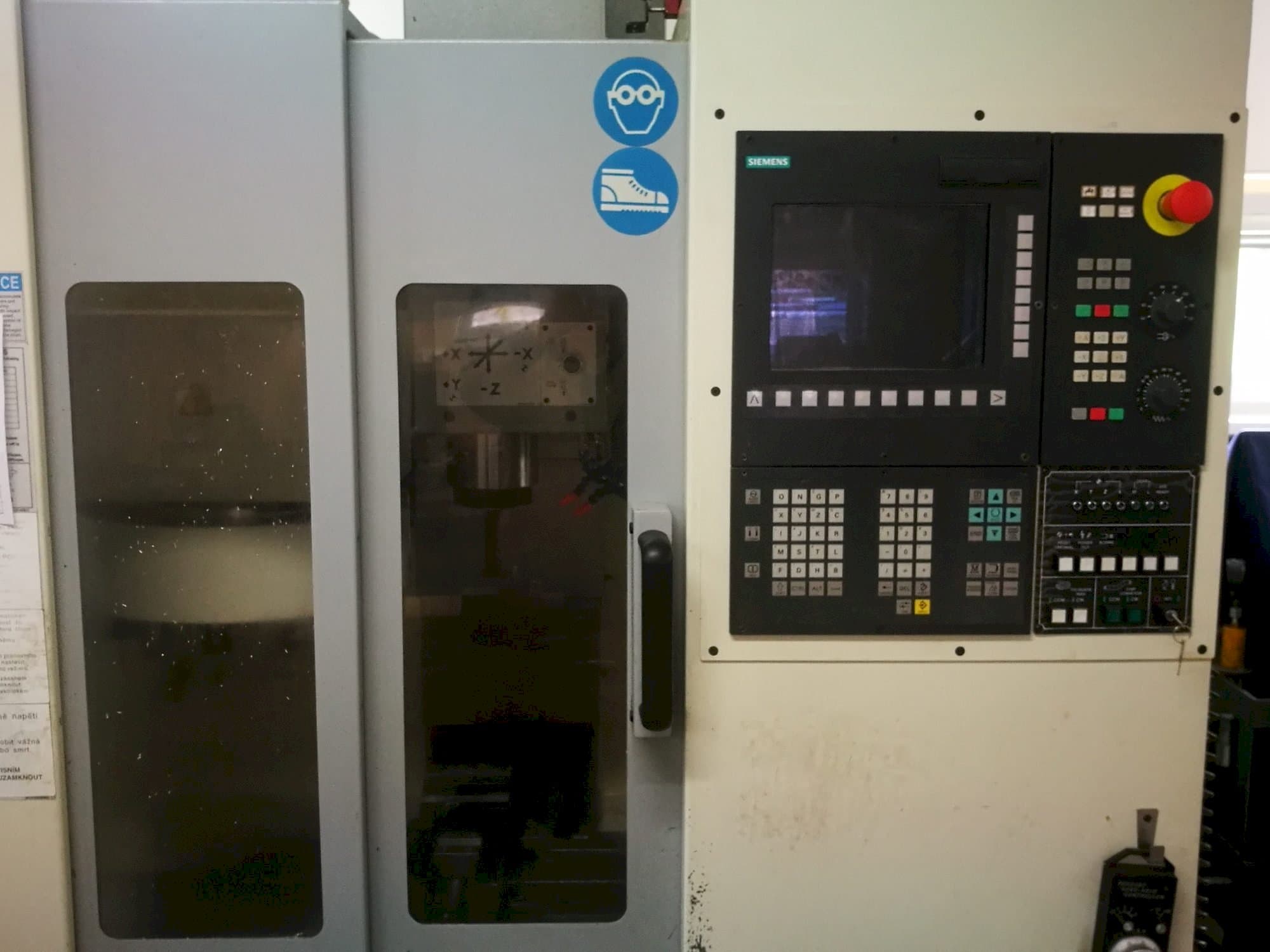

This Chevalier 1418 VMC-40 Vertical Machining Center was manufactured in the year 2009 in Taiwan. It has a production history of approximately 18000 working hours. It is operated through a Siemens 802 DSL control unit. It can work with a spindle speed up to 10000 rpm. It includes a chip conveyor, and a 10 tool holders.
Overview
- brand: Chevalier
- year: 2009
- MODEL: 1418 VMC-40
- production hours: 18000
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - Chevalier 1418 VMC-40
Control Unit
- Control Brand: SIEMENS
- Control Model: 802 DSL
Dimensions
- Machine Depth: 1500 mm
- Machine Height: 2110 mm
- Machine Weight: 2000 kg
- Table Length: 700 mm
- Table Width: 320 mm
Movement
- X-axis Travel: 450 mm
- Y-axis Travel: 350 mm
- Z-axis Travel: 380 mm
Technical Specification
- Max. Tool Weight: 3 kg
- Number of Tools: 12
- Spindle Power: 8.5 kW
- Spindle Speed: 10000 RPM
Additional Information
Additional equipment
- 10 tool holders
Machine Benefits
Qualitative Machine Benefits
- Very good condition
Technical Machine Benefits
- 4th axis ready
- Handwheel
- Rapid feedrate on x, y, z axes 36/36/36 m/min.
- Cutting feedrate 10000 mm/min.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
