CHIRON - DZ 18 W MAGNUMDE-MIL-CHI-1998-00002

67,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

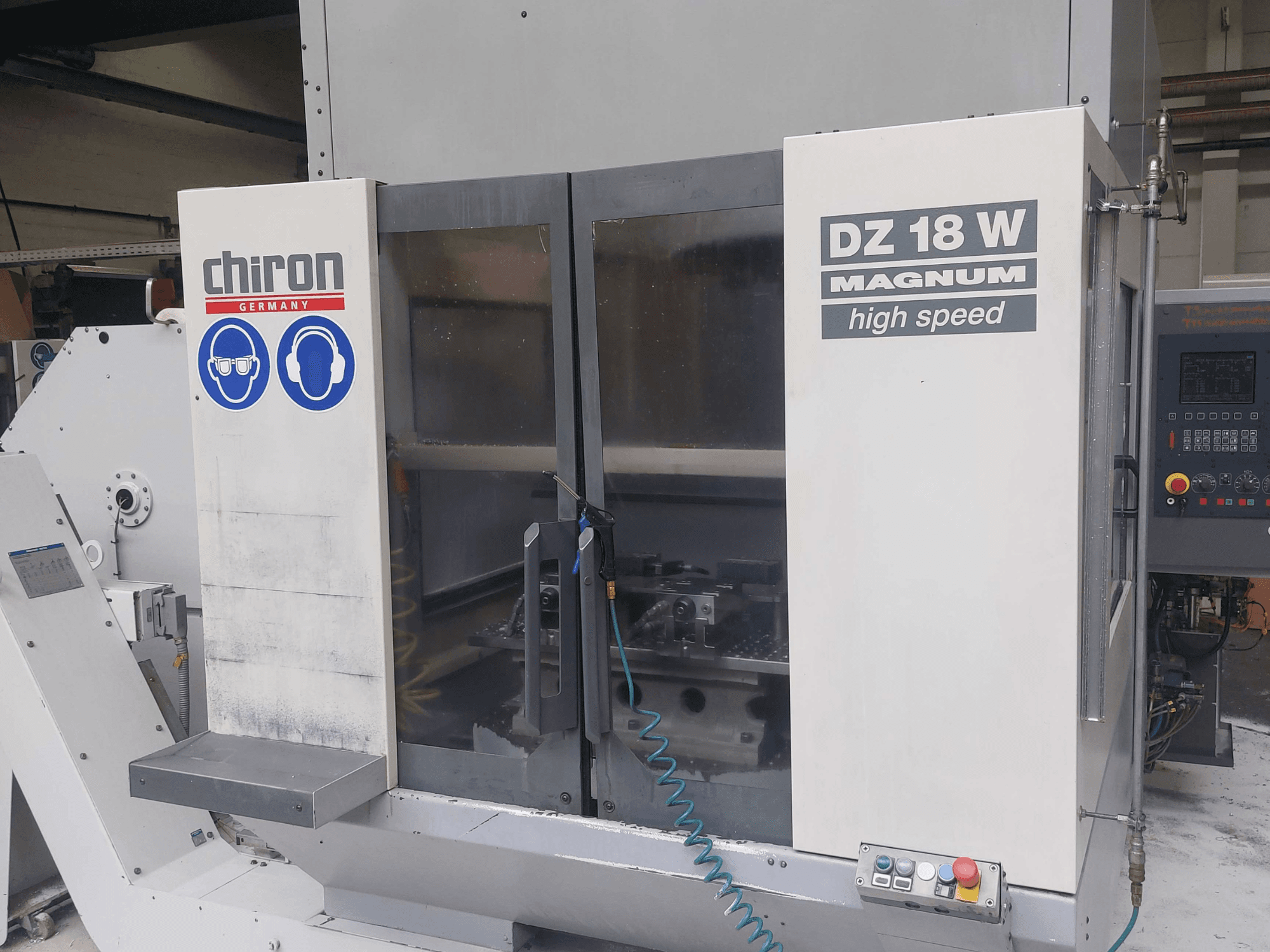

This 3-axis CHIRON DZ 18 W MAGNUM was manufactured in 1998. It features an X-axis travel of 400 mm, Y-axis travel of 400 mm, and Z-axis travel of 630 mm. The machine includes a table size of 1250 × 850 mm and a tool magazine capacity of 24 tools. If you are looking to get high-quality machining capabilities, consider the CHIRON DZ 18 W MAGNUM vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: CHIRON
  • year: 1998
  • MODEL: DZ 18 W MAGNUM
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: SIEMENS

Technical Information - CHIRON DZ 18 W MAGNUM

Control Unit

  • Control Brand: SIEMENS

Dimensions

  • Machine Weight: 8000 kg
  • Table Length: 1250 mm
  • Table Width: 850 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 400 mm
  • Y-axis Travel: 400 mm
  • Z-axis Travel: 630 mm

Technical Specification

  • Spindle Speed: 10500 RPM
  • Tool Stations: 24

Additional Information

- Control System: Siemens CNC

- Spindle Taper/Chuck: SK40

- Spindle Speed Range: 320 – 10,500 rpm

- Tool Magazine Capacity: 2 × 12 slots (24 tools total)

- Tool Change Time: approx. 1.9 s

- Chip-to-Chip Time: approx. 3.9 s

- Retrofit/Overhaul Date: 2021 - Complete modernization:

  • main spindles overhauled

  • ball screws replaced

  • tool changer overhauled,

  • axis systems/guides/bearings overhauled

  • hydraulic/pneumatic systems updated

  • electrical system and cabling modernized

  • safety elements replaced

  • geometry adjusted

- Cooling System: Internal cooling (IKZ) via Knoll paper band filter and high-pressure unit (Unit Number: 646)

- Chip Management: Integrated chip conveyor and swarf bin

- Workholding: Hydraulic workpiece clamping on a 180-degree workpiece changing table (W-axis)

- Additional Features: Prepared for 4th/5th axis integration, attached cabinet climate control unit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
