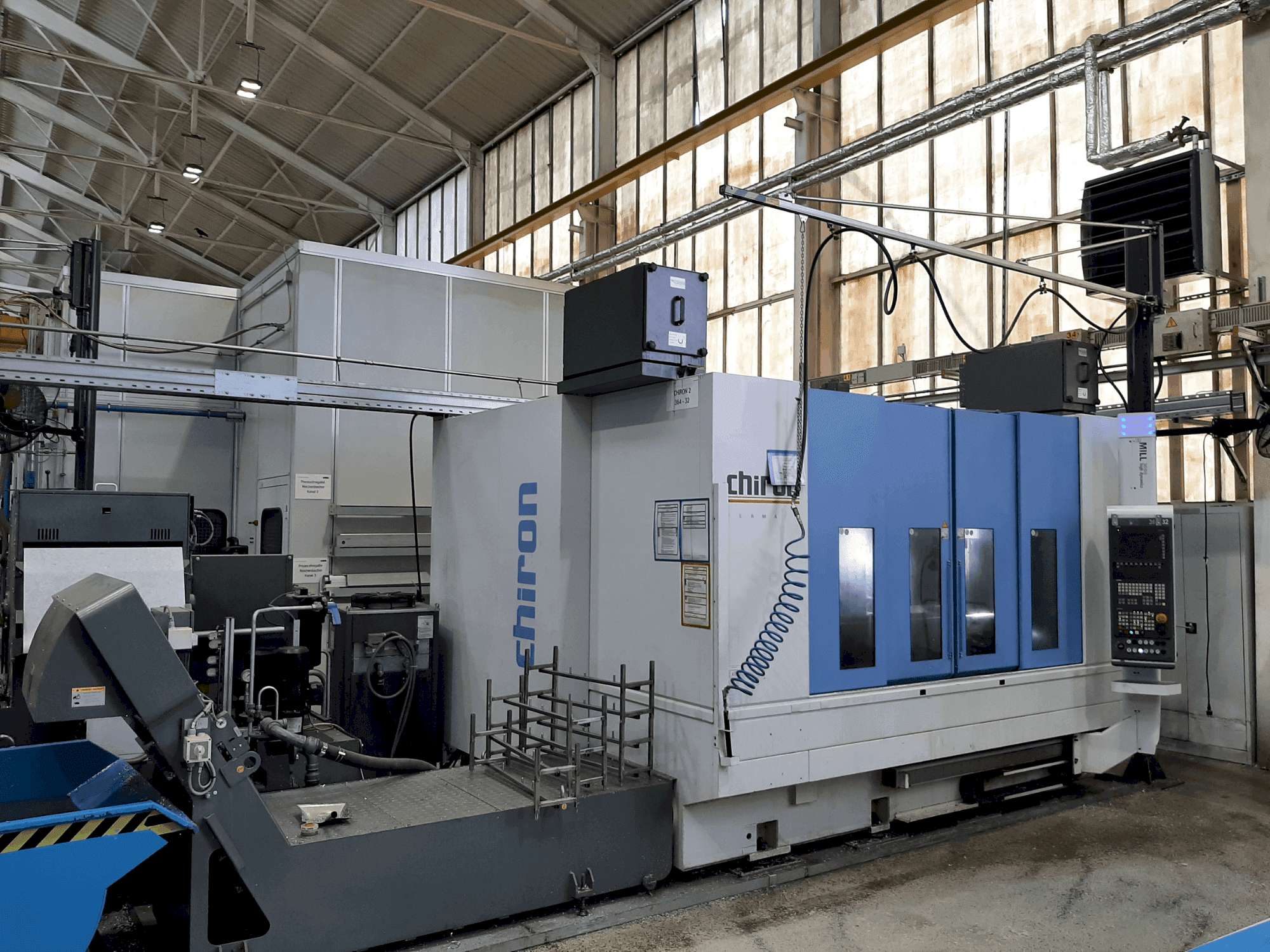

CHIRON - Mill 2000 High DynamicsDE-MIL-CHI-2018-00002

Additional Equipment

• - Nominal pressure: 200 bar
• - Test pressure: 260 bar
• - Temperature range: -10 to 120 °C
• - Bypass opening pressure: 7 bar
• - Differential pressure indicator: 5 bar
• - Maximum voltage (AC): 250 V // Maximum voltage (DC): 200 V
• - Maximum switching current: 1 A
• - Switching power: 70 W
• - Protection class: IP 65
• - Weight: 37 kg

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Main spindle max. Torque: 75 nm
  • - Spindle head version: single-spindle

Extra information

• - Switchgear cooling device: Dimensions: 400 mm (W) x 950 mm (H) x 260 mm (D) Set flow rate: 40 l/min Discharge pressure at 50 Hz: 4.0 bar Rated power: 1.5 kW Maximum rated current: 4.1 A Unit: Dimensions: 600 mm (L) x 600 mm (W) x 1350 mm (H) Weight: 110 kg Rated connected load: 4.60 kW Maximum rated current: 9.20 A Maximum fuse: 16 A Table Rotary table: Transport load without counter bearing: 300 kg Max. axial load: 9000 N Max. radial load: 40000 N Max. tilting moment: 2000 Nm Max. transmittable torque from worm to worm gear: 30 Nm Counter bearing: Transport load for vertical use with rotary table NC1.03: 600 kg Required clamping pressure of the hydraulic clamp (nominal pressure): 75 bar Permissible clamping pressure of the hydraulic clamp: 85 bar Permissible pressure peak of the hydraulic clamp: 120 bar Permissible tangential moment with hydraulic clamp: 1000 Nm
