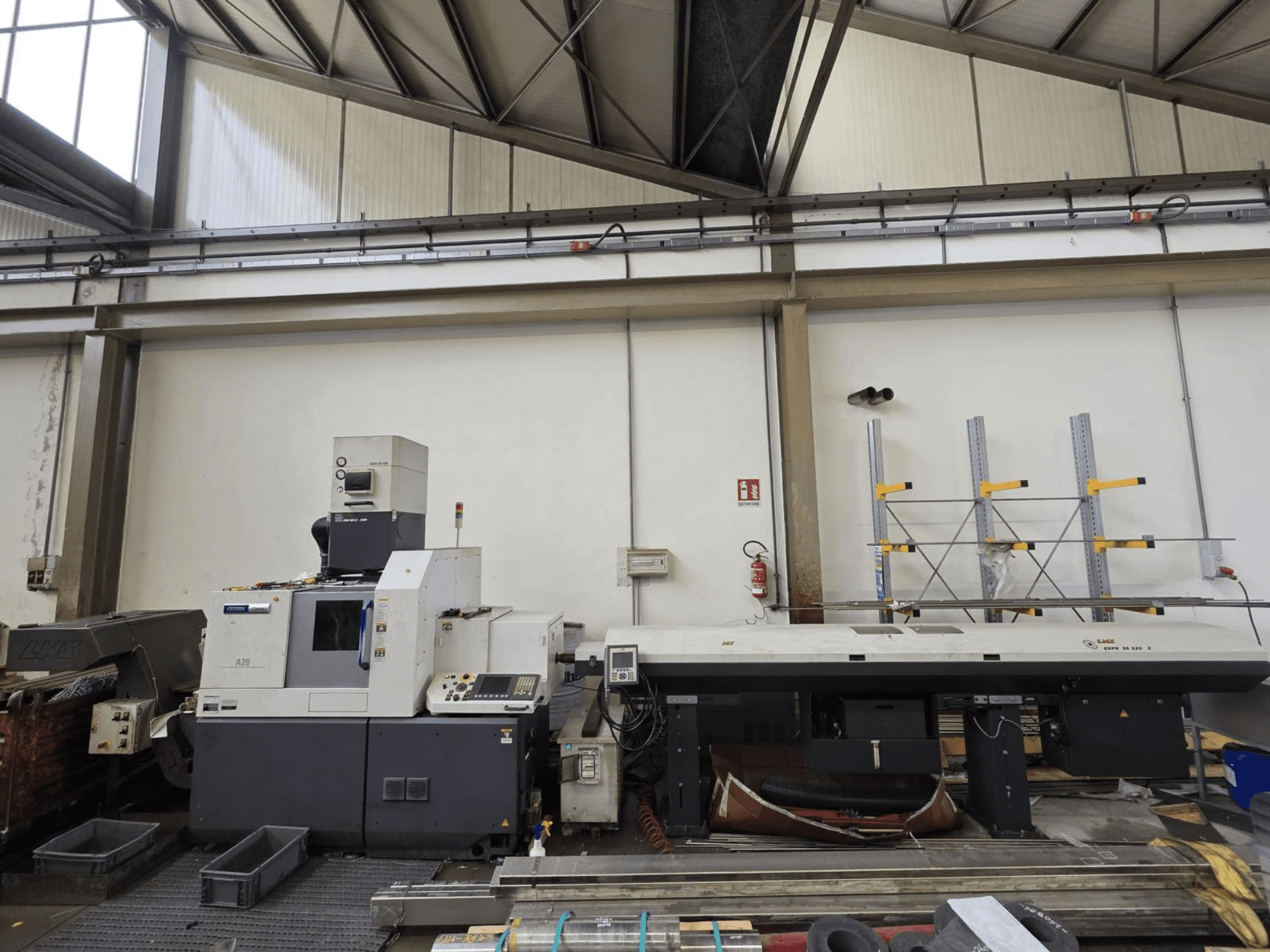

This 7-axis Citizen Cincom A320-VII mod. A20-3F7 was manufactured in 2019. It features a maximum workable diameter of 20 mm, with an option for 25 mm, and a maximum workable length of 200 mm. The machine is equipped with a Fanuc 32i CNC control and includes a bar feeder, high-pressure coolant system, and a chiller. If you are looking to get high-quality turning capabilities, consider the Citizen Cincom A320-VII machine we have for sale. Contact us for further details.
Overview
- brand: Citizen
- year: 2019
- MODEL: Cincom A320-VII mod. A20-3F7
- production hours: 11000
- application type: Turning
- Location: Italy
- machine type: Swiss Type Turning Machine
- control unit brand:
Technical Information - Citizen Cincom A320-VII mod. A20-3F7
Dimensions
- Machine Height: 1820 mm
- Machine Length: 2120 mm
- Machine Weight: 2200 kg
- Machine Width: 1185 mm
Movement
- Number of Axes: 7
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Power: 3.7 kW
- Spindle Speed: 10000 RPM
Additional Information
Working hours: 11,000 h
Max workable diameter: 20 mm (25 mm option included)
Max workable length per feeding: 200 mm (188 mm with 25 mm option)
Sub-spindle motor power: 1.5 / 1.1 kW
Sub-spindle speed: max 8,000 rpm
Number of tools on main plate: 17 (5 turning, 4 radial driven, 4 front, 4 rear)
Driven tools speed: max 6,000 rpm (rated 4,500 rpm)
Required power supply: 3 phases, 200 V, 50/60 Hz, 7.1 kVA
Additional equipment
LNS EXPRESS 320 S2 barfeeder (200–480 V, 3 phase, 50/60 Hz)
Extension to 25 mm diameter bar capacity
High-pressure coolant system
Rear part unloader
1x radial driven tool
EFFEGI chiller / hydraulic unit
Spindle cooling radiator + pump
165 L coolant tank
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
