➤ Used Clean Laser clean CELL 3220 For Sale | gindumac.com

Show in original language

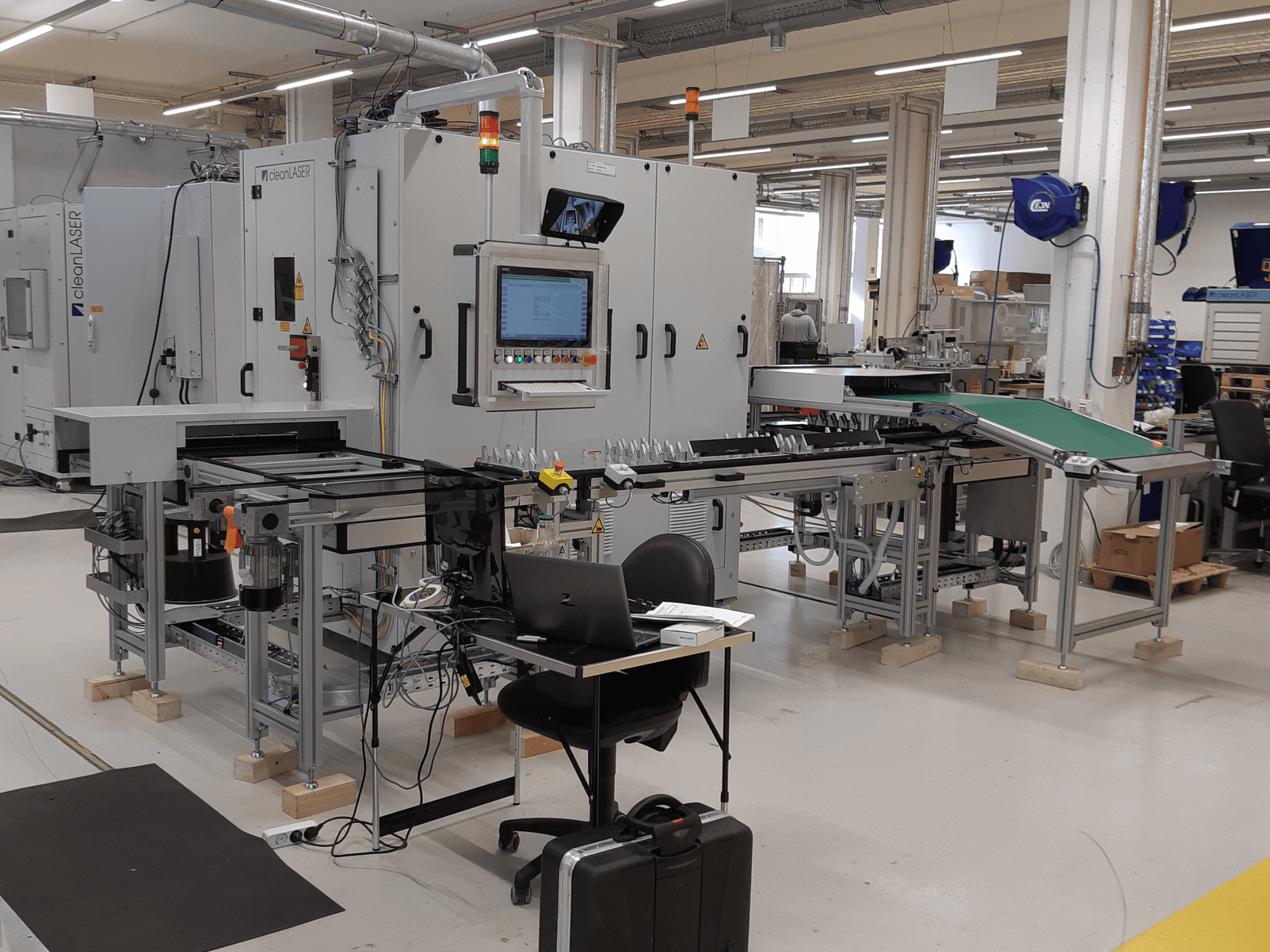

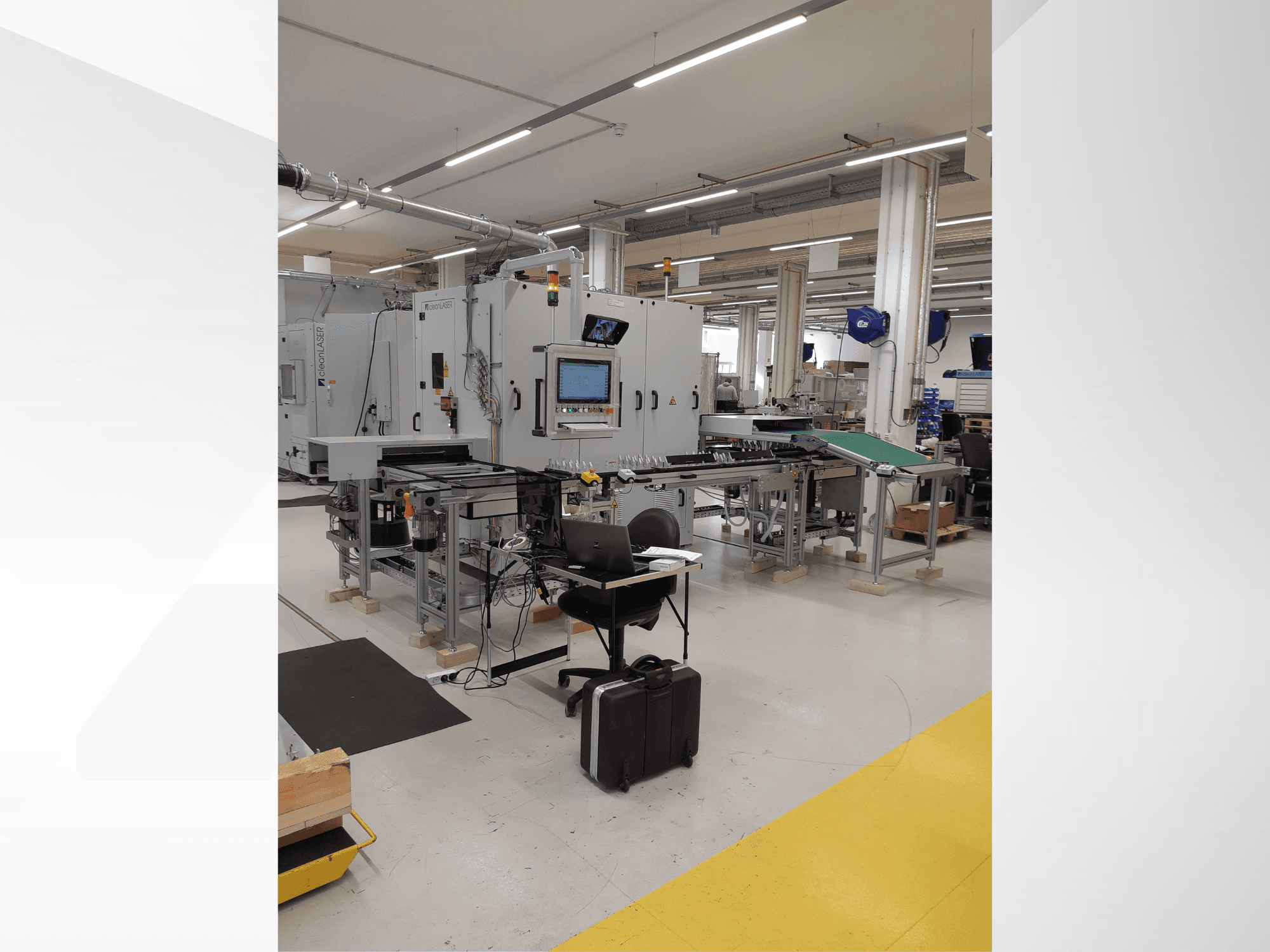

This 3-axis clean CELL 3220 was manufactured in 2021. It features a powerful 600 W diode-pumped solid-state laser with a wavelength of 1064 nm and an integrated water-to-water cooling system. The machine is equipped with a Siemens control unit and a robust ABB robot for enhanced automation. If you are looking to get high-quality laser cleaning capabilities, consider the Clean Laser clean CELL 3220 machine we have for sale. Contact us for further details.

Overview

brand: CLEAN LASER
year: 2021
MODEL: clean CELL 3220
application type: Other Machine Tools
Location: Germany
machine type: Machine Tool
control unit brand: SIEMENS

Technical Information - CLEAN LASER clean CELL 3220

Control Unit

Control Brand: SIEMENS
Control Model: SIMATIC S7-1500

Dimensions

Machine Height: 2215 mm
Machine Length: 2200 mm
Machine Width: 2035 mm

Movement

Number of Axes: 3

Additional Information

Machine Type: Automated Robotic Laser Cleaning Cell
Laser Source: cleanLASER CL600 Mid-Power Laser
Laser Type: Diode-Pumped Solid-State Laser (DPSSL)
Laser Wavelength: 1064 nm
Laser Operation Mode: Pulsed (ns)
Average Laser Power: 600 W ±5%
Alignment Laser Wavelength: 658 nm
Alignment Laser Power: 28 mW
Cooling System: Integrated Water-to-Water Cooling System
Additional Chiller: Cooler ONE Plus Air (Air-Cooled)
Fiber Cable Type: Quartz Fiber Optic Cable
Fiber Length: 10 m
Fiber Geometry: Square
Protective Hose Diameter: 21 mm
Optical System: STAMP 25 2D Optics
Optics Connection: 90°
Focal Length: 163 mm
Control Unit Brand: Siemens
Control Unit Model: SIMATIC S7-1500 PLC
Drive System: Siemens 1FK7 Servo Drives
Linear Axis System: 3-Axis Portal System
Maximum Axis Payload: Approx. 25 kg
Axis Speed (X/Y): >200 mm/s
Communication Interface: Profinet
Digital I/O: Standard
Software: cleanSTUDIO / cleanCONTROL
Industrial PC: 19" Rack PC
SSD Capacity: 256 GB
RAM: 8 GB
Processor: Intel Core i5 (minimum) or equivalent
Robot: ABB Robot
Gripper: 2-Workpiece Gripper
Conveyor System: Bosch TS2 Transfer System
Loading System: Manual Workpiece Carrier Loading
Discharge Conveyor Length: Approx. 4.8 m
Extraction System: ULT Maxi Plus
Fan Capacity: Max. 4,000 m³/h
Maximum Pressure: 3,300 Pa
Filter Cartridges: 4 × 600 mm
Dust Drum Capacity: 200 L
Extraction Power: 5 kW
Power Supply: 400 V, 3-Phase

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
