➤ Used CLOOS Qirox Micro Cell 1.1 M | Robot For Sale

Show in original language

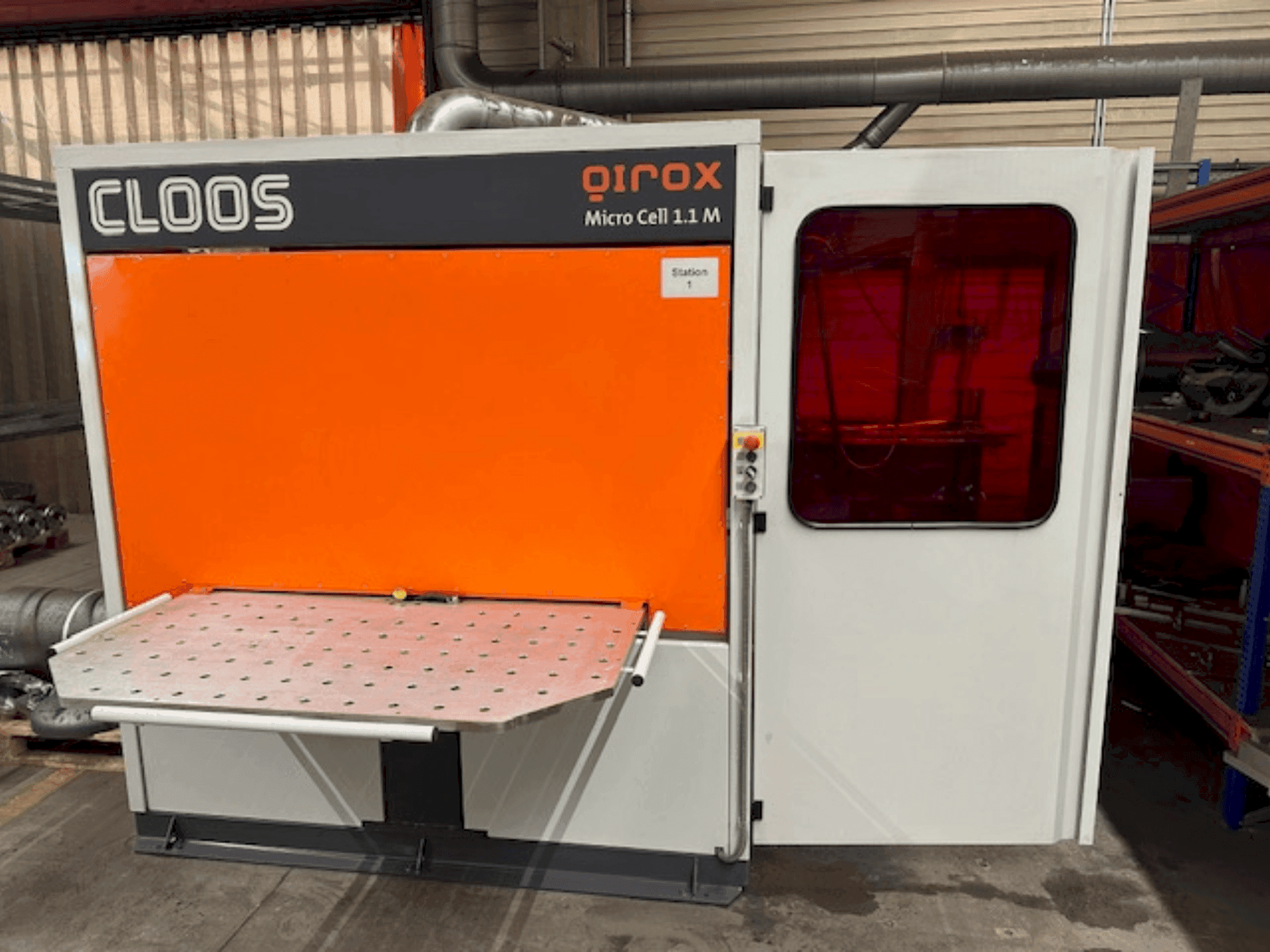

This CLOOS Qirox Micro Cell 1.1 M was manufactured in 2021. It features a robust welding robot with a payload capacity of 4 kg and a working area diameter of 3740 mm. The compact design includes dimensions of 714 x 348 x 553 mm and a weight of 105 kg. Always serviced and like new, with a new battery installed. Contact us for more information about this machine.

Overview

brand: CLOOS
year: 2021
MODEL: Qirox Micro Cell 1.1 M
application type: Welding
Location: Germany
machine type: Welding Robot

Technical Information - CLOOS Qirox Micro Cell 1.1 M

General Data

Measurements width: 348 mm
Measurements depth: 714 mm
Measurements height: 553 mm
Machine weight: 84 kg

Main drive

Number of axis: 6
Max payload: 4 kg

Additional Equipment

- Delivery includes: 4m fixed connection cable, 8m connection cable, robot accessories for welding technology

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working area Ø: 3740 mm
- - Working area axis 5 +90° Ø: 2920 mm
- - Working area height: 1940 mm
- - Repeatability ∆ ≤ s: +/- 0. 15 mm
- - Interference radius Ø: 550 mm
- - Footprint: 285 mm x 285 mm
Qualitative Machine Benefits:
- - Like new
- - New battery
- - Always serviced

Extra information

- Movement Axis 1: +120° / -120°, Swivel Speed: 230°/sec Axis 2: +160° / -90°, Swivel Speed: 230°/sec Axis 3: +80° / -200°, Swivel Speed: 230°/sec Axis 4: +190° / -190°, Swivel Speed: 430°/sec Axis 5: +140° / -140°, Swivel Speed: 430°/sec Axis 6: +360° / -360°, Swivel Speed: 630°/sec

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
