CLOOS Qirox Micro Cell 1.1 M

Photo Gallery

CLOOS - Qirox Micro Cell 1.1 MDE-WEL-CLO-2018-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used CLOOS Qirox Micro Cell 1.1 M | Robot For Sale

Show in original language

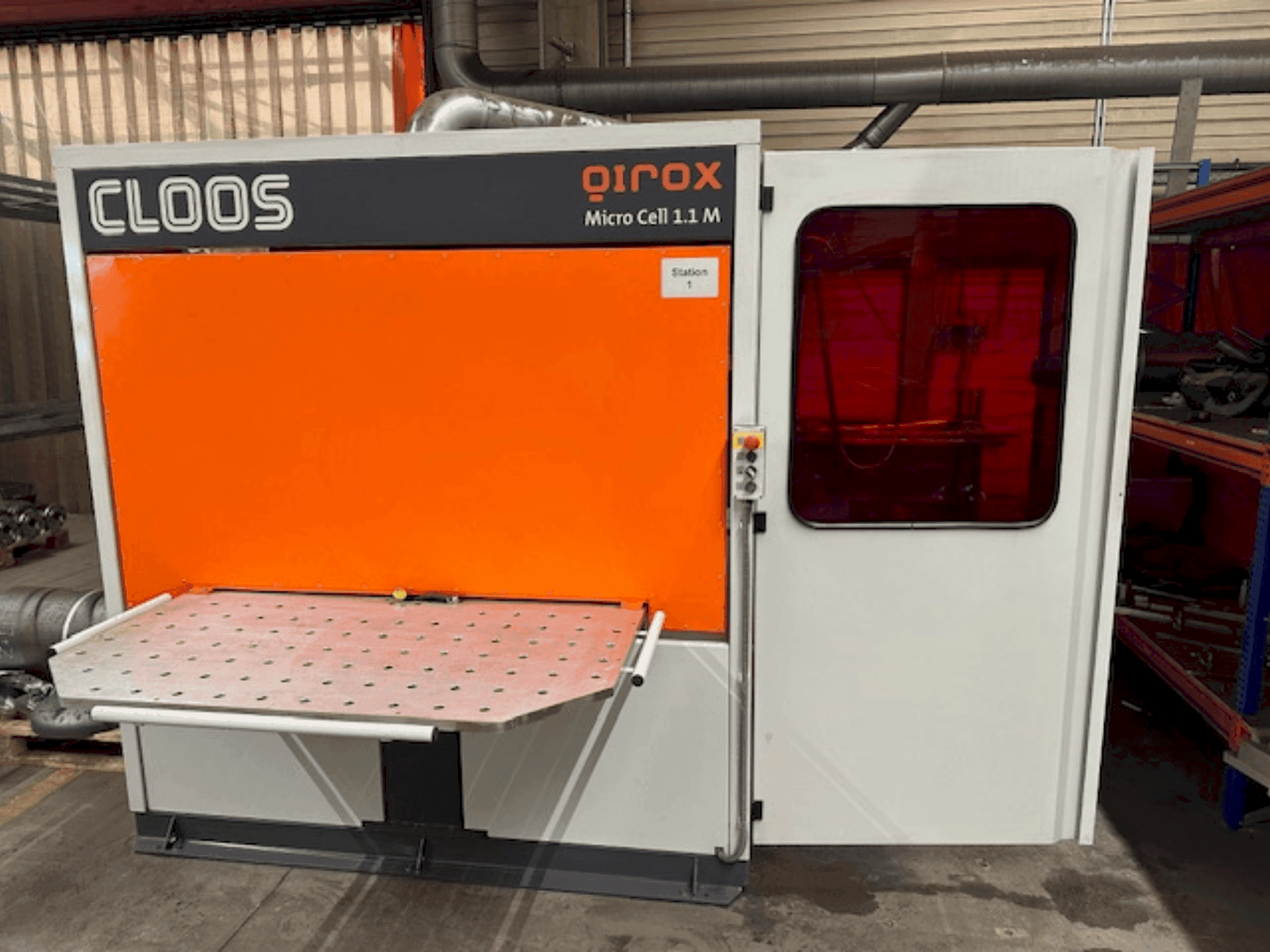

This CLOOS Qirox Micro Cell 1.1 M was manufactured in 2021. It features a robust welding robot with a payload capacity of 4 kg and a working area diameter of 3740 mm. The compact design includes dimensions of 714 x 348 x 553 mm and a weight of 105 kg. Always serviced and like new, with a new battery installed. Contact us for more information about this machine.

Overview

brand: CLOOS
year: 2021
MODEL: Qirox Micro Cell 1.1 M
application type: Welding
Location: Germany
machine type: Welding Robot

Technical Information - CLOOS Qirox Micro Cell 1.1 M

Dimensions

Machine Depth: 714 mm
Machine Height: 553 mm
Machine Weight: 84 kg

Movement

Number of Axes: 6

Additional Information

Additional equipment

Delivery includes: 4m fixed connection cable, 8m connection cable, robot accessories for welding technology

Machine Benefits

Qualitative Machine Benefits

Like new
New battery
Always serviced

Technical Machine Benefits

Working area Ø: 3740 mm
Working area axis 5 +90° Ø: 2920 mm
Working area height: 1940 mm
Repeatability ∆ ≤ s: +/- 0. 15 mm
Interference radius Ø: 550 mm
Footprint: 285 mm x 285 mm

Extra Information

Movement Axis 1: +120° / -120°, Swivel Speed: 230°/sec Axis 2: +160° / -90°, Swivel Speed: 230°/sec Axis 3: +80° / -200°, Swivel Speed: 230°/sec Axis 4: +190° / -190°, Swivel Speed: 430°/sec Axis 5: +140° / -140°, Swivel Speed: 430°/sec Axis 6: +360° / -360°, Swivel Speed: 630°/sec

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

Payment Terms

Payment in advance
Asset Financing

30,000 €
