- ➤ Used CMB PFR-CCL - Veneer Press For Sale | gindumac.com

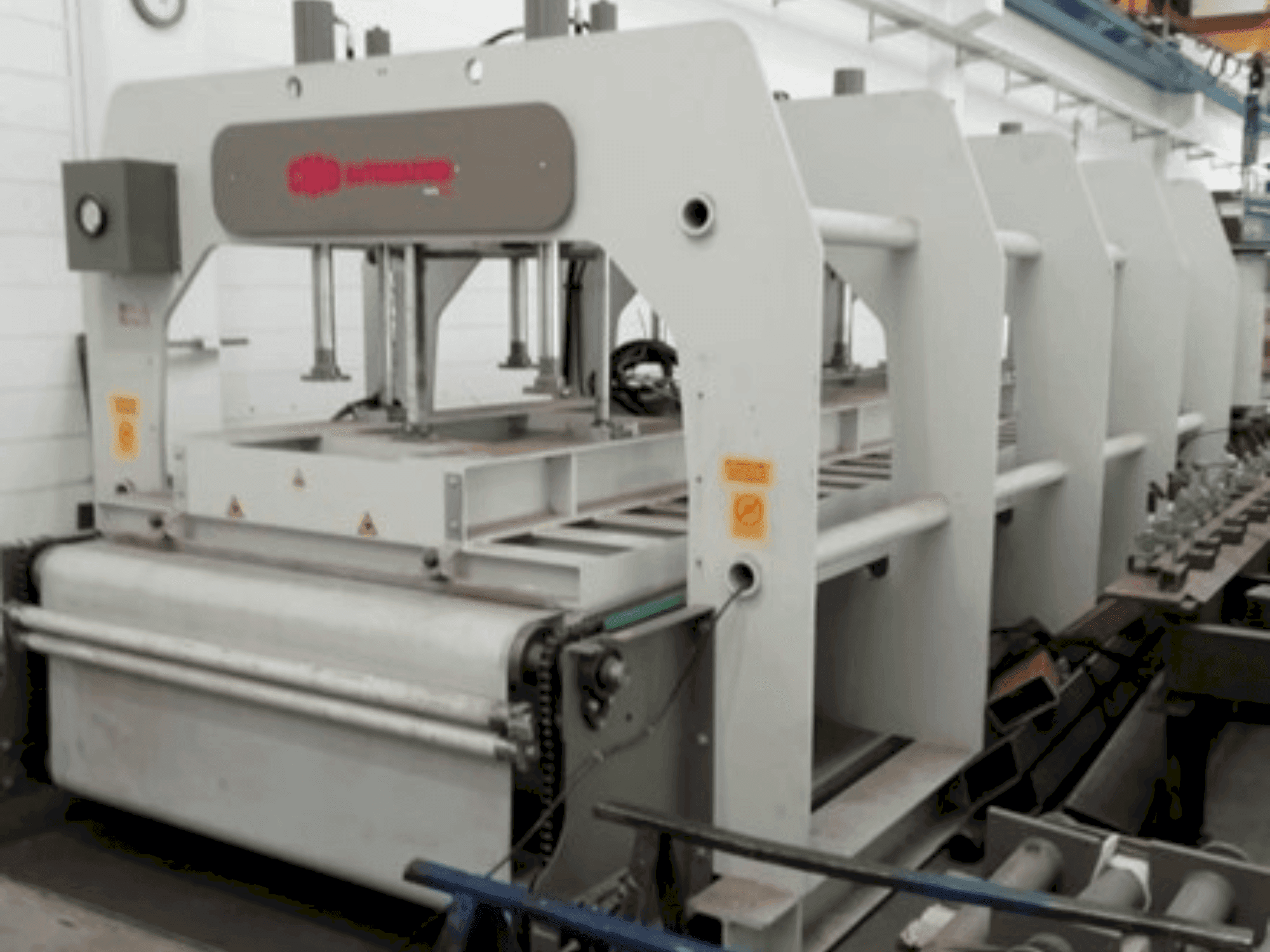

This CMB PFR-CCL was manufactured in 2017. It features a motorized loading table and an automatic cold press with a maximum pressing force of 160 tons. The press operates with a hydraulic unit and a control panel for precise operation. Ideal for handling large panel sizes up to 5,500 x 1,600 mm. If you are looking to get high quality pressing capabilities consider the CMB PFR-CCL machine we have for sale. Contact us for more information.
Overview
- brand: CMB
- year: 2017
- MODEL: PFR-CCL
- application type: Pressing / Laminating
- Location: Italy
- machine type: Veneer Press
- availability: Immediately
Technical Information - CMB PFR-CCL
Additional Equipment
- - Hydraulic unit with pump, oil tank, and valves for operating the pressure and auxiliary cylinders
- - Hydraulic control unit located at the upper part of the press for maintenance ease
- - Control panel with buttons, selector switches, and a pressure control gauge
Additional Information
- Technical Machine Benefits:
- - Motorized loading table dimensions: 3500 x 1600 mm
- - Devices for adjusting the working height for flatness on any unevenness of the floor
- - Structure made of welded steel profiles
- - Steel rollers and foot switch
- - Specific pressure (on 100% of the surface): 1. 82 kg/cm2
- - Specific pressure (on 80% of the surface): 2. 27 kg/cm2
- - Pressure cylinders: 12 x Ø 80 mm
- - Auxiliary cylinders: 6 x Ø 50/30 mm
- - Power supply: 400 volt eu/50 hz/3 ph. + g
- - Note on table dimensions: The loading table (3500 x 1600 mm) and unloading table (2000 x 1600 mm) are shorter than the press table (5500 x 1600 mm) due to inline installation. Table Panel size: 5500 x 1600 mm Loading side: 1700 mm Stroke: From top to bottom Opening: 450 mm Cold press Panels made of sheet steel mounted on a steel beam structure Maximum pressing force: 160 tons Movement Automatic loading and unloading of the panels on the bottom panel, on the 3500 mm side. Transport via a motorized MYLAR belt activated by 2 rollers located at the entrance and the exit of the press Rollers are motor-driven with a chain system on special guides Mylar belt rotates around the lower plate, resting on special lateral supports Belt ends are fixed to rods with devices for tensioning
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
