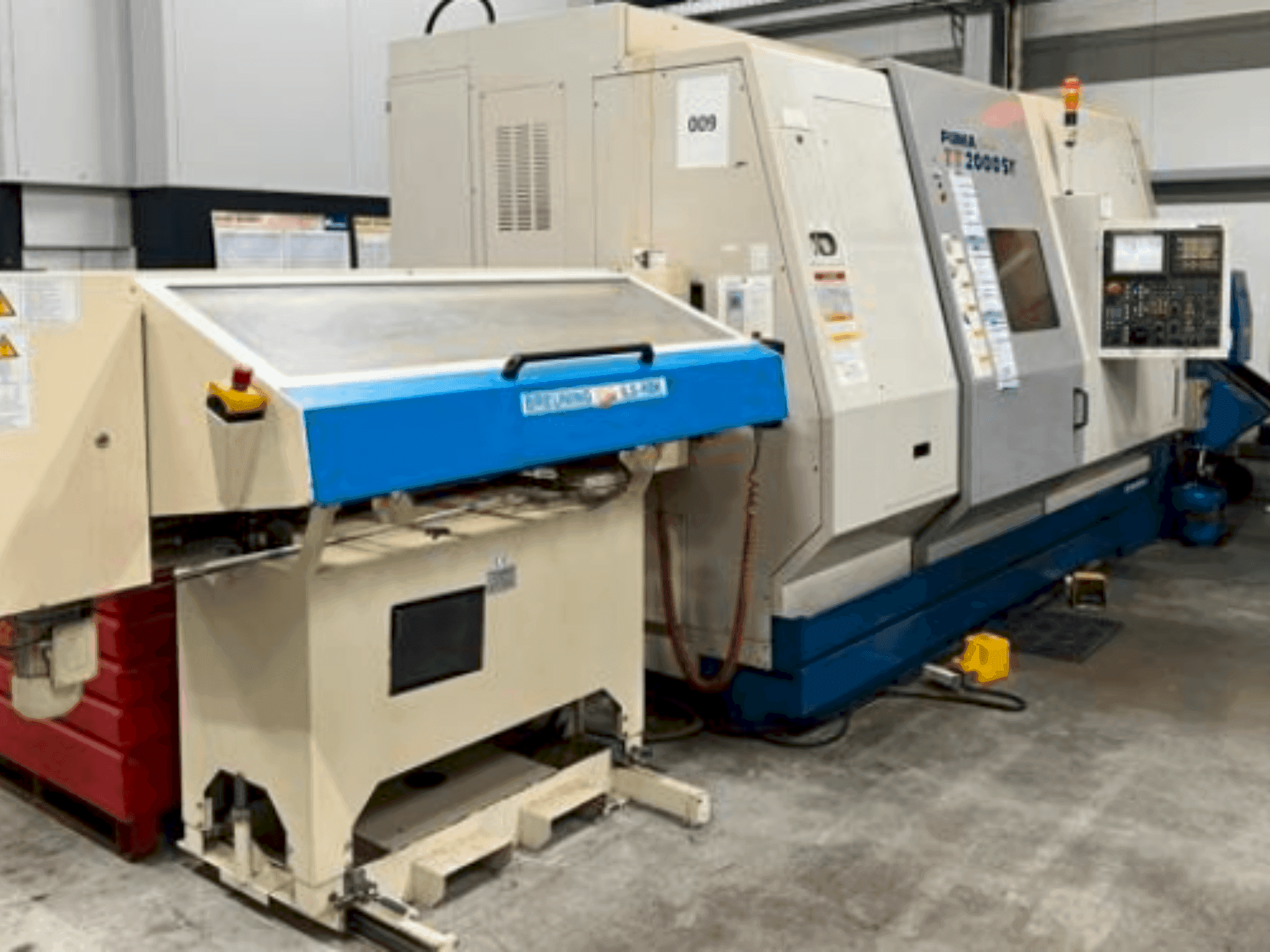

DAEWOO PUMA TT 2000 SY

Photo Gallery

DAEWOO - PUMA TT 2000 SYDE-TUR-DAE-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DAEWOO PUMA TT 2000 SY For Sale | gindumac.com

Show in original language

This 3-axis DAEWOO PUMA TT 2000 SY was manufactured in 2005. It features a turning diameter over bed of 800 mm and a maximum bar diameter of 65 mm. Equipped with a Fanuc 18i-TB control system, it offers spindle speeds up to 5000 rpm and includes a tool turret with 12 stations. Consider the opportunity to buy this DAEWOO PUMA TT 2000 SY horizontal turning machine. Contact us for more information about this machine.

Overview

brand: DAEWOO
year: 2005
MODEL: PUMA TT 2000 SY
production hours: 6235
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DAEWOO PUMA TT 2000 SY

Control Unit

Control Brand: FANUC
Control Model: 18i-TB

Dimensions

Machine Depth: 4100 mm
Machine Weight: 11600 kg

Movement

C-axis: 360°
Number of Axes: 3
X-axis Travel: 255 mm
Y-axis Travel: 120 mm
Z-axis Travel: 800 mm

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 5000 RPM

Additional Information

Additional equipment

Measuring Probe: Tool Measuring Probe
Automatic Bar Loader: ILS-RBK10016 L 2265 mm, W 1116 mm, Approx. 490 kg
Bar Loader Max. Material Length/Diameter: 1600 mm/5-65 mm
Magazine Short Bar Feed with Servo Drive
Main and Counter Spindle with Power Chuck D = 250
Enclosed Work Area Enclosure According to Accident Prevention Regulations
Memory Card Input Socket, RS 232 Socket
Tool Load Monitoring, Bed Flushing
Workpiece Air Blow-off Function
Automatic Tool Measuring Probe // Driven Tools on Both Revolvers

Machine Benefits

Technical Machine Benefits

Chuck size (both spindles): 250 mm
Chuck force (both spindles): hydraulic 5-40 bar
Max. Turning diameter: approx. 390 mm / approx. 315 mm
Max. Workpiece length: 740 mm
Max. Bar diameter: 65 mm
Total power requirement: 75 kva / 11 kw with transformer
Regular maintenance has been performed

Extra Information

Additional equipment Coolant System, Chip Conveyor, Automatic Parts Catcher with Conveyor Belt, Many Accessories Technical Documents and Installation Plan Available Tools Tool Turret: BTM65 Live Tools: Yes Tool Load Monitoring: Yes Tool Holder Diameter: 40 mm Motor for Live Tools: 7.5 kW Collet Size for Rotary Tools: ER32 (D=3-20 mm) Max. Rotary Tool Speed: 4000 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
