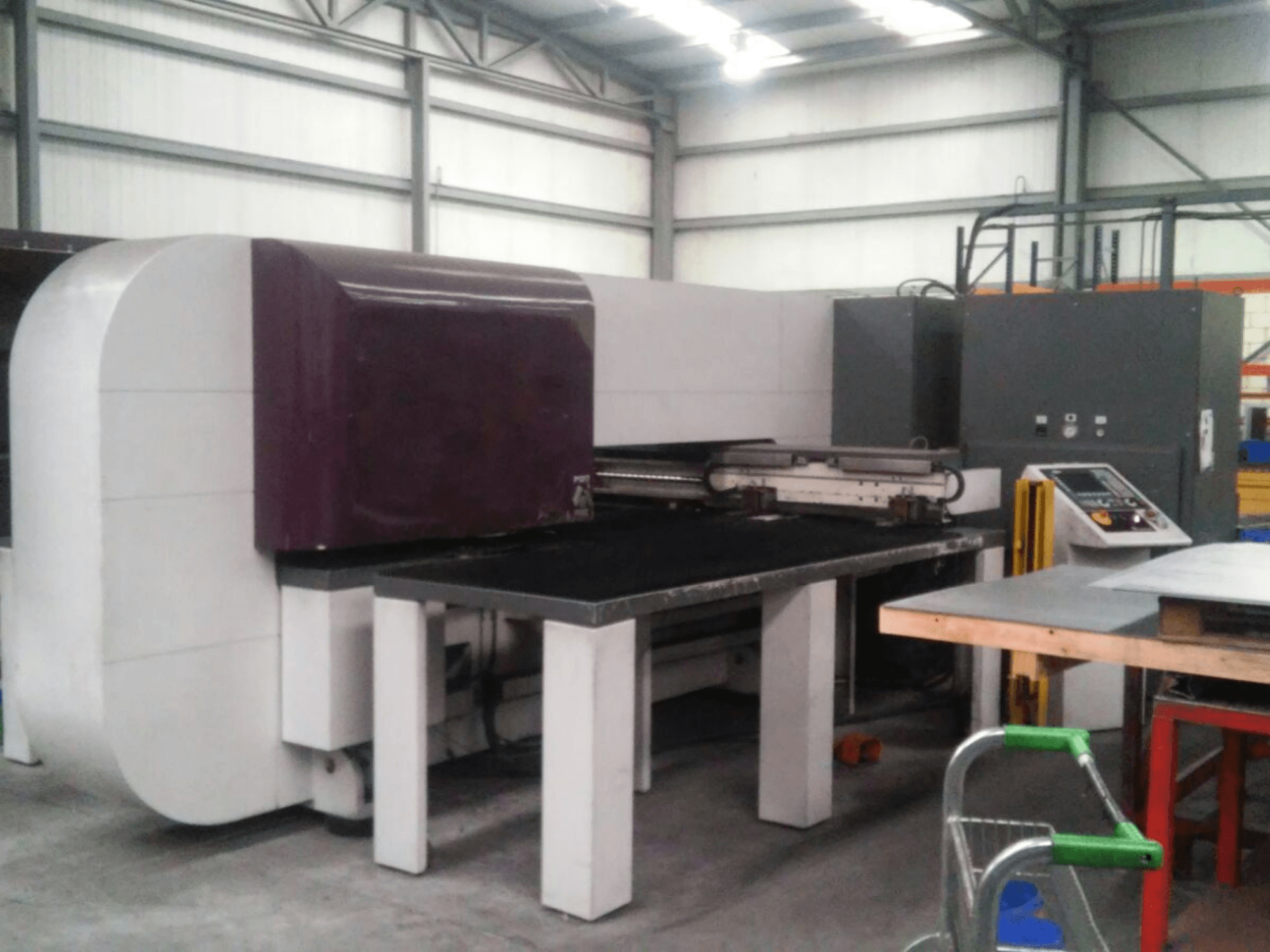

Purple industrial machine with a flat surface, side view, featuring controls and a sturdy base for operational tasks.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DANOBAT P1317

Photo Gallery

DANOBAT - P1317ES-PUN-DAN-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used DANOBAT P1317 Turret Punch For Sale | gindumac.com

Show in original language

This 4-axis DANOBAT P1317 turret punch press was manufactured in 2004. It features a punching force of 300 kN, a maximum sheet thickness of 5 mm, and can perform up to 750 strokes per minute. The machine includes a Fagor 8070 CNC control, 27 turret stations, and 4 auto-index stations. Dimensions are 2,700 × 6,650 × 2,980 mm, and it weighs approximately 15,000 kg. Consider the opportunity to buy this DANOBAT P1317 turret punch press. Contact us for more information.

Overview

brand: DANOBAT
year: 2004
MODEL: P1317
production hours: 48177
application type: Punching
Location: Spain
machine type: Turret Punch Press
control unit brand: FAGOR

Technical Information - DANOBAT P1317

Control Unit

Control Brand: FAGOR
Control Model: 8070

Dimensions

Machine Depth: 2700 mm
Machine Height: 2980 mm
Machine Weight: 15000 kg

Movement

Number of Axes: 4
X-axis Travel: 1600 mm
Y-axis Travel: 1250 mm

Technical Specification

Punching Force: 300 Kn

Additional Information

Working pressure: 280 bar
Strokes per minute: 750 spm (1 mm pitch, 3 mm cylinder stroke)
Hydraulic cylinder: Ø130 × Ø120 mm
Auto-index stations: 4 (A, B, C, D)
Positioning resolution: 0.1 mm
CNC control: Fagor 8070
Max. sheet size: 3,000 × 1,250 mm
Automatic clamping system: 6 bar working pressure, pneumatic cylinder Ø50 × Ø16 mm, ~280 kg clamping force per jaw
The machine needs adjustment of the Y-axis transmission.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
