DART - VMC650 XL/A T.SIT-MIL-DAR-2000-00001

17,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

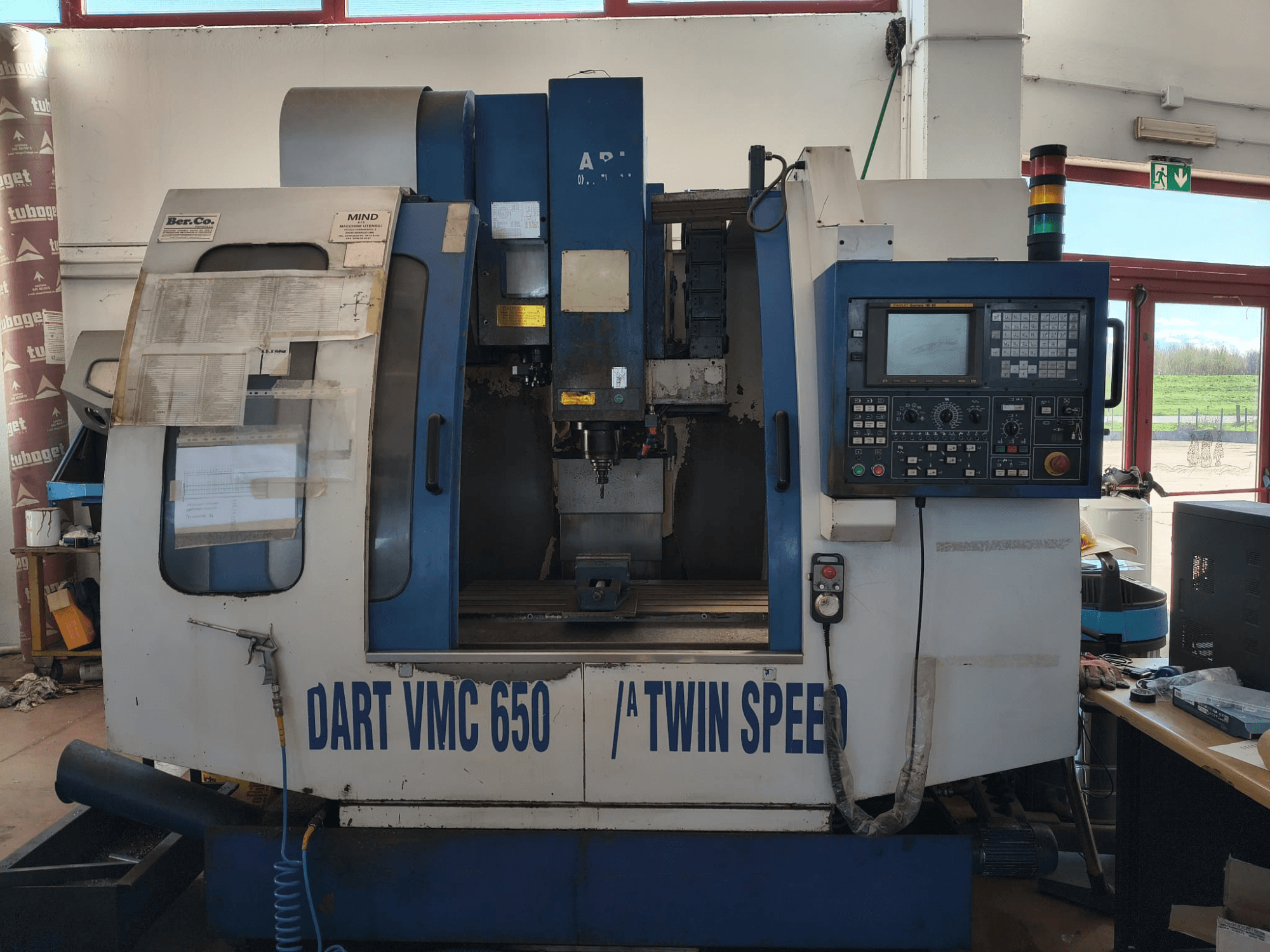

This 3-axis DART VMC650 XL/A T.S was manufactured in 2000. It features an X-axis travel of 800 mm, Y-axis travel of 500 mm, and Z-axis travel of 510 mm. The machine includes a table size of 1000 × 500 mm and a maximum table load of 400 kg. If you are looking to get high-quality machining capabilities, consider the DART VMC650 XL/A T.S vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: DART
  • year: 2000
  • MODEL: VMC650 XL/A T.S
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre

Technical Information - DART VMC650 XL/A T.S

Dimensions

  • Machine Height: 2200 mm
  • Machine Length: 2305 mm
  • Machine Weight: 6500 kg
  • Machine Width: 2300 mm
  • Table Load: 400 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 800 mm
  • Y-axis Travel: 500 mm
  • Z-axis Travel: 510 mm

Technical Specification

  • Max. Tool Weight: 7 kg
  • Spindle Speed: 8000 RPM
  • Taper Size: BT 40

Additional Information

  • Table:

    • Size: 1000 × 500 mm

  • Feed rates:

    • Rapid traverse X/Y: → 30 m/min

    • Rapid traverse Z: → 20 m/min

    • Cutting feed: 1–2000 mm/min

  • Axes / Drives (feed motors):

    • X: 1.8 kW

    • Y: 1.8 kW

    • Z: 1–3 kW

  • ATC (tool changer):

    • Tool capacity: 24

    • Max tool diameter: 100 mm (adjacent tools) / 200 mm (no adjacent)

    • Max tool length: 200 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
