DECKEL - DMU 70 eVolutionDE-MIL-DEC-2004-00006
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DECKEL DMU 70 eVolution For sale | gindumac.com

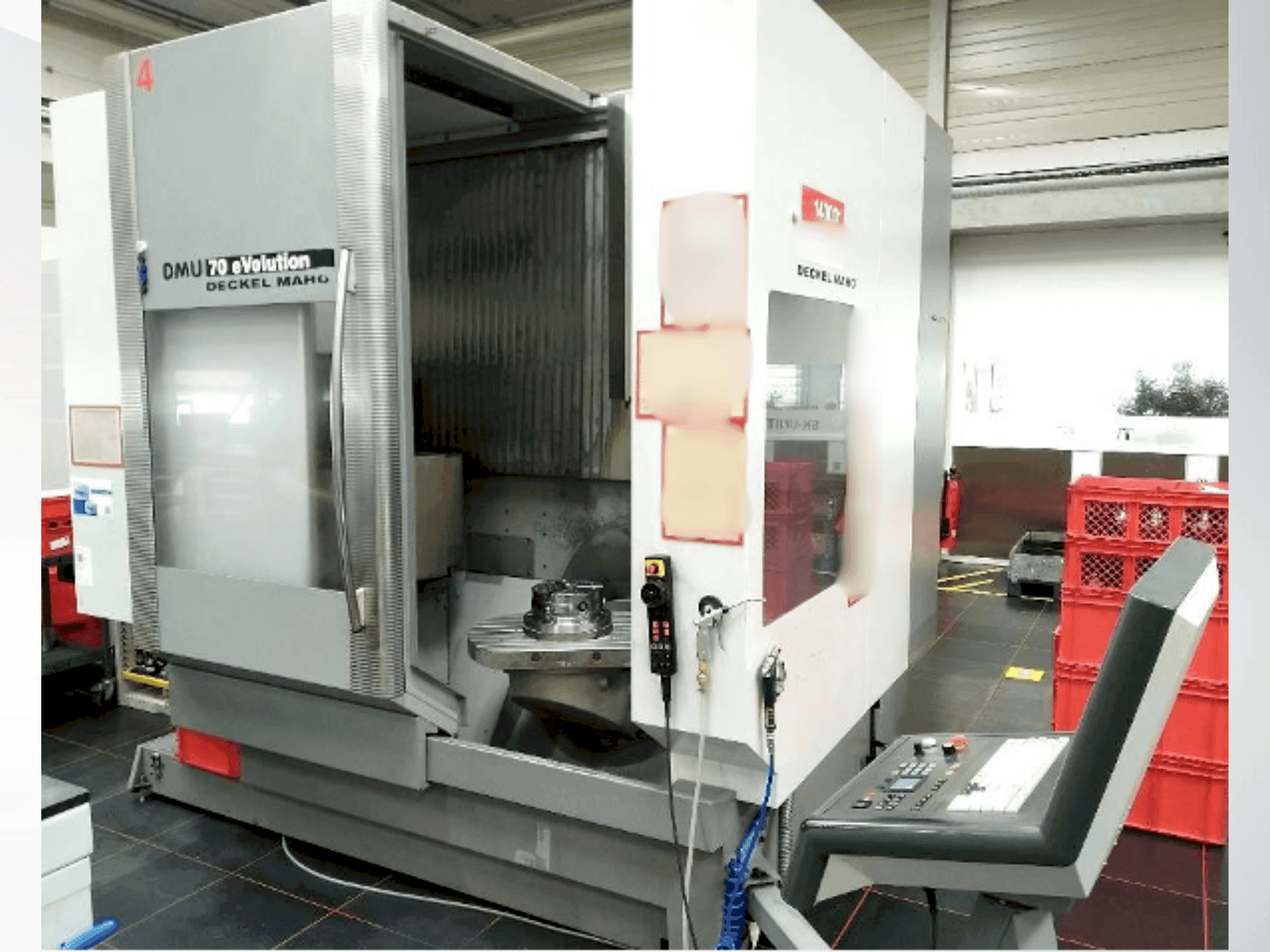

This 3-axis DECKEL DMU 70 eVolution universal machining center was manufactured in 2004. It features a high-speed main drive up to 18,000 rpm, a 32-slot SK40 tool magazine, and an NC rotary table with a clamping surface of 700 x 500 mm. The machine can handle a maximum load of 350 kg on the rotary table. Ideal for complex machining tasks, buy this DECKEL DMU 70 eVolution universal machining center. Contact us for further details regarding this universal machining center.
Overview
- brand: DECKEL
- year: 2004
- MODEL: DMU 70 eVolution
- production hours: 9000
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
Technical Information - DECKEL DMU 70 eVolution
Dimensions
- Table Load: 350 kg
Movement
- X-axis Travel: 750 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 520 mm
Technical Specification
- Max. Tool Weight: 6 kg
- Number of Tools: 32
- Spindle Speed: 18000 RPM
Additional Information
Additional equipment
- NC rotary table with swivel axis
- Cooling lubricant tank (approx. 240 l)
- Digital measuring probe (not functional)
Machine Benefits
Technical Machine Benefits
- Clamping surface Ø 700 x 500 mm
- Swivel range (swivel axis) 0-180°
- Max. Torque (swivel axis) 1,674 nm
- Max. Swivel torque 3,019 nm
- Distance of t-slots/size of centering bore: 63 mm / Ø 30 h6
- Operating hours: 64,362 hours (as of 17. 06. 2024)
- Spindle hours: < 9,000 hours (spindle replaced august 2018)
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
