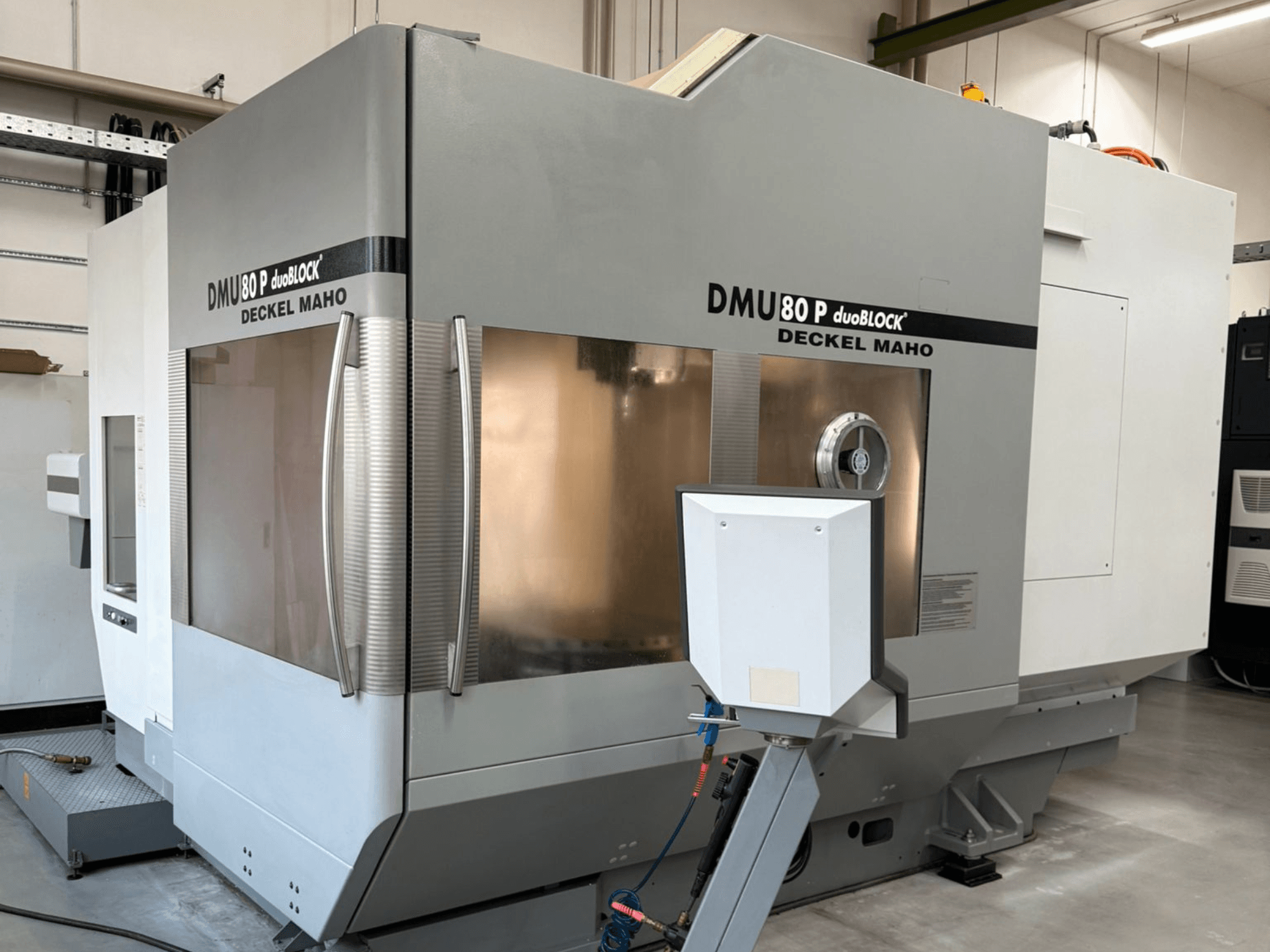

This 5-axis DECKEL MAHO DMU 80 P duoBLOCK was manufactured in 2008. It features a travel range of 800/800/800 mm, a spindle speed up to 12,000 rpm, and a SK 40 tool holder. Equipped with a Heidenhain iTNC 530 control, internal coolant supply at 40 bar, and a chip conveyor. Ideal for complex machining tasks. Contact us for more information about this machine.
Overview
- brand: DECKEL MAHO
- year: 2008
- MODEL: DMU 80 P duoBLOCK
- production hours: 7793
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DECKEL MAHO DMU 80 P duoBLOCK
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Height: 3460 mm
- Machine Length: 5830 mm
- Machine Weight: 13600 kg
Movement
- Number of Axes: 5
- X-axis Travel: 800 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 800 mm
Technical Specification
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
Additional Information
Tool magazine: 60 positions
CNC control: Heidenhain iTNC 530
Internal coolant supply: 40 bar
Rotating viewing window
Operating hours: 16,657 h
Spindle hours: 7,793 h
Weights
Base weight: approx. 600 kg
Crate weight: approx. 1,800–2,000 kg
Machine without tool magazine, with base: approx. 12,600 kg
Machine with chain magazine (40 tools) and base: approx. 13,600 kg
Chain magazine SK40/HSK63:
60 tool positions with base: approx. 1,700 kg
120 tool positions with base: approx. 2,100 kg
180 tool positions with base: approx. 3,600 kg
Chain magazine SK50/HSK100:
60 tool positions with base: approx. 1,850 kg
120 tool positions with base: approx. 2,300 kg
Dimensions
Machine without tool magazine: 4.25 × 2.75 × 3.00 m
Machine with chain magazine (40 tools): 5.83 × 3.70 × 3.46 m
Chain magazine (footprints):
60 tool positions: 3.84 × 1.50 × 3.10 m
120 SK 40 tool positions: 3.85 × 2.25 × 3.10 m
120 HSK-A63 tool positions: 4.44 × 1.90 × 3.10 m
120 SK 50 tool positions: 4.44 × 1.90 × 3.10 m
120 HSK-A100 tool positions: 4.51 × 2.25 × 3.10 m
180 tool positions: 3.84 × 1.50 × 3.10 m
Additional equipment
Chip conveyor
With pallet: approx. 600 kg
Dimensions: 4.00 × 1.10 × 1.70 m
Paper belt filter / Belt filter system
With pallet: approx. 850 kg
Dimensions: 2.36 × 1.42 × 1.72 m
Oil and emulsion mist separator
Heidenhain TS 649 touch probe
Cleaning gun
Transport suspension in crate
Approx. 100 kg
Dimensions: 0.80 × 0.80 × 0.58 m
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
