DECKEL MAHO - DMC 100VDE-MIL-DEC-1996-00006

Name: DECKEL MAHO DMC 100V
Brand: DECKEL MAHO
SKU: DE-MIL-DEC-1996-00006
Price: 16000 EUR
Availability: InStock

16,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DECKEL MAHO DMC 100V For Sale | gindumac.com

Show in original language

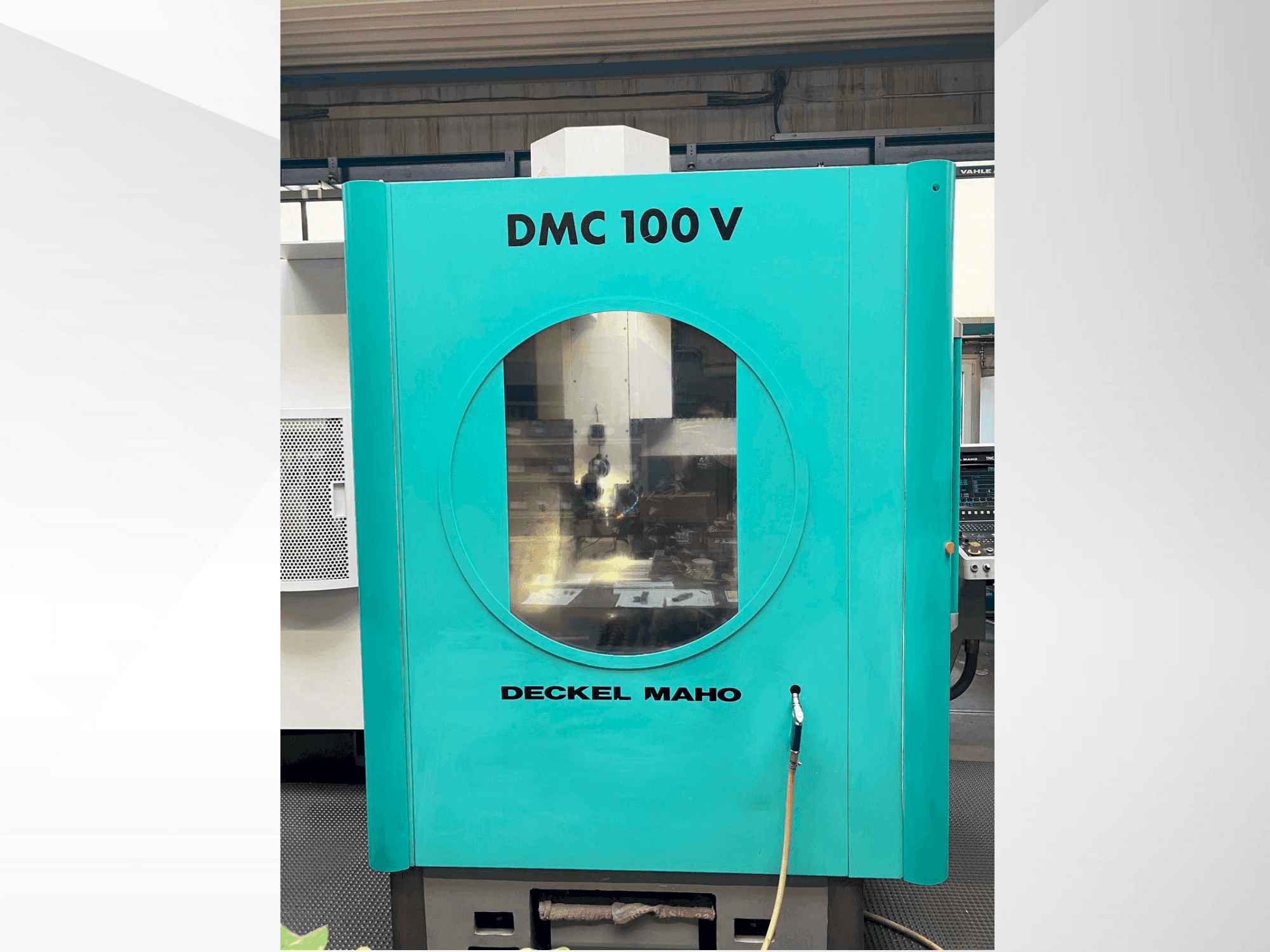

This 3-axis DECKEL MAHO DMC 100V was manufactured in 1996. It features a robust 10,000 kg weight, dimensions of 3.1 x 2.4 x 2.6 m, and a power consumption of 50 kVA. The machine offers a usable table area of 1250 x 800 mm and can handle a maximum table load of 1200 kg. It includes a tool magazine with 30 tools. If you are looking to get high-quality milling capabilities consider the DECKEL MAHO DMC 100V machine we have for sale. Contact us for more information.

Overview

brand: DECKEL MAHO
year: 1996
MODEL: DMC 100V
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - DECKEL MAHO DMC 100V

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Dimensions of machine (lxwxh): 3. 1 x 2. 4 x 2. 6 m / weight (kg): 10000 kg / power consumption: 50 kva / operating voltage: 400 v / frequency: 50 hz / compressed air pressure: 6 bar / noise emission: ≤ 75 db(a)
- - Usable table area: 1250 x 800 mm maximum table load: 1200 kg / max. Installation weight: 11000 kg
- - Number of tools: 30 / magazine type: variable position coding (vpc) / tool diameter (standard): max. Ø 80 mm / tool length (from spindle nose): max. 300 mm / tool weight: max. 12 kg
- - Input resolution: 0. 001 mm / feed rate (x, y, z axes): 1–10000 mm/min / rapid traverse (x, y axes): 30000 mm/min / rapid traverse (z axis): 20000 mm/min / x-axis travel: 1000 mm / y-axis travel: 800 mm / z-axis travel: 500 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
